ASSEMBLY INSTRUCTIONS

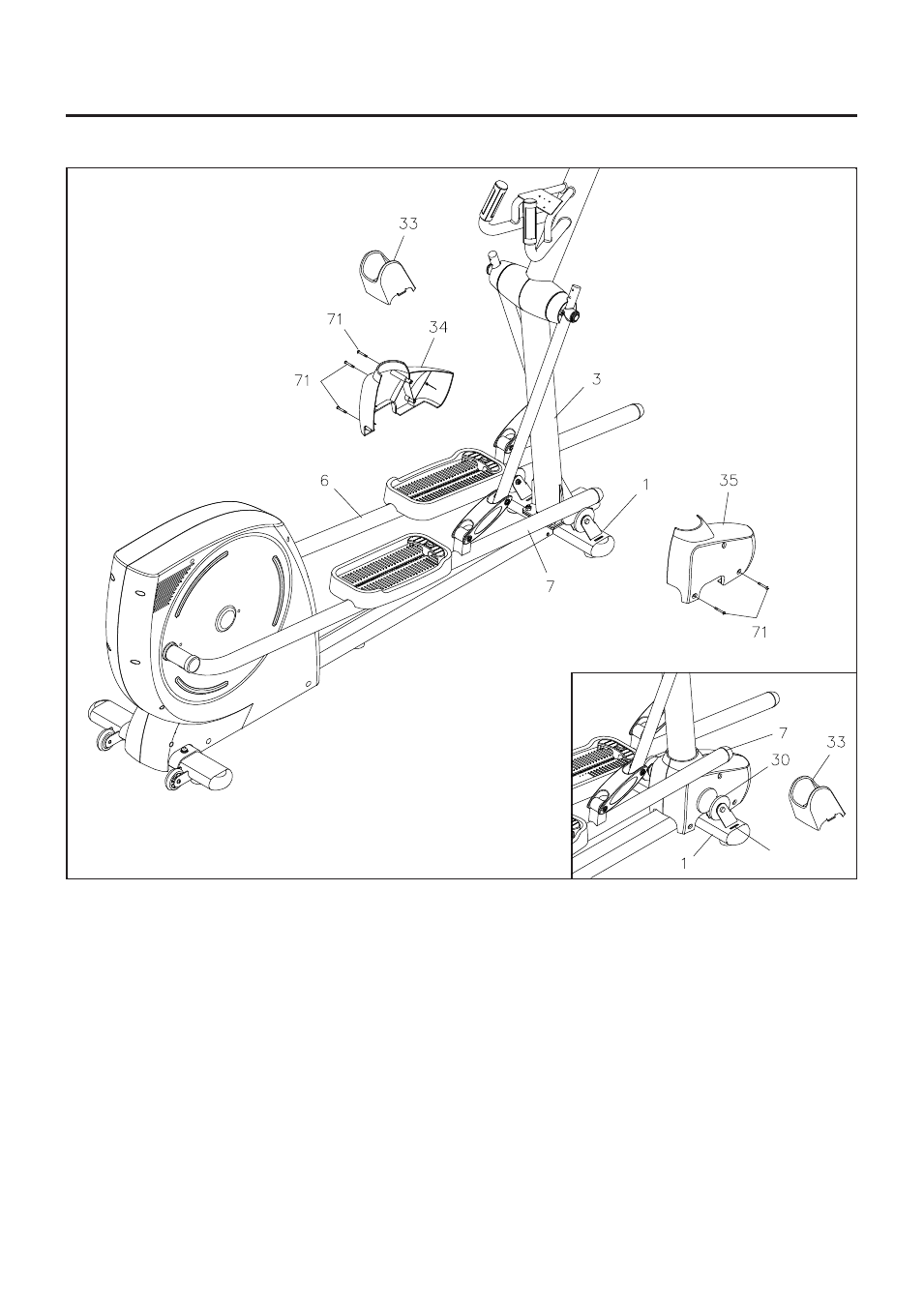

STEP 7

Place the LEFT NOSE COVER(34) and RIGHT NOSE COVER(35) at both sides of the UPRIGHT(3). Bolt
the nose covers together with the ROUND HEAD SCREW(M5x0.8x35mm)(71) on the top. Then slide the
nose covers down and attach them to the MAIN FRAME(1) with ROUND HEAD SCREW(M5x0.8x35mm)(71).

STEP 8

Refer to the inset drawing. Lift up the RIGHT PEDAL ARM(7) slightly. Then place a ROLLER COVER(33)
to cover the ROLLER(30). Snap the ROLLER COVER(33) into the slots at both sides of the ROLLER(30)
in the MAIN FRAME(1). Repeat on the left side.

Slot
