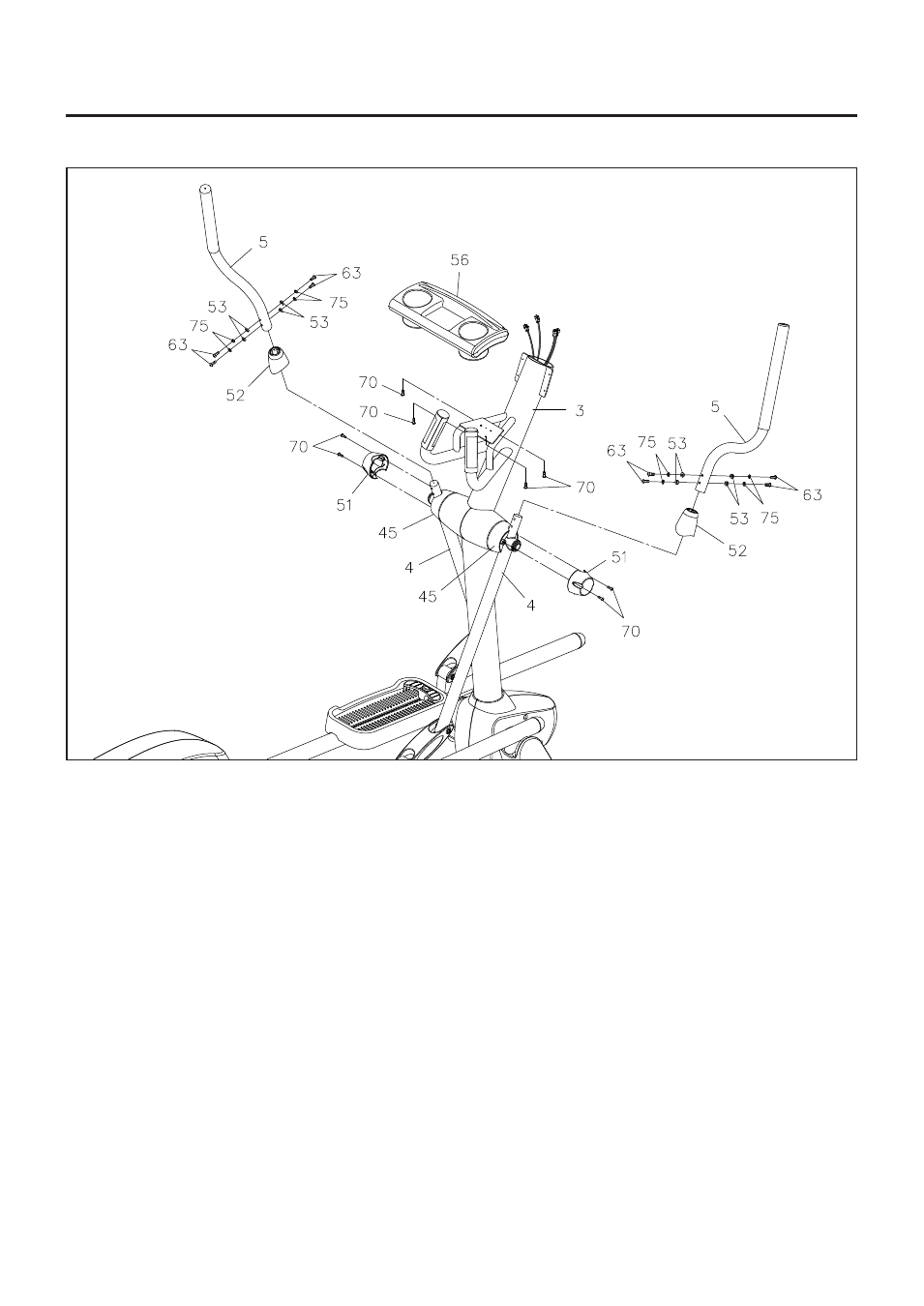

ASSEMBLY INSTRUCTIONS

STEP 9

Attach the TRAY(56) to the bracket on the UPRIGHT(3) and secure with ROUND HEAD SCREWS
(M5x0.8x15mm)(70).

STEP 10

Attach the PIVOT ENDCAPS(51) to the PIVOT CUFF BUSHINGS(45) at both sides with ROUND HEAD
SCREWS(M5x0.8x15mm)(70).

STEP 11

Slide the HANDLEBAR SLEEVE(52) onto the HANDLEBARS(5). Insert the HANDLEBARS(5) onto the
ROCKER ARMS(4) and secure with BUTTON HEAD BOLTS(M6x1x16mm)(63), CLAMP WASHERS(M6)
(53), and LOCK WASHERS(M6)(75). Slide the HANDLEBAR SLEEVE(52) down to cover the bolts on the
HANDLEBARS(5).
