Fan Speed Control with the EMC2102 Device
Revision 0.2 (09-17-07)
USER MANUAL
SMSC EMC2102
22
5.4.3
Register Change Summary
Table 5.3, "Register Change Summary for Experiment 4"
lists all register value changes from the
default cmf load to accomplish the tests.

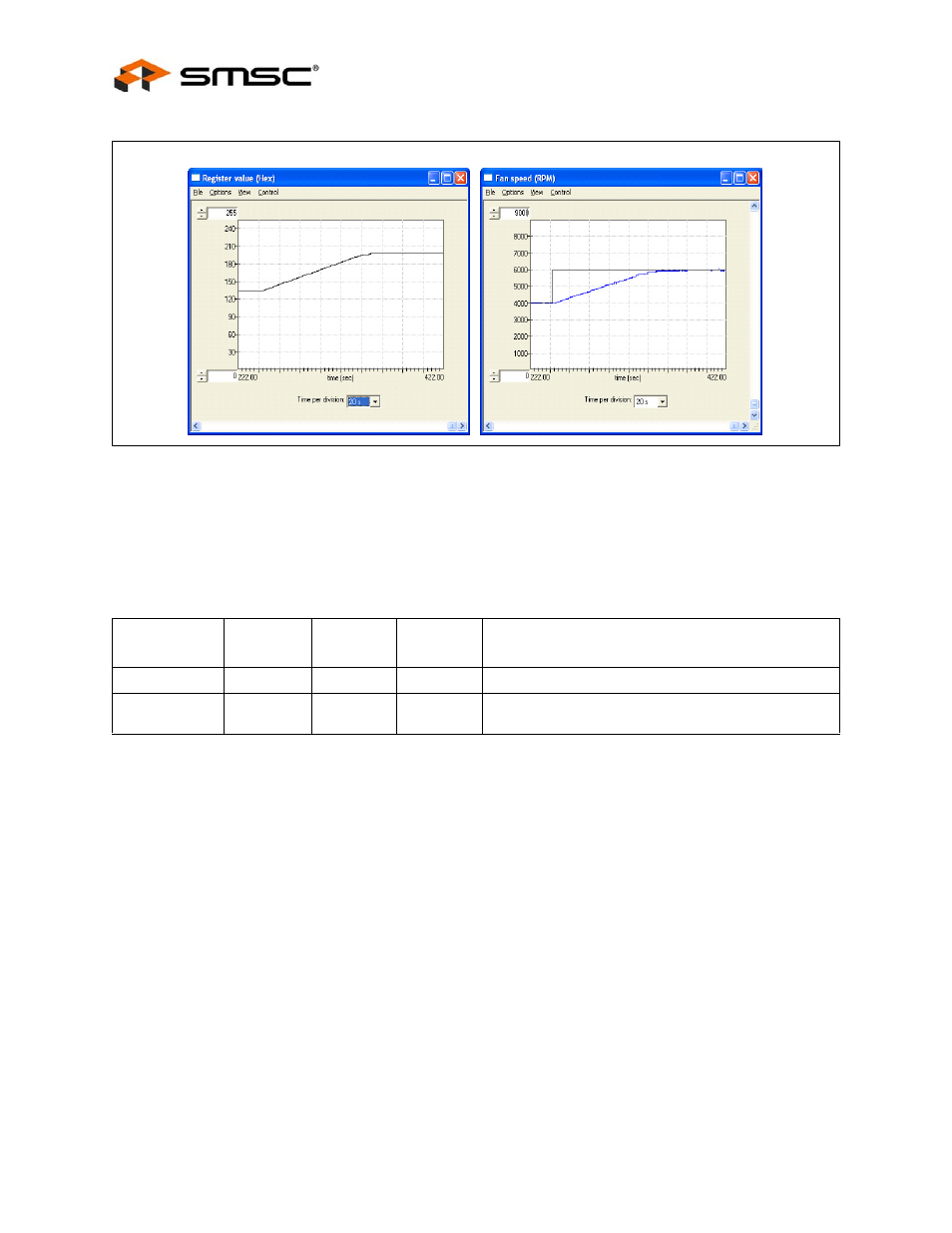

Figure 5.18 Exceptionally Slow Rate
Table 5.3 Register Change Summary for Experiment 4
REGISTER
NAME
ADDRESS
DEFAULT
VALUE
NEW
VALUE
COMMENT
FAN Step
54h
10h
01h
Demonstrate RRC long duration
Fan
Configuration
52h
CBh
C8h, CFh
Demonstrate min (C8h) and max (CFh) UPDATE rates
applied to RRC
