Fan Speed Control with the EMC2102 Device

SMSC EMC2102

USER MANUAL

Revision 0.2 (09-17-07)

15

5.2.4

Register Change Summary

Table 5.1, "Register Change Summary for Experiment 2"

lists all register value changes from the

default cmf load to accomplish the tests.

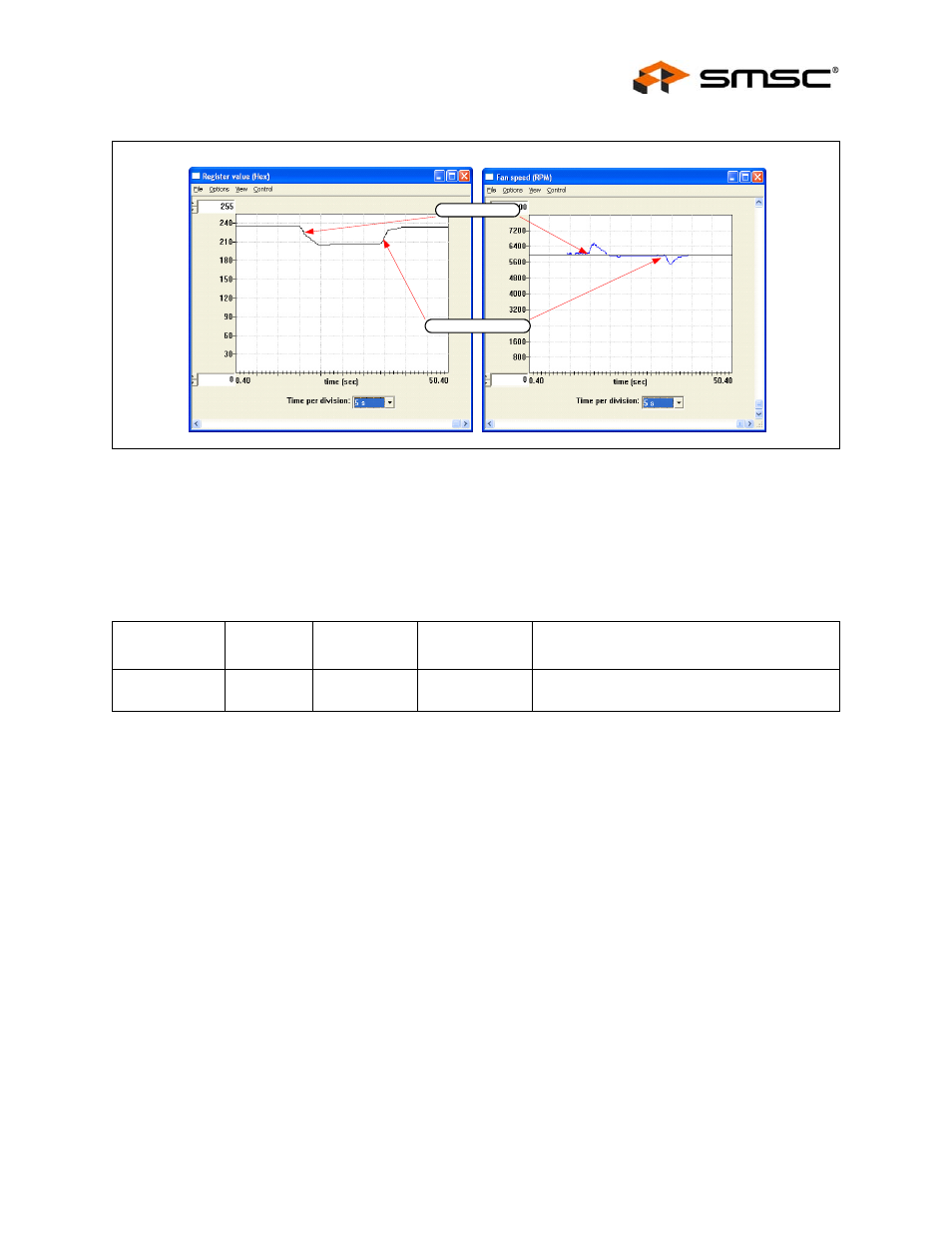

Figure 5.10 Effects of Loading

Table 5.1 Register Change Summary for Experiment 2

REGISTER

NAME

ADDRESS

DEFAULT

VALUE

NEW

VALUE

COMMENT

Fan
Configuration

52h

4Bh

(0100 1011b)

CBh

(1100 1011b)

Enables the RPM based closed-loop fan
control Algorithm

Fan was covered

The cover was removed
