-20-
M1102/M1103 16-Speed Drill Press
O
PE
R
AT
IO
N
S
OPERATIONS
General

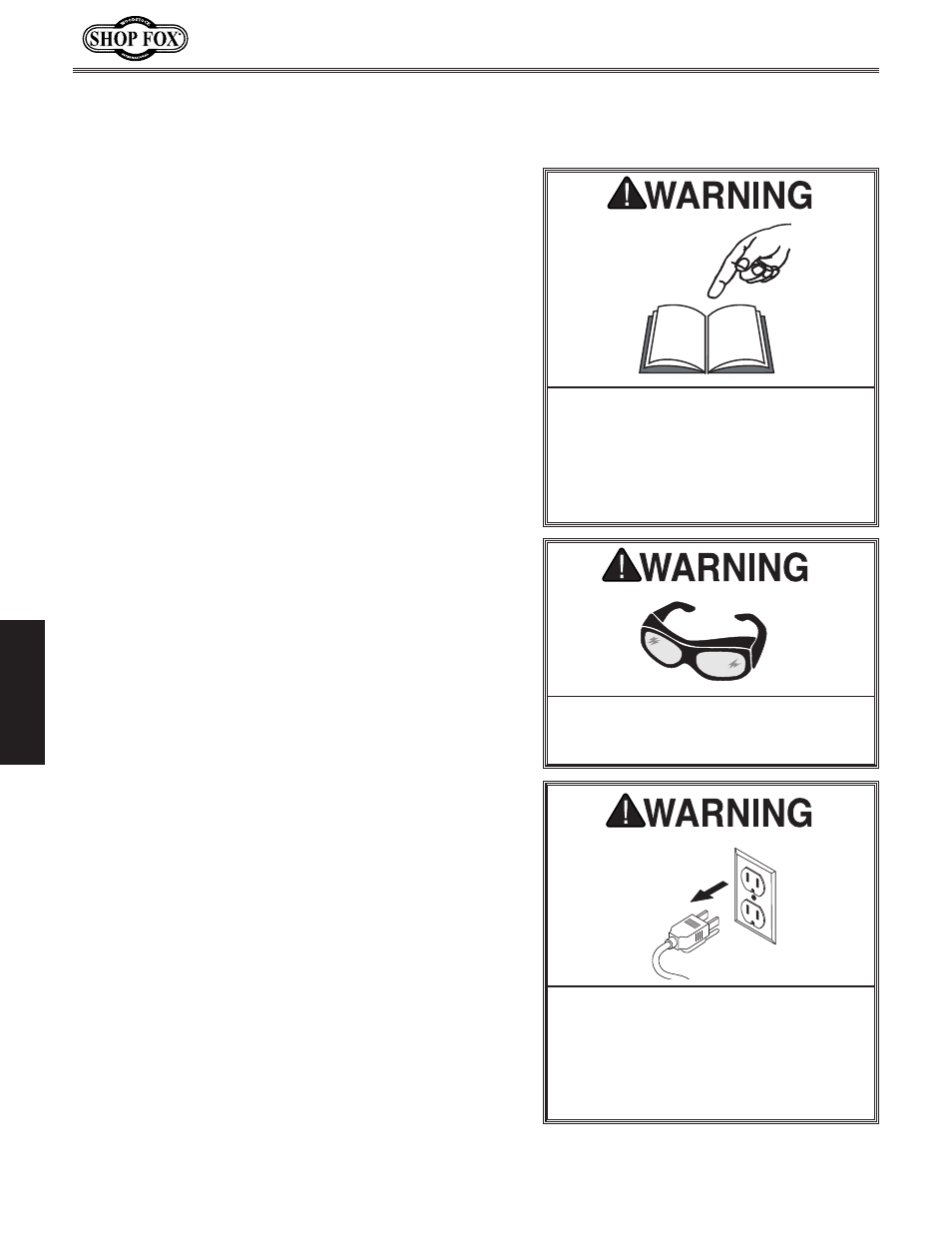

DO NOT investigate problems or adjust
the Drill Press while it is running.
Wait until the machine is turned OFF,
unplugged and all working parts
have come to a complete stop before
proceeding!
The Model M1102/M1103 will perform many types of
operations that are beyond the scope of this manual.
Many of these operations can be dangerous or deadly if
performed incorrectly.
The instructions in this section are written with the
understanding that the operator has the necessary
knowledge and skills to operate this machine. If at any
time you are experiencing difficulties performing any
operation, stop using the machine!
If you are an inexperienced operator, we strongly rec-
ommend that you read books, trade articles, or seek
training from an experienced Drill Press Operator before
performing any unfamiliar operations. Above all, your
safety should come first!
Always wear safety glasses when oper-
ating the Drill Press. Failure to comply
may result in serious personal injury.
READ and understand this entire instruc-
tion manual before using this machine.
Serious personal injury may occur if
safety and operational information is not
understood and followed. DO NOT risk
your safety by not reading!
Installing & Removing
Drill Bits
Any drill bit you install in the chuck must be tight
enough that it will not come loose during operation.
To install a drill bit, do these steps:
1. DISCONNECT THE DRILL PRESS FROM POWER!
2. Using the chuck key, open the drill chuck wide
enough to accept the shank of the drill bit.
3. Insert the drill bit as far as possible into the chuck
WITHOUT allowing the chuck jaws to touch the
fluted portion of the bit, and hand tighten the
chuck. Note: Make sure small bits are not trapped
between the edges of two jaws; if they are, rein-
stall the drill bit or it will not be secure enough to
use for drilling.
4. Final tighten the drill bit with the chuck key.
To remove a drill bit, do these steps:
1. DISCONNECT THE DRILL PRESS FROM POWER!
2. Use the chuck key to open the drill chuck, and
catch the drill bit with a rag to protect your hands.
