Specifi cations
SPECIFICATIONS

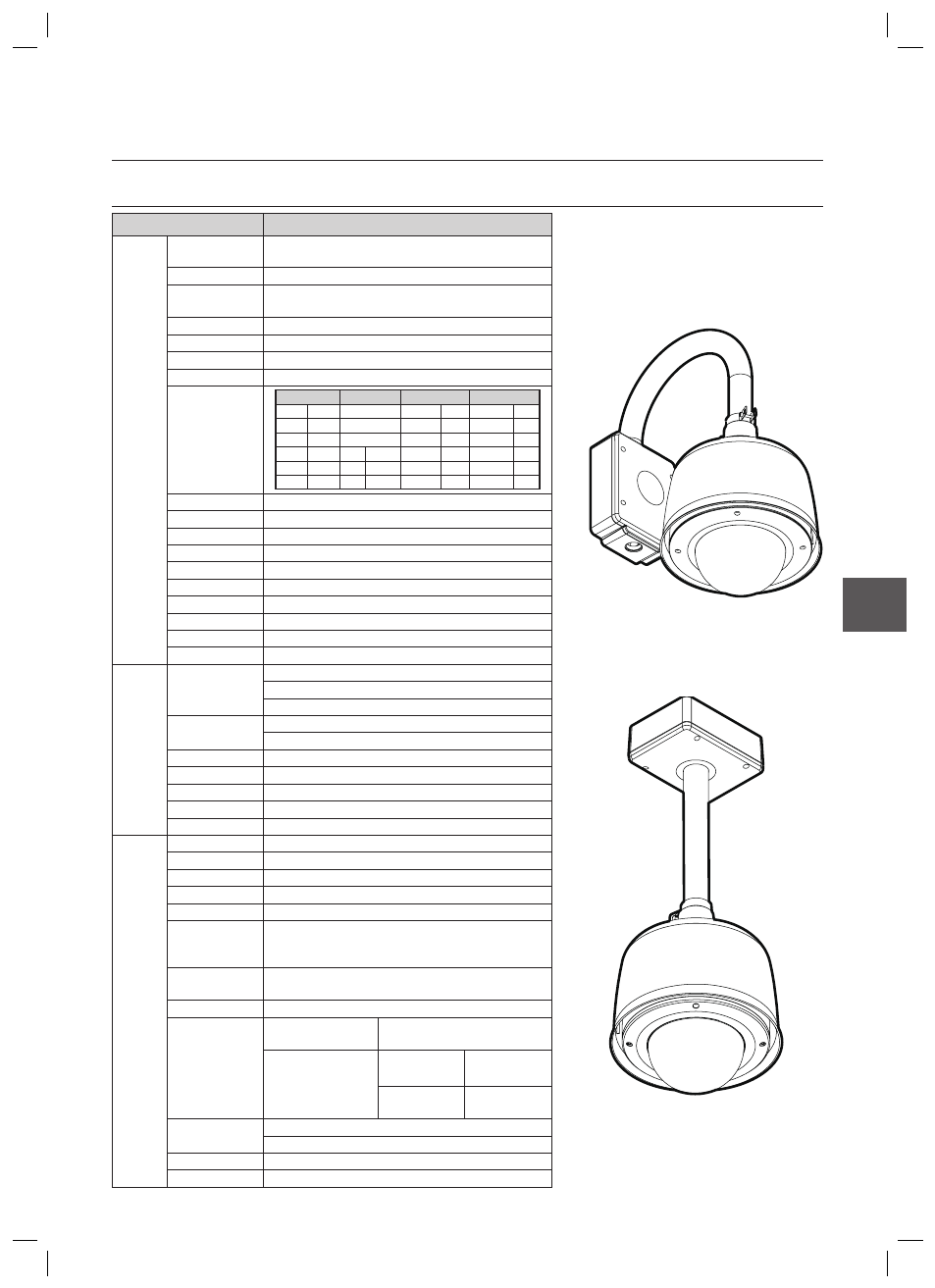

Appearance
Wall Mount
Ceiling Mount
❖
•
•
Item Details
Camera
Broadcasting
Type SCC-C7478N : NTSC Standard Color System
SCC-C7478P : PAL Standard Color System
CCD EX-View HAD CCD
Effective Pixels
SCC-C7478N : 768(H) × 494(V)
SCC-C7478P : 752(H) × 582(V)
Horizontal Resolution Color : 540 / BW : 570 TV Line
S/N Ratio Approx. 50 dB
Zoom x36 Optical Zoom, x12 Digital Zoom
Focal length f=3.4mm(Wide) ~ 122.4mm(Tele), F1.6 ~ F4.5
Min. illumination
illumination Sens-up Color B/W (S/W)
50 IRE No 1.40 Lux 0.15000 Lux
30 IRE No 0.84 Lux 0.09000 Lux
15 IRE No 0.42 Lux 0.04500 Lux
50 IRE 64 times 0.0219 Lux 0.00230 Lux
30 IRE 64 times 0.0131 Lux 0.00140 Lux
15 IRE 64 times 0.0066 Lux 0.00070 Lux
Signal Output Composite Video Out : 1.0 Vp-p 75 ohms/BNC
Day & Night Auto / Day / Night(ICR)
Focus Auto / Manual / SemiAuto
Iris Auto / Manual
Shutter Speed X64 ~ X2, 1/60 ~ 1/10,000s
AGC Auto/Manual(-3 ~ 28dB)
White Balance Auto / Manual(Red, Blue Gain Adjustable)
WDR, BLC WDR On/Off, BLC On/Off
Flickerless Selectable
Privacy Zone 8 Area
Pan/Tilt
Range
Pan : 360°(Endless)
Tilt : 180°
Preset : 360°/sec
Pan/Tilt Speed
Manual : 0.05 ~ 200°/sec (Inversely Proportional to Zoom)
Auto Pan : 1 ~ 180°/sec
Preset 127 Preset (Label, Camera Image Setting)
Pattern 4 Pattern, 1000 Commands(About 5 Minute)/Pattern
Auto Pan 8 Auto Pan
Scan 8 Scan (20 action entities per Scan)
Other Functions Auto Flip, Auto Parking, Power Up Action etc.
General
Communication RS-485
Protocol Auto, Pelco-D, Pelco-P, Samsung selectable
Privacy Zone 8 Zone
Alarm Input 8 Input
Alarm Output 4 Relay Output
OSD
Menu / PTZ Information etc
Support 7 Languages: [ENGLISH /ESPAÑOL /FRANÇAIS
/DEUTSCH/ITALIANO /РУССКИЙ /PORTUGUÊS]
Power Input
SCC-C7478N : AC 24V ± 10% (60Hz ± 0.3Hz)
SCC-C7478P : AC 24V ± 10% (50Hz ± 0.3Hz)
Power Consumption 24W(Heater Off) / 57W(Heater On)
Dimension
Camera
(Camera only)
(Ш Ч H) : 259 × 265.7 (mm)
: 10.2 × 10.46 (inch)
Camera
(With a mount
bracket)
Wall Mount Type
(W X H X D)
:259X404.5X 551.7 (mm)
:10.2X15.9X21.7 (inch)
Ceiling Mount Type
(Ø X H)
: 259X648.7 (mm)
: 10.2X25.54 (inch)
Weight
Wall Mount Type : About 6 kgf (13.2 LB)
Ceiling Mount Type : About 5.8 Kgf (12.8 LB)
Operating Temp. -45°C ~ 50°C(-49°F ~ 122°F)
Lives of Main Parts Slip Ring : Rotated 10,000,000 times
✻ Specifi cations of this product can be subjected to change without notice.
✻ ✻ Check the rated voltage and current capacity of power supply carefully.
G
