10 – 36x SMART DOME CAMERA
Installation

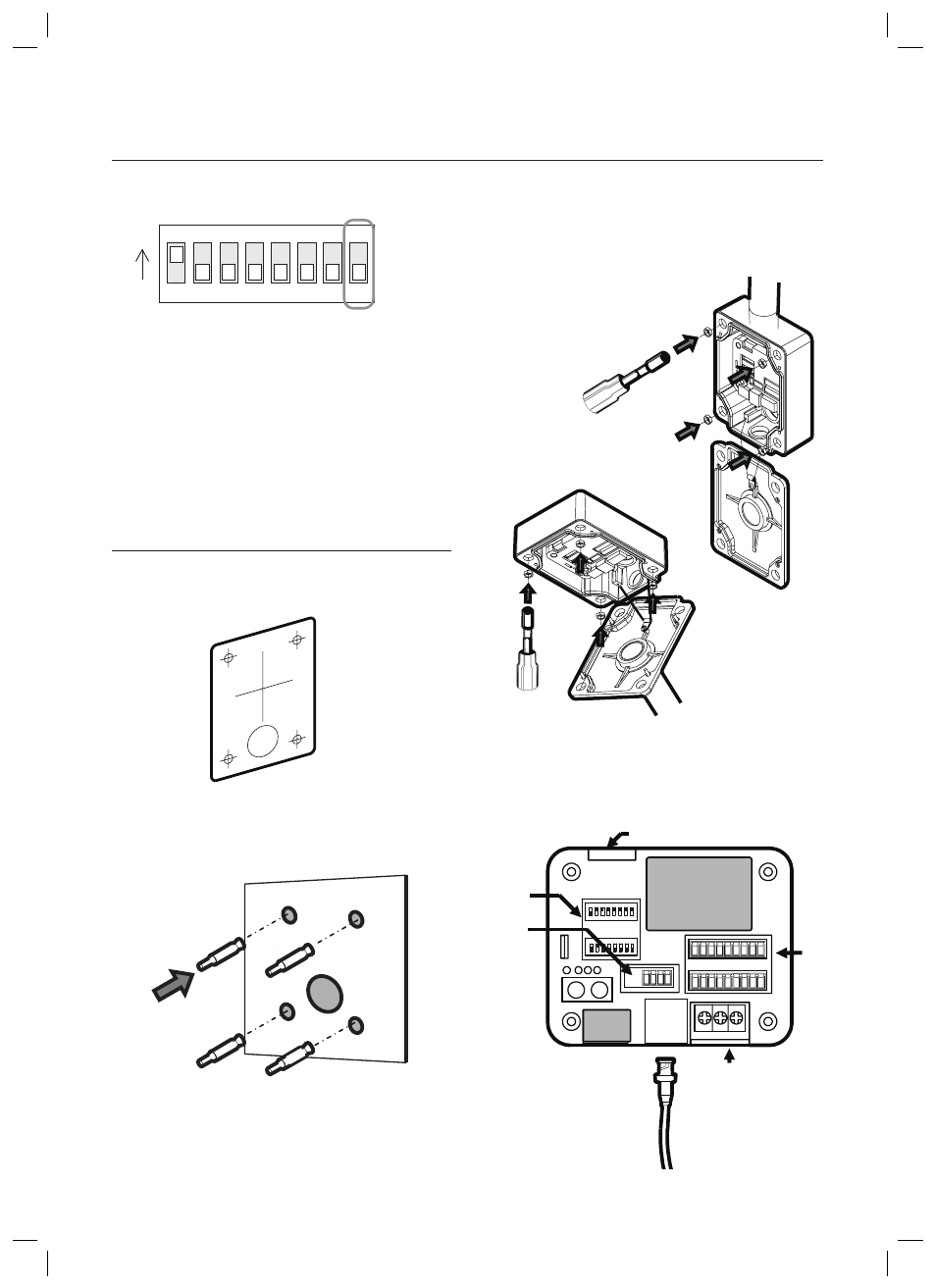

RS-485 Termination Resistor
Pin 8 is used for ON/OFF of RS-485 Termination.
Normally, it must be OFF state. Especially when
you have trouble with long Daisy chain style
connection, turn ON this termination switch of last
camera.
Pin 8 RS-485 Termination Resistor (On/Off)
INSTALLATION USING MOUNT
BRACKET
① Using the paper template, mark the holes on the
wall.
② After drilling the holes, fi x the four anchor bolts
into the holes.
❖
•
–
③ After locating the wall mount bracket on the
anchor bolts properly. Tighten the nuts for
anchor bolts
④ Connect cables to terminal blocks and BNC in
the inner box of junction box. See the cabling in
the next section.
1 2 3 4 5 6
ON
ON
7 8
P O W ER
A LA R M
B N C
V ID E O
C onnector to the dom e cam era
Protocol,
Address DIP
RS-485
