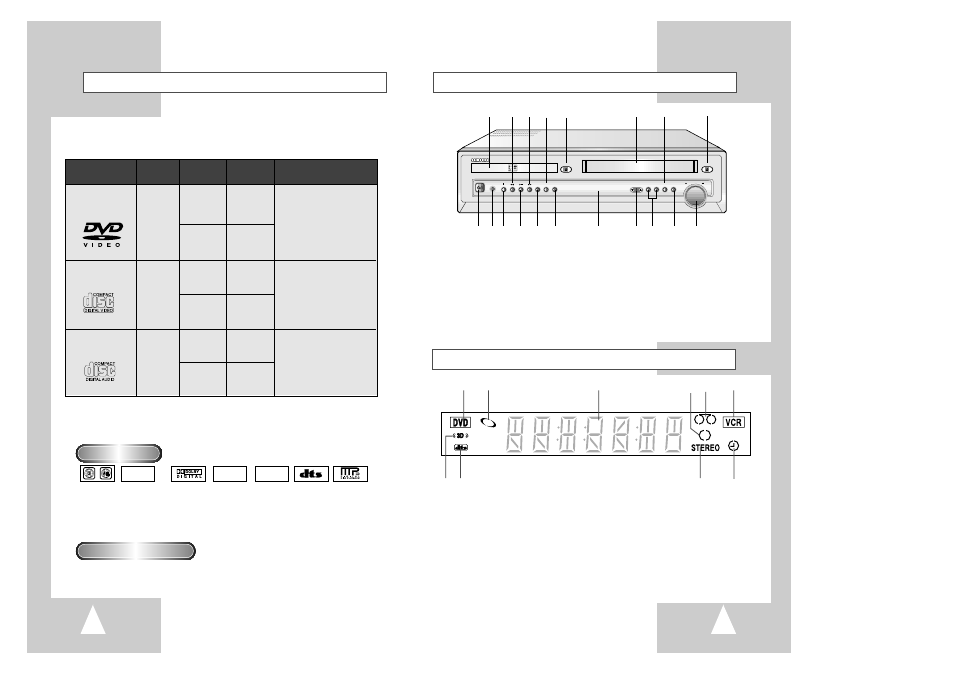

Front Panel Overview
1 DVD DECK
2 REWIND/REV
3 FAST-FORWARD/FWD
4 SOUND MODE
5 DVD OPEN/CLOSE
6 VCR DECK
7 FM/AM SELECT
8 VCR EJECT
9 POWER
10 HEADPHONE JACK
11 STOP
12 PLAY/PAUSE
13 RECORD
14 SOUND EFFECT
15 FRONT PANEL DISPLAY
16 CHANNEL / ❷
17 DVD-VCR SELECT
18 INPUT SELECT
19 VOLUME DIAL
*With the Volume Dial, you can adjust the volume on
the speakers or Headphone.
OPEN/CLOSE
CHANNEL DVD VCR FM/AM INPUT
EJECT
PHONES REC S.MODE S.EFFECT VOL
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17 18 19
Disc Type and Characteristics
1 2 3 4 5 6
7 8 9 10
1 The DVD Deck is active.
2 DVD or CD media is loaded.
3 The time, counter position, time remaining or current
deck status is indicated.
4 Recording is in progress (normal and timer).
5 VHS videotape is loaded.
6 The VCR Deck is active.
7 3D Sound is active.
8 A DVD with a DTS soundtrack is loaded.
9 The Hi-Fi track of a VHS videotape is playing or
the current TV program or video is broadcast in
Stereo.
10 Timer Recording is in progress. When it blinks
an error has occurred. When recording is on, it
displays without the clock hands. It also blinks
when you pause the VCR.
Front Panel Display
Disc Markings
Play Region Number
This DVD player is capable of playing the following types of discs with the corresponding logos:
DIGITAL
SOUND STEREO NTSC
• Play
Region
Number
• NTSC broadcast
system in U.S.A,
Canada, Korea,
Japan, etc.
• Dolby
Digital disc
• Stereo disc • Digital
Audio disc
• DTS disc • MP3 disc
Both the DVD player and the discs are coded by region. These regional codes must
match in order for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is described on the rear panel of the player.
* Please use a 650MB/74Min, 700MB/80Min. CD-R media.
* Do not use a 800MB or greater CD-R media, as it may not play back.
5"
3 1/2 "
Single-sided
240 min.
Double-sided
480 min.
Single-sided
80 min.
Double-sided
160 min.
Audio
+
Video
Audio
+
Video
Audio
• CD is recorded as a
Digital Signal with better
audio quality, less
distortion and less
deterioration of audio
quality over time.
• Video with CD sound, VHS
quality & MPEG-1
compression technology.
• DVD contains excellent sound
and video due to Dolby Digital
and MPEG-2 system.
• Various screen and audio
functions can be easily
selected through the on-
screen menu.
VIDEO-CD
AUDIO-CD
5"
3 1/2 "
74 min.
20 min.
5"
3 1/2 "
74 min.
20 min.
Disc Types
(Logos)
Recording
Types
Disc Size Max.
Playing Time Characteristics
DVD
• ”DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc.
• Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.
