Samsung CHT-420 - Manual (Page 31)

57 56

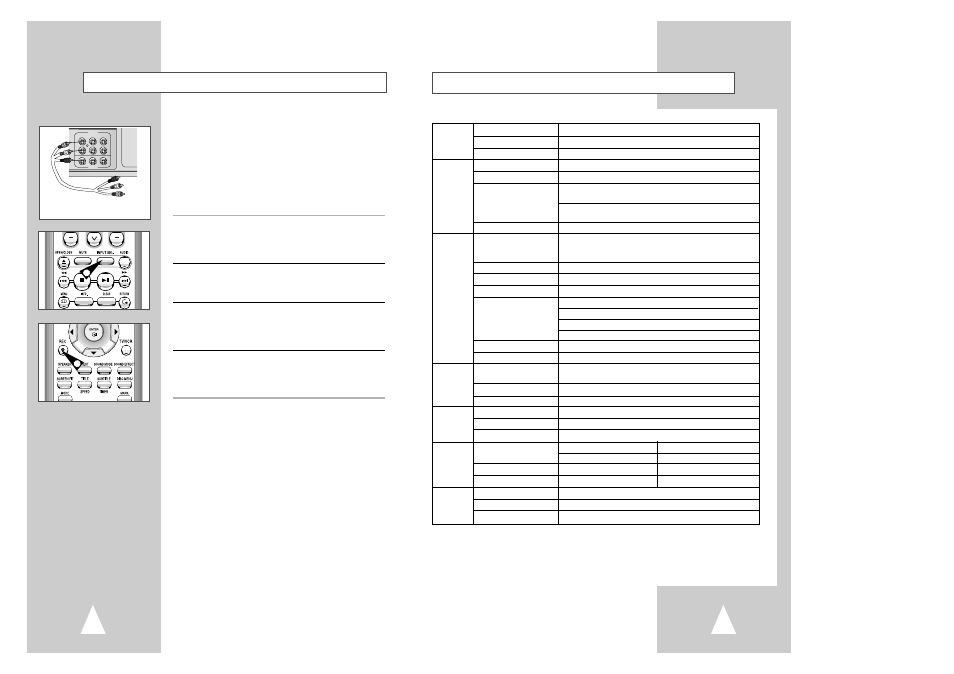

Technical Specifications
AUDIO 2 Stereo audio inputs, RCA Connector, -8dbm, 47K Ω ,
Inputs VIDEO 2 Composite video inputs, RCA Connector, 75 Ω , 1Vp-p
RF Antenna or CATV Input, F-Connector, 75 Ω
AUDIO 1 Stereo audio outputs, RCA Connector, -8dbm, 1.5K Ω
VIDEO 1 Composite video output, RCA Connector, 75 Ω , 1Vp-p
Outputs VIDEO (DVD only) 1 S-Video output, S-Connector, 75 Ω , Y=1.0Vp-p,
C=0.286Vp-p
1 Component video output, 75 Ω , Y=1.0Vp-p, Pb=0.7Vp-p,
Pr=0.7Vp-p
RF Channel 3 or 4
VIDEO SYSTEM 1/2-inch VHS system, 4 rotary head helical scanning;
FM azimuth luminance;chrominance: converted sub system
phase shift
AUDIO TRACK Normal: 1 track; Hi-Fi: 2 track
PLAY/RECORD TIME T-180 tape: SP 3 hours, SLP 9 hours
VCR FF/REW TIME T-120 tape: <2 minutes
HEADS Video: DA 4 rotary
Audio: 2 rotary heads (Hi-Fi); 1 stationary head (Linear)
Control: 1 stationary head
Erase: 1 full track, 1 audio track
WOW & FLUTTER Less than 0.005% (Hi-Fi)
FREQ. RESPONSE 20-20,000 Hz (Hi-Fi)
DISC COMPATIBILITY CD, CD-R, CD-R/W, DVD-Video, CD-Digital Audio (5” and 3.5”),
MP3 files on CD-ROM
DVD S/N RATIO 110 dB
DYNAMIC RANGE 100 dB
POWER REQUIREMENT 220~240V AC, 60 Hz
SYSTEM ENVIRONMENT 41-104ºF (5-40ºC); 10%-75% humidity
WEIGHT 13.0 lbs (Combo) + 22.5 lbs (SPEAKER) = 35.5 lbs
FM AM
RECEIVER SENSITIVITY 15 dB 64 dB
S/N RATIO 60 dB 35 dB
THD 0.5 % 2%
FREQ. RESPONSE 20 Hz ~ 20 kHz
AMP S/N RATIO 75 dB
CHANNEL SEPERATION 50 dB
Connecting Other Video Equipment
You can connect a wide variety of audio/video equipment to your
DVD-VCR, including:
• An additional VCR
• Laser Disc Player
• DVD Player
• Camcorder
• Satellite Receiver
• Video Game
Since all of these devices use essentially the same connections, they
will be described together.
1 Connect Device to DVD-VCR
Connect RCA cables from the Audio and Video Line Outputs of
your external device to the Audio and Video Line Inputs on the
front or back panel of the DVD-VCR.
2 Watch Device
Play your external device, then press the INPUT SEL. button until
the playback from LINE1, LINE2 appears on your TV screen.
3 Record Device
First, play your external device. Next, press the INPUT SEL. button
until the playback from LINE1, LINE2 appears on your TV screen.
Then press Record on the VCR deck.
4 Timer Record From Device
Select LINE1 (L1), LINE2 (L2) as your record source in the Timer
Record menu. All other Timer Record settings should be set in the
usual manner.
2
3
VIDEO
AUDIO LINE
IN 1 LINE
IN 2 LINE
OUT
R
L
TV Audio/Video Outputs of
External Device
