Connecting to a Computer or a Network
78
Connecting to a
Computer or a Network
To connect to the computer, use a commercially
available network cable (cross cable).
To connect to the network, use a commercially available network
cable (straight cable).

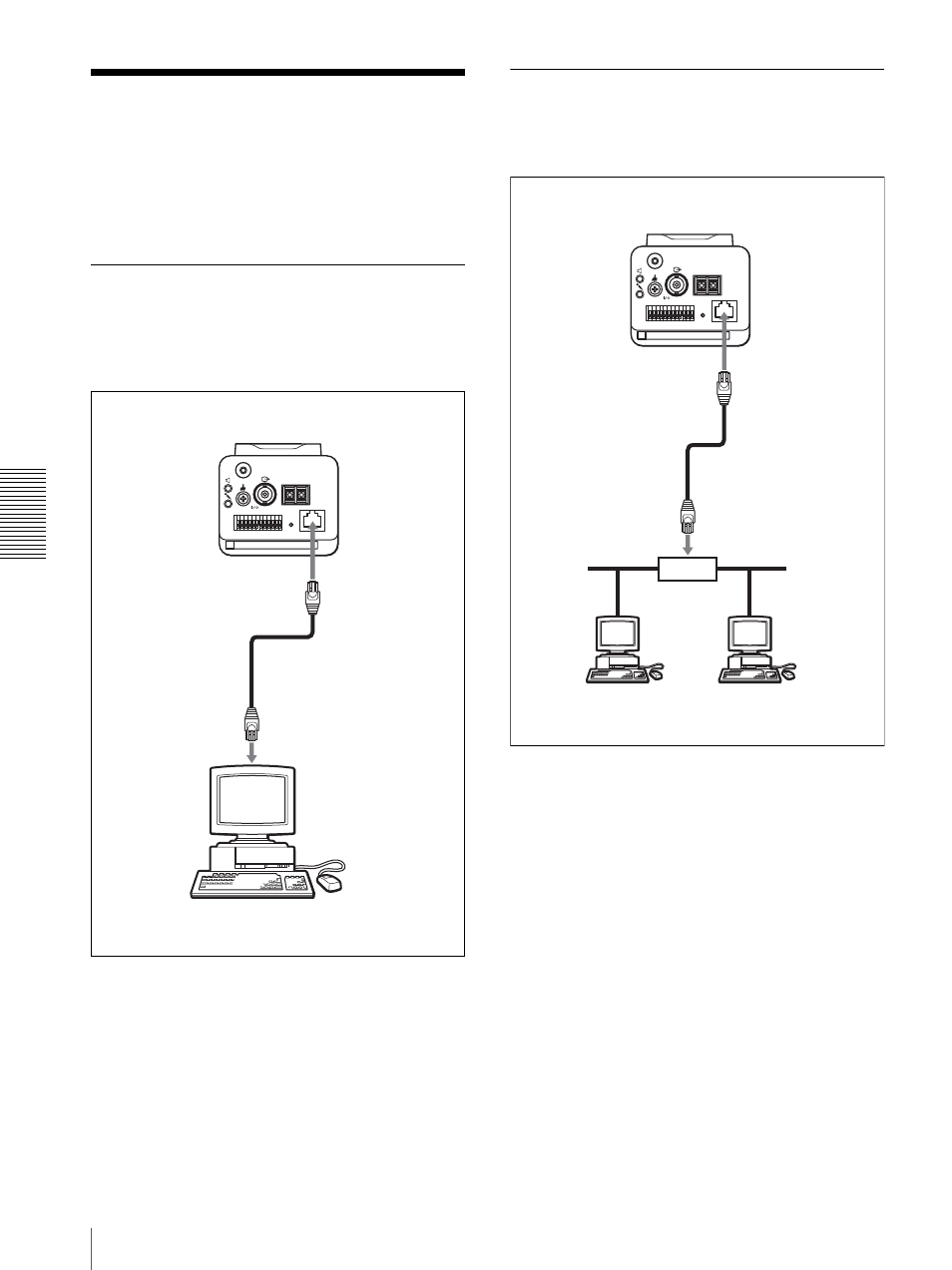

Connecting the Camera to a
Computer
Using a commercially available network cable (cross),
connect the LAN port on the camera to the network
connector of a computer.
Connecting the Camera to a Local
Network
Using a commercially available network cable, connect
the LAN port on the camera to a hub in the network.
1
2
LAN
ñ
+
DC 12V
AC 24V
SEE INSTRUCTION MANUAL
CLASS 2 WIRING
10
11
12
9 8 7 6 5 4 3 2 1
SNC-CS50N/CS50P (rear)
Network cable
(cross, not supplied)
Network
connector
Computer
LAN
1
2
LAN
ñ
+
DC 12V
AC 24V
SEE INSTRUCTION MANUAL
CLASS 2 WIRING
10
11
12
9 8 7 6 5 4 3 2 1
SNC-CS50N/CS50P (rear)
Network cable
(straight, not
supplied)
Hub
Network
10BASE-T/
100BASE-TX
LAN
