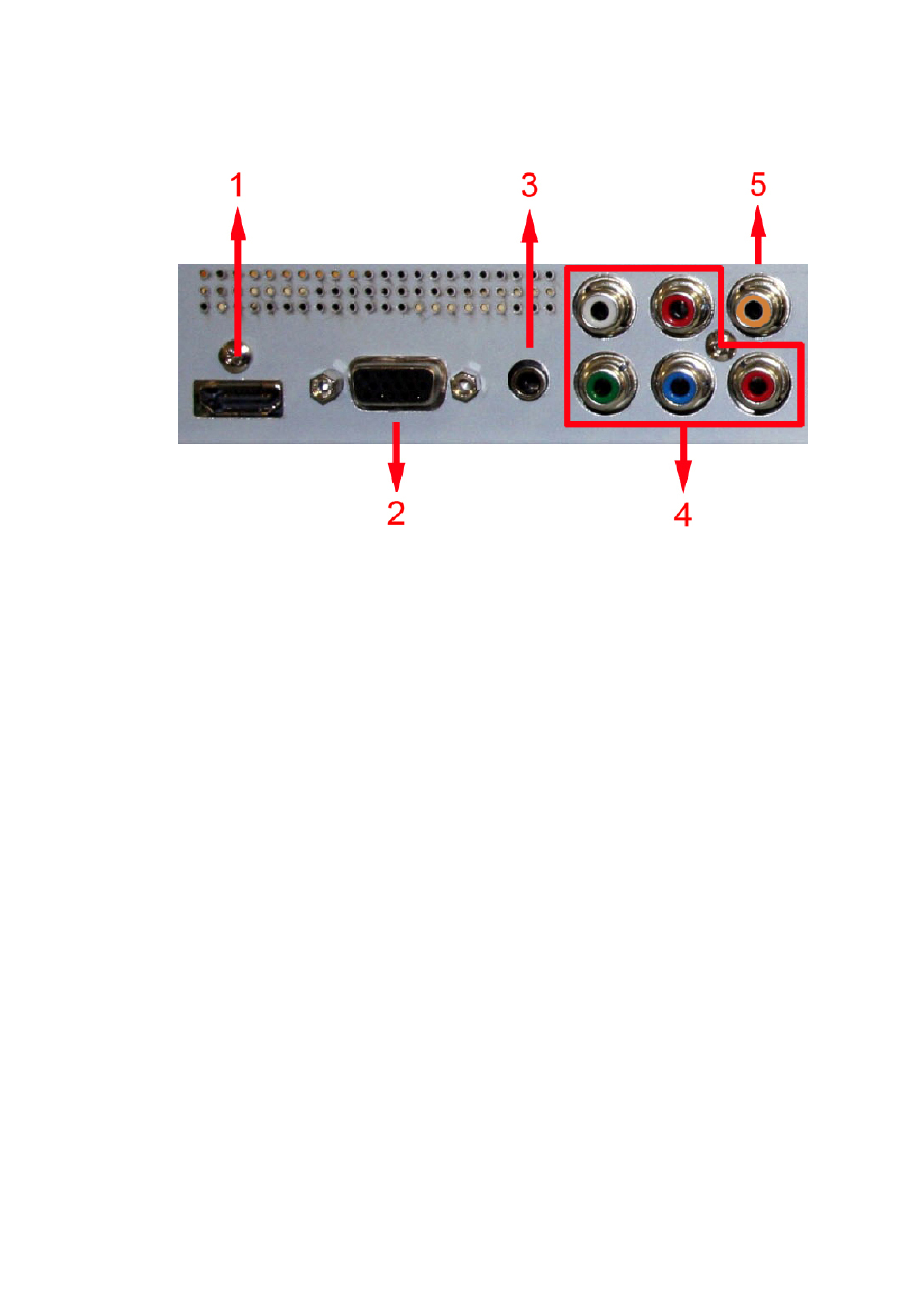

Rear View Connections
The following descriptions are for connections from left to right.
1. HDMI – HDMI connects to devices that use HDMI cable, such as Blu-ray or
HD DVD player, or HD cable / satellite set-top box. This connection port
receives pure digital audio and high definition signal through one single cable.
This port also can accept a HDCP video device for video.
2. VGA - This connection port connects to a PC for video using VGA cable. Be
sure to connect your audio cable to the VGA Stereo input if you want sound
out of VGA video source.
3. VGA STEREO INPUT - This connection port is for people who want to
provide audio to the TV when using a PC or a DVI video device. The sources
use 3.5mm mini-jack audio cable to provide audio for a HDCP enabled DVI
video device or PCs with VGA connection.
4. YPbPr – This connection port is for DVD players, or satellite / cable set-top
boxes that use component cables. From left to right, connect green, blue,
and red for video, and then connect white for left channel audio, and red for
right channel audio.
5. LINE OUT - This connection port is used for sending out digital audio signals
to digital surround sound receivers. The orange (COAXIAL SPDIF OUT)
connector with the group COMPONENT sends out either bit-stream or PCM
digital sound signal to a home theater receiver with digital input.
