7 Troubleshooting
LED Displays
Once the driver has been installed, the adapter is operational. The current status is indicated
by the LEDs.

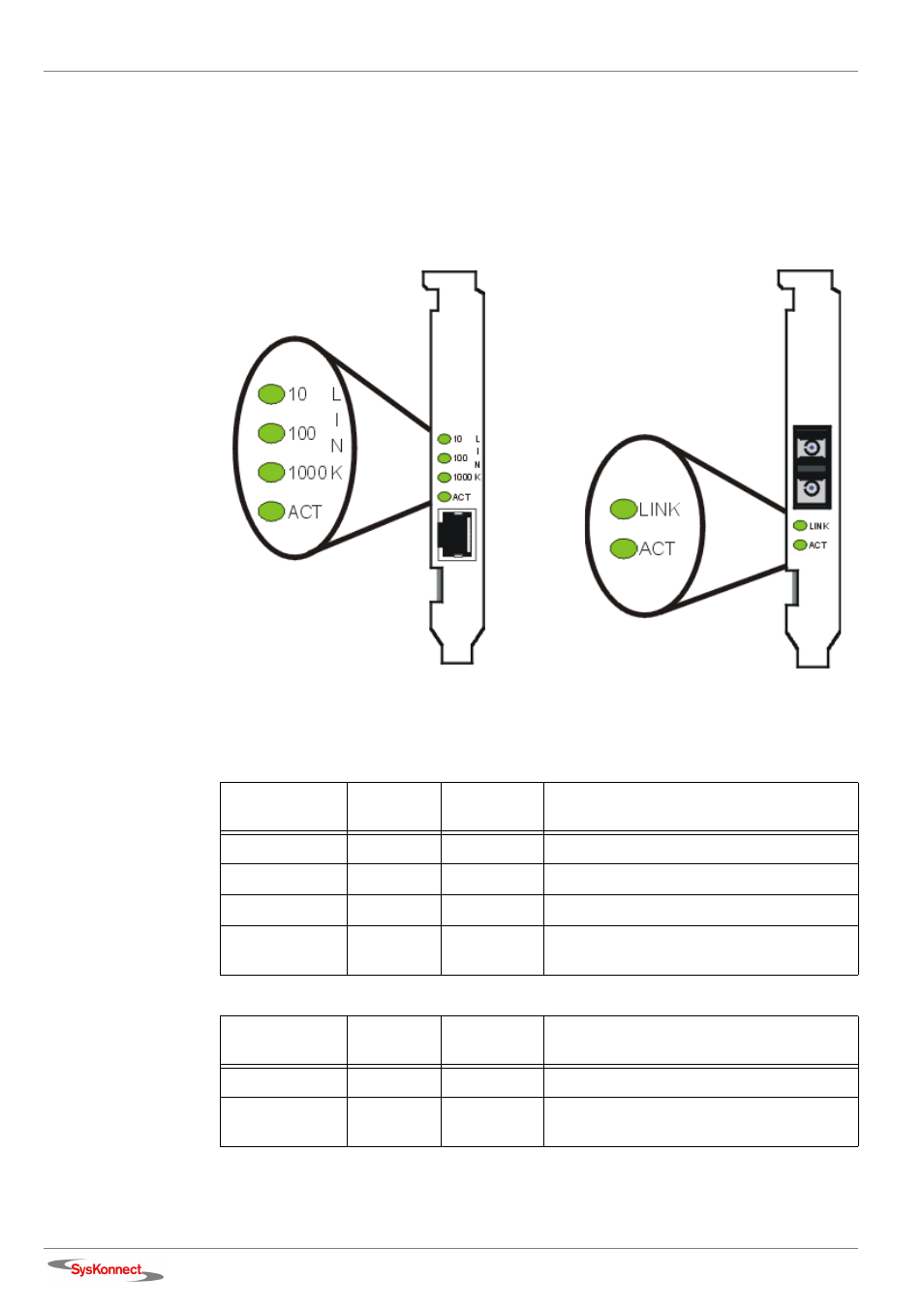

Figure 13. Location of the LEDs
The LEDs for the copper adapter have the following meaning:
The LEDs for the fiber adapter have the following meaning:
Marking on
bracket
Color
Status
Description
10
green
ON/OFF
Link up/down, speed 10 Mbit/s
100
green
ON/OFF
Link up/down, speed 100 Mbit/s
1000
green
ON/OFF
Link up/down, speed 1000 Mbit/s
ACT
green
ON/OFF
Receiving/Transmitting /
Not Receiving / Not Transmitting
Marking on
bracket
Color
Status
Description
LINK
green
ON/OFF
Link up/down, speed 1000 Mbit/s
ACT
green
ON/OFF
Receiving/Transmitting /
Not Receiving / Not Transmitting
Copper adapter Fiber adapter
