SysKonnect SK-98xx V2.0 Gigabit Ethernet Adapter
Additional Functions of the Diagnostics Program 49
Additional Functions of the Diagnostics Pro-
gram
Checking Other Displays and Data
In addition to performing the three network adapter tests, the diagnostics program can also
read out network adapter-specific data that may be useful for pinpointing the causes of failure.
You can
•
read sensor data,
• read configuration data,
• read and write VPD data,
• read and write Flash EPROM data.
Main Program
To start the main program, proceed as follows:
1. Boot to DOS.
Wait for the prompt.
2. Insert the installation CD-ROM into the CD-ROM drive of the computer in which the net-
work adapter is installed.
3. Type the letter of your CD-ROM drive (e.g. D:)
4. Go to the appropriate product directory.
5. Type
sk98diag.
6. Press .
The main menu will be displayed:

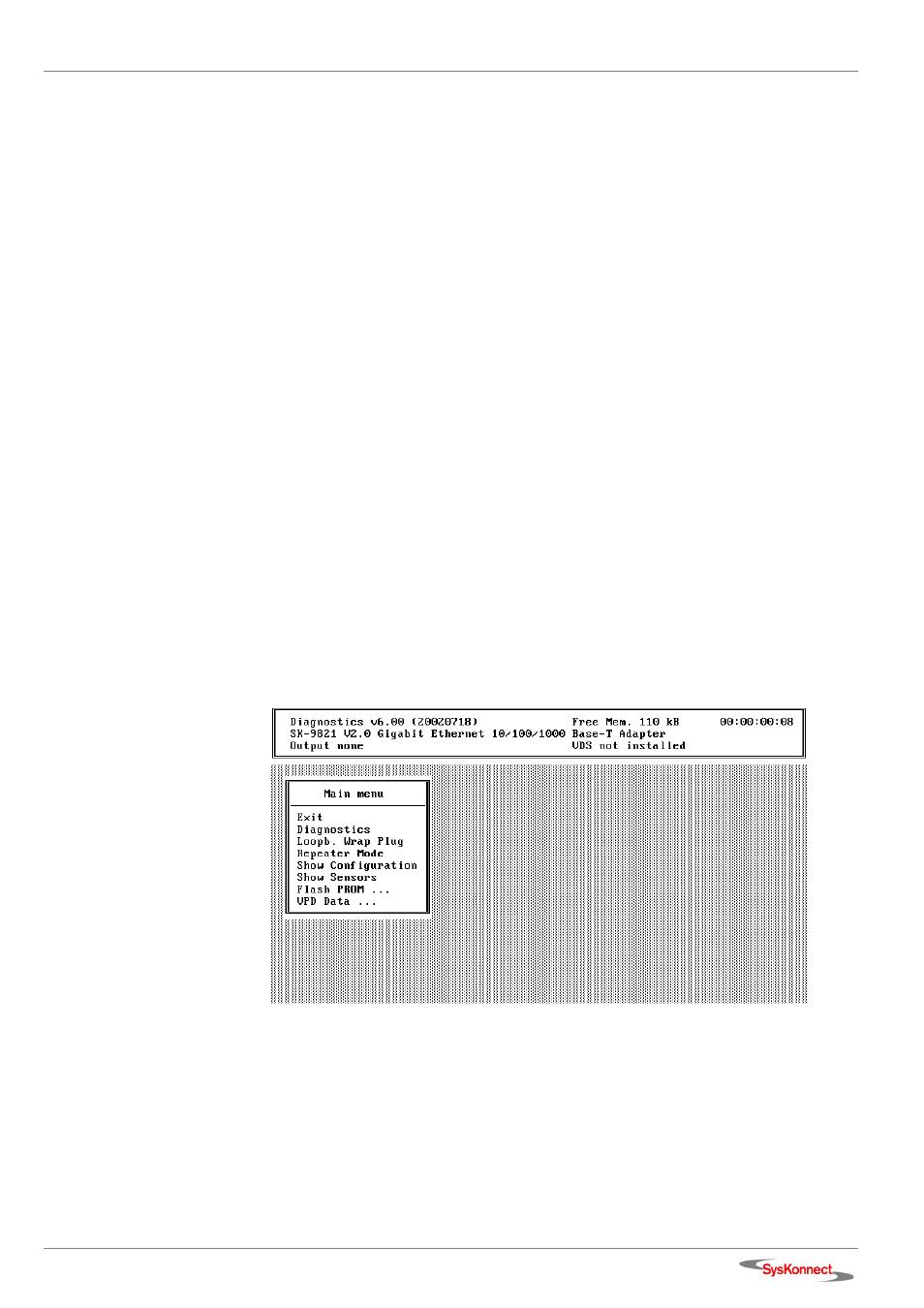

Figure 8. Diagnostics program, main menu
7. Select the appropriate item from the menu (see figure 8).
8. To quit the program, select E XIT in the main menu.
This option is automatically offered for selection if you did not select a menu item previ-
ously.
