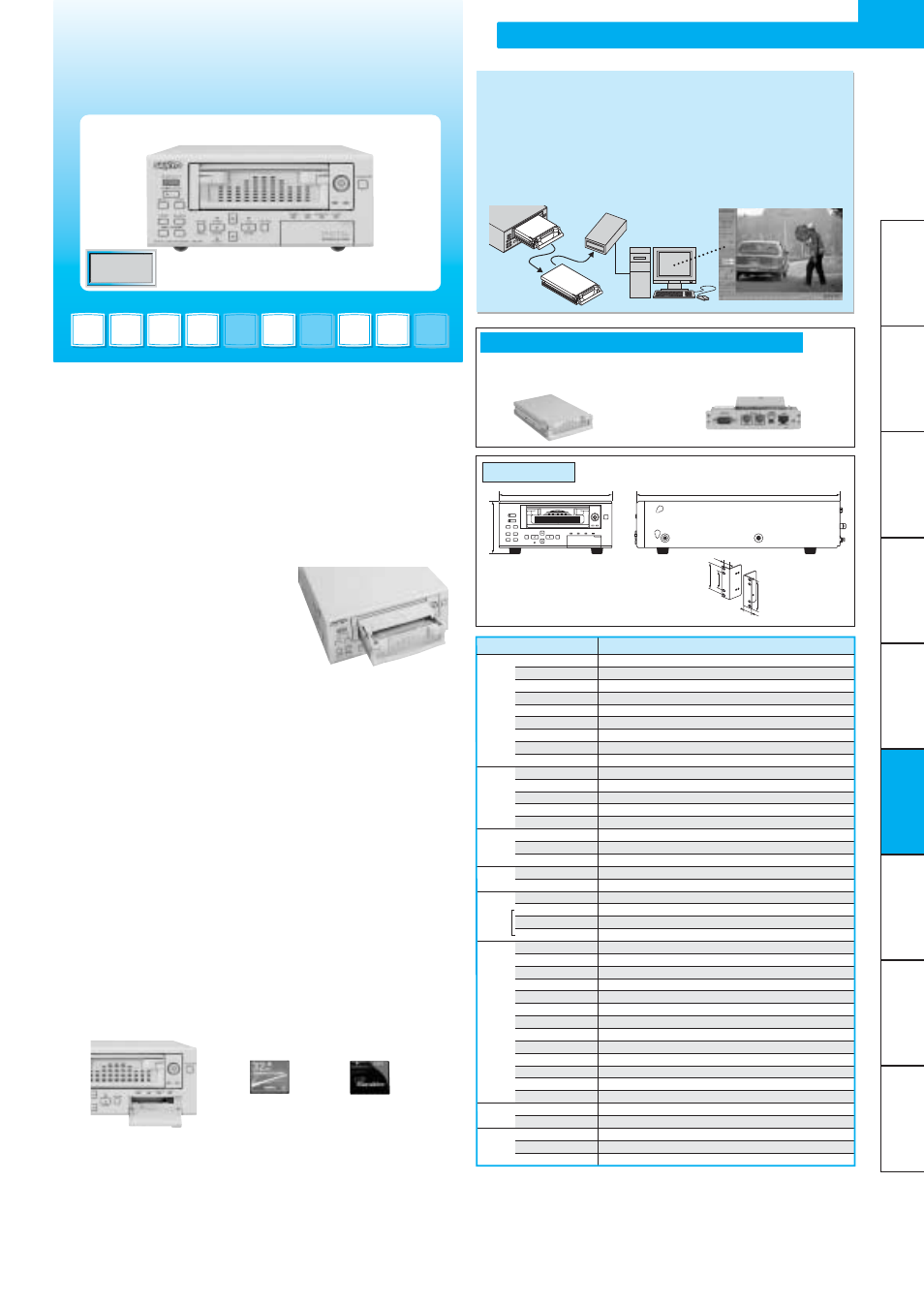

1ch Digital Video Recorder
DSR-300P
* 1 HDDs are sold separately
* 2 One Hard Disk Tray VA-DT300 is included.
(Unit: mm)
Warnings regarding HDDs
• Do not attempt to install or replace a HDD on your own. You cannot use these HDDs on PCs.
• The unit may be damaged if it is exposed to an impact or vibration, or the power plug is disconnected during operation.
• Sanyo will not be held liable for any data loss due to an HDD error or a failure during recording.
* “Microsoft” and “Internet Explorer” are registered trademarks or trademarks of Microsoft Corporation in the United
States and/or other countries.
* All other company and product names are registered trademarks and/or trademarks of their respective owners.
210 380
96
NOTE: Specifications subject to change without notice
MODEL
Hard disk capacity
Picture resolution
Compression
Picture quality
Recording speed
Recording area
Menu language
Clock setup
Signal format
Date / Time search
Alarm search
Alarm thumbnail search
Archive area search
Motion detection search
Video input
Video output
Loop output
Audio input
Audio output
CompactFlash slot
LAN terminal
RS-485
RS-232C
Remote control in
Alarm input
Alarm output
Alarm reset
SW out
Non rec out
Clock adjust input
Clock adjust output
Warning output
Full warning output
Alarm full output
Series input
Series output
AC adaptor
Current consumption
Operating conditions
Dimensions
Weight (Approx.) General
Search
Mode
Video
Audio
Interface
Control
signal
Electrical
Physical
DSR-300P
Max HDD Capacity (Technically) per One bay 540GB
720 x 288, 720 x 576 (pixels)
M-JPEG
5 levels (Basic, Normal, Enhanced, Fine, Super Fine)
27 levels.
Normal recording area / Alarm recording area / Archive area
English / French / German / Spanish
Day / Month / Year / Hour / Minute / Second
PAL color signal standard
Search by date and time
Search by alarm event list
Search by alarm event thumbnails
Search Archive Area with event list
Search by specifying a motion sensor in the play back mode
1.0 V (p-p) 75 Ω unbalanced (BNC)
1.0 V (p-p) 75 Ω unbalanced (BNC)
1.0 V (p-p) 75 Ω unbalanced (BNC)
-8dbs, 27 kΩ unbalanced (RCA pin jack)
-8dbs, 600 Ω unbalanced (RCA pin jack)
CompactFlash type II (Front)
10BASE-T / 100BASE-TX (RJ-45)
RJ-11 x 2
D-SUB9 pin
VA-RMN01 remote control or 3.5 mm mini jack
Normal open, Low level active
Normal 5 V DC, Low level active
Normal open, Low level active
Switching pulse
Normal 5 V DC, Low level active
Normal open, Low level active
Normal 5 V DC, Low level active
Normal open, Low level active
Normal 5 V DC, Low level active
Normal 5 V DC, Low level active
Normal 5 V DC, Low level active
Normal open, Low level active
Input: 100 V to 240 V AC, 50/60 Hz Output: 12 V / 5 V DC
13 W
Temperature: 5°C to 40°C [41°F to 104°F], Humidity: 10% to 80%
210(W) x 86(H) x 380(D) mm [8.27(W) x 3.39(H) x 14.96(D) in]
3.1Kg [6.83 lbs.]
Optional
board
(sold
separately)
DSR-300P
Optional accessories
(sold separately)
VA-DT300 VZU-COM300
Hard Disk Tray Communication Board
This software allows the user to playback audio and vid-
eo recorded on a removable HDD by inserting the HDD
into an exclusive slot connected to the PC.
* Supports Windows
® 2000 and Windows ® XP.
Superior horizontal resolution of 520 TV lines with
simultaneous recording and playback at 50 IPS
(720 x 288, 720 x 576 pixels)
DSR-300P uses the Motion JPEG format for high-quality
image recording and playback.
Removable HDD *1
Removable front tray makes it
easy to remove and store HDDs for
convenient storage. HDDs with a
capacity of 80, 160, and 300 GB or
500 GB are available. For added
security, the case design includes a
lock, meaning that HDD removal
requires the use of a special key. The Hard Disk Tray*
2
(VA-DT300) is available for ease of installation and storage.
For further details about HDDs, contact the place of purchase.
Compact Size of 210 mm Width
The DSR-300P incorporates advanced digital functions into a
compact design that allows it to be used in locations with
limited space.
Multiplexer Connectivity
The DSR-300P can be easily connected to multiplexer, making
it easy to integrate into an existing VCR-based system.
In addition, the optional VZU-COM300 communication board
can be installed to allow the separately sold VSP-9000 System
Controller to control a multiplexer.
Print Directly from a CF Card or a Microdrive
By using SANYO digital photo printer DVP-P1, it is possible to
print images directly from a CF card or a Microdrive. SANYO
does not assume responsibility when other printers are used.
RS-232C / RS-485 / Network Connections Supported with
an Optional Board
A 10BASE-T / 100BASE-TX LAN connection allows the user to
operate the unit from a PC. It is also possible to use SSP
(SANYO Security Serial Protocol) on a terminal with RS-485 or
RS-232C ports.
CompactFlash (commercial product) Microdrive (commercial product)
*Up to 2GB supported.
Removable HDD Viewer Software
VA-SW300
PC
Removable HDD
An exclusive slot for
removable HDD
The simple, easy-to-use design of this
digital recorder incorporates advanced
features into its compact half-rack design
that make it ideal for tight spaces.
Rack Mount Bracket
Option
VA-RACMK2
76.2
88
50
22.6
30.1
Made in
Japan
with AC Adaptor
Removable
HDD
Network
(option)
SSP
(option)
1 CH
M-
JPEG
520
TVL
120 to
240 VAC
operation
48
System Chart
Specialty Camera
Network Camera
Pan-focus Camera
Camera · Lens
DVR
SSP System
Example System
Monitor
Digital Video Recorder
