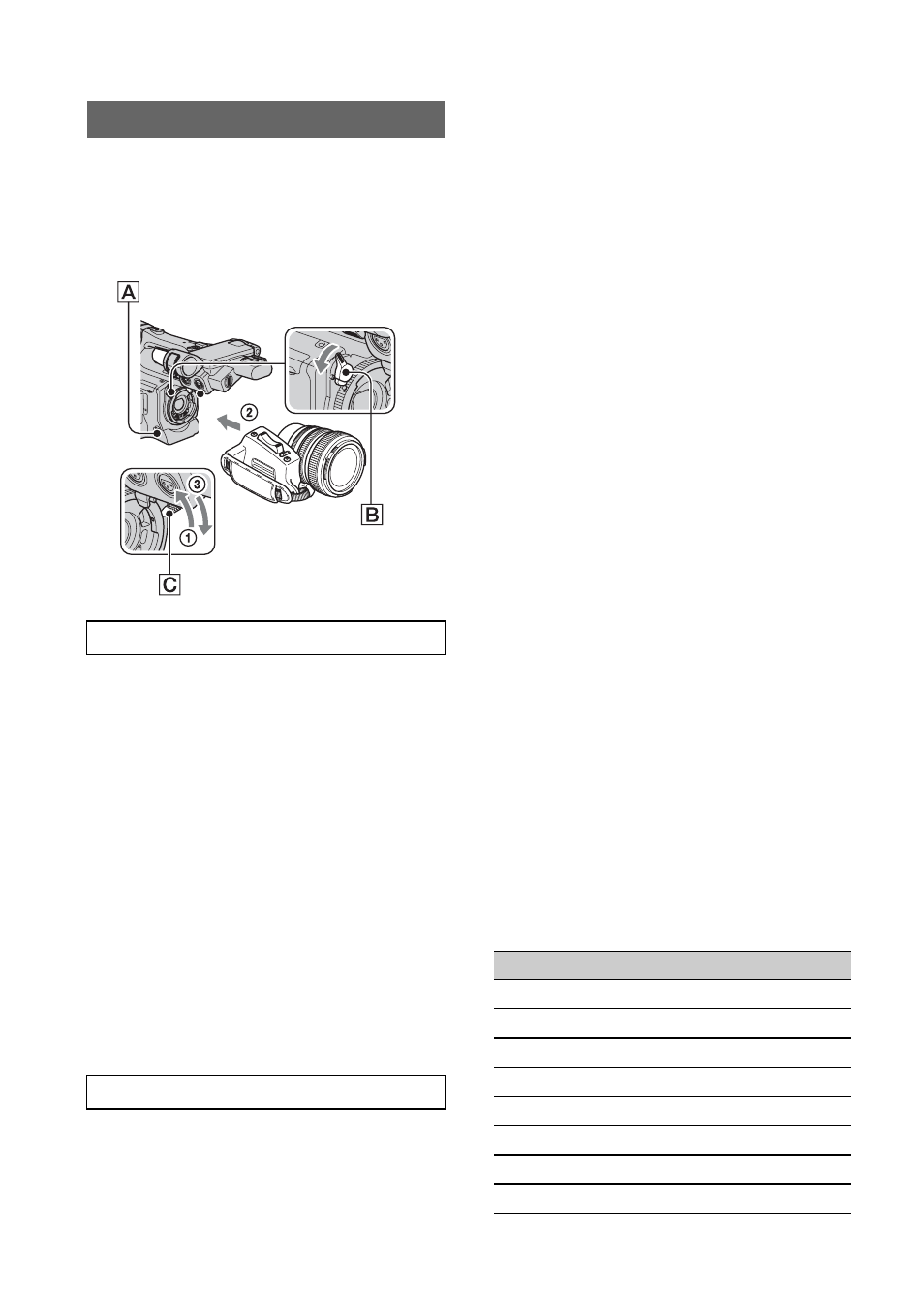

Step 2: Attaching the supplied items
Make sure to turn off the POWER switch of
your camcorder before mounting the lens.
Refer to the manuals provided with the lens
for details on the proper handling of the
lens.
1 Push the lens locking lever C up and
remove the lens or the lens mount cap
from the lens mount.
2 Align the center slot in the lens mount
with the center pin on the lens, and
insert the lens into the mount.
3 While holding the lens in place, push
the lens locking lever C down to
mount the lens.
b Notes
• If the lens is not properly locked, it may come
off when in use, which may cause a serious
problem. Make sure that the lens is securely
locked. Sony recommends that you set the lens
securing tab B as illustrated.
1 Push the lens locking lever C up and
remove the lens or the lens mount cap
from the lens mount.
2 Align the center slot in the lens mount
with the center pin on the lens, and
insert the lens into the mount.
3 While holding the lens in place, push
the lens locking lever C down to
mount the lens.
4 Connect the lens cable to the LENS jack
A.
b Notes
• The maximum power current that your
camcorder can supply to a lens is 500 mA. Do
not attach an interchangeable lens that requires
over 500 mA power current. If you do so, it may
damage your camcorder.
• Power is not supplied to the LENS jack A until
the lens locking lever C is pushed down and
the lens is securely mounted.
• Use a lens mount adaptor suitable for your lens.
– 1/3" bayonet mount lens
You can mount the lens without an adaptor.
– 2/3" bayonet mount lens
Use a Fujinon ACM-17.
A focal length is twice as that without the
adaptor.
– 1/2" bayonet mount lens
Use a Fujinon ACM-12.
A focal length is 1.3 times as that without the
adaptor.
– SONY 1/2" bayonet mount lens
Use a Fujinon ACM-19.
A focal length is 1.3 times as that without the
adaptor.
Your lens performance is not guaranteed.
• When you mount a lens other than a Carl Zeiss
lens, you cannot use the following menu items.
Even you set those menu items, the settings do
not take effect.
Mounting the lens
Mounting the Carl Zeiss lens
Mounting non-Carl Zeiss lens
For the lens with the lens cable (12 Pin)
AF ASSIST
ASSIGN BTN
CAMERA
ASSIGN#
FOCUS
FOCUS INFNTY
FOCUS MACRO
ONE PUSH AF
