– Switch Outputs button:
Interchanges the output channels.
– Toggle Mid On/Off button:
Clicking this button cuts the mid MS matrix input signal (as shown above), so that the effect of the
MS matrix on the side signal can be monitored easily.
– Toggle Side On/off button:
Clicking this button cuts the side MS matrix input signal (as shown above), so that the effect of the
MS matrix on the mid signal can be monitored easily.
– Toggle Matrix On/off button:
Clicking this button toggles MS decoding on (as shown) or off (inactive status).
NOTE: If MS decoding is turned off, the signals are still affected by the gain, width and bass
shelving settings. However, the asymmetry and rotation parameters will have no effect on the output
signals.
NOTE: If the MS matrix is active, both input signals are attenuated by 6 dB. Thereafter, they are
subtracted and summed in order to constitute the required left and right output signals.

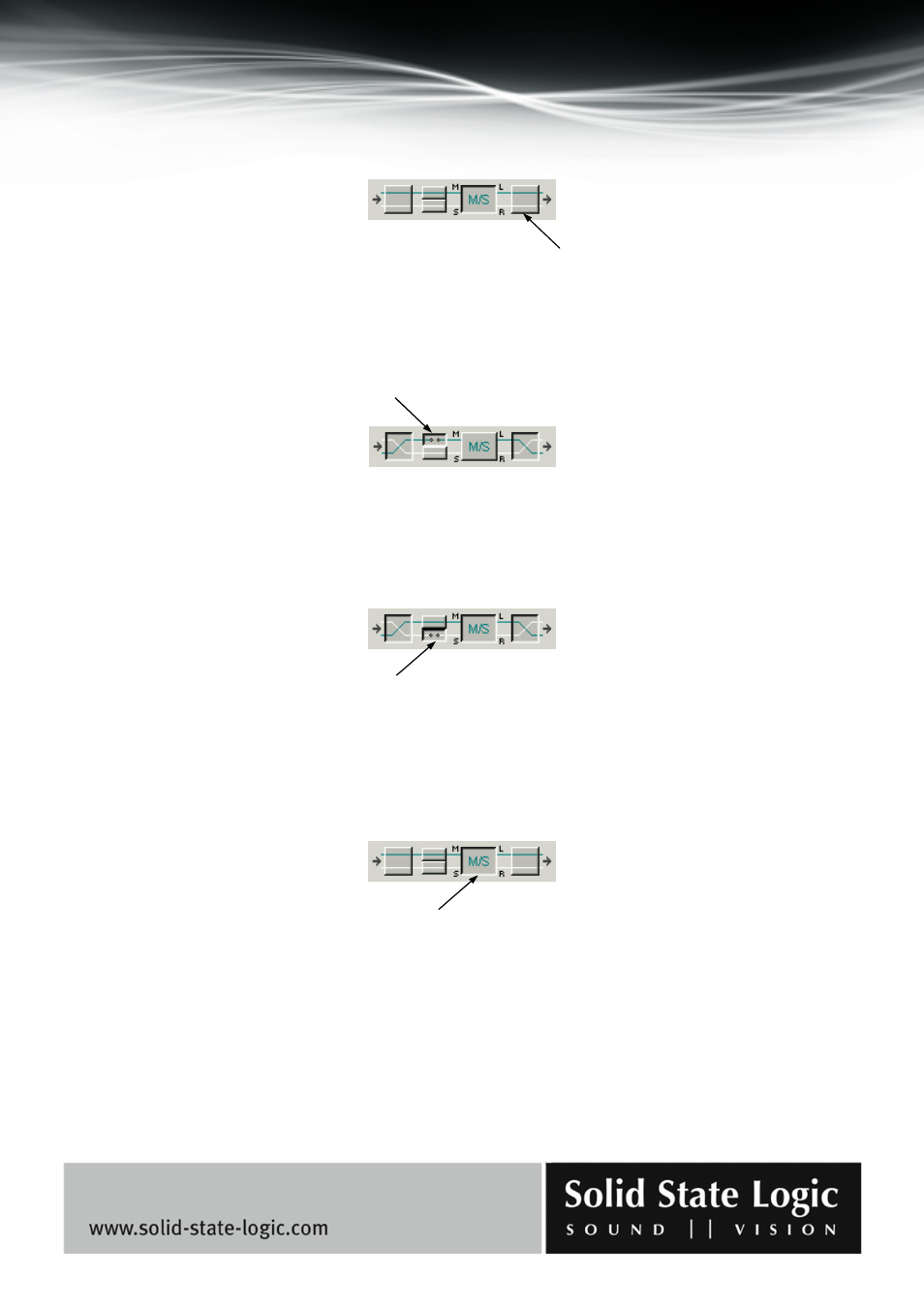

Switch Outputs button
Mid On/Off button
Side On/Off button
MS Matrix On/Off button
