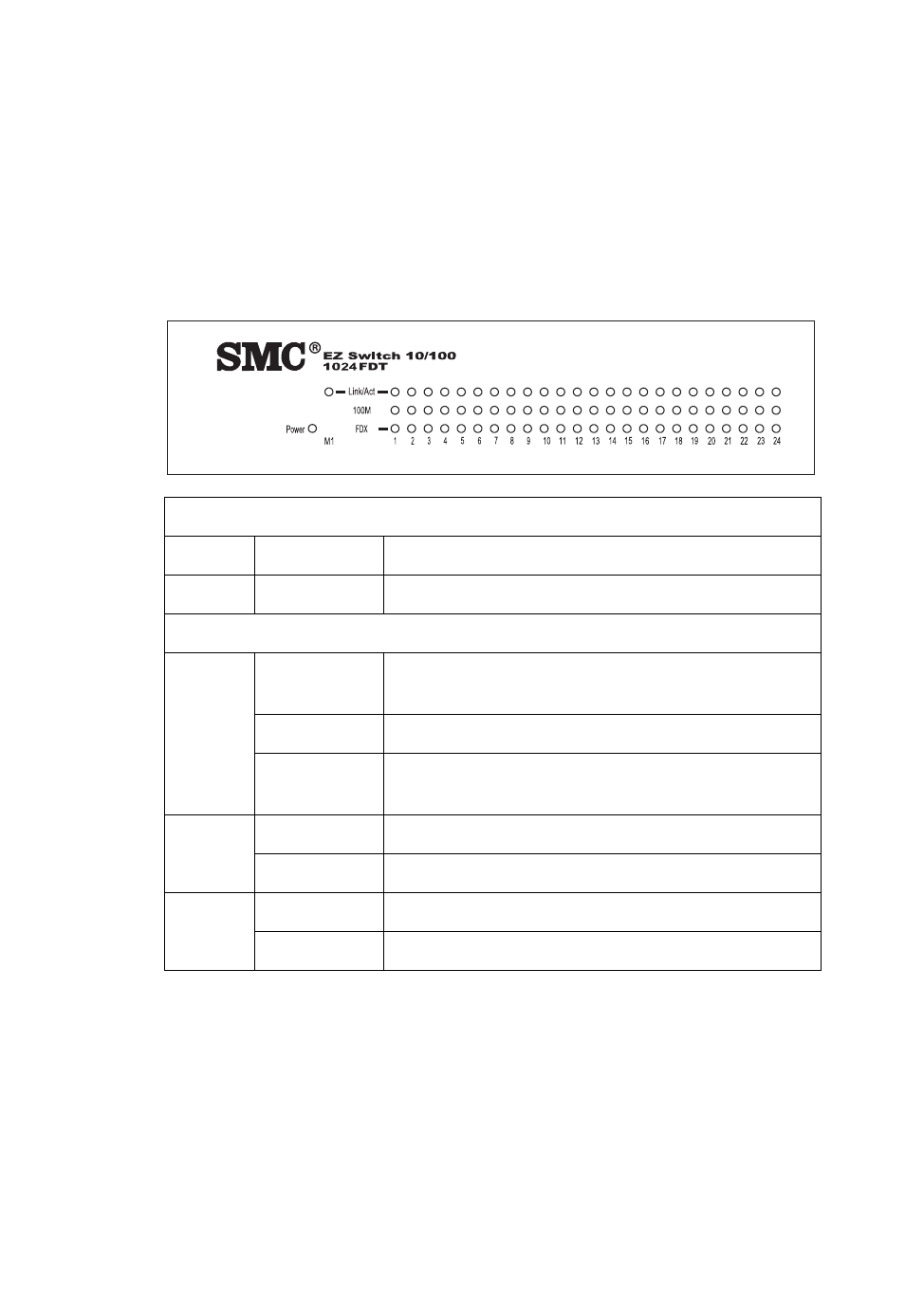

Front Panel LEDs
The front panel of the switch provides status LEDs for “at-a-glance”
system monitoring. The following table details the functions of the
various indicators:
Port and System Status LEDs
LED Condition Status
Power On The switch is receiving power.
RJ-45 Ports
Link/
Act On The port has established a valid network
connection.
Flashing Traffic is passing through the port.
Off The port has not established any network
connection.
100M On Communications have been set to 100 Mbps.
Off Communications have been set to 10 Mbps.
FDX On The port is in full-duplex mode.
Off The port is in half-duplex mode.
