Sennheiser EK 2000 User Manual
Page 12
11

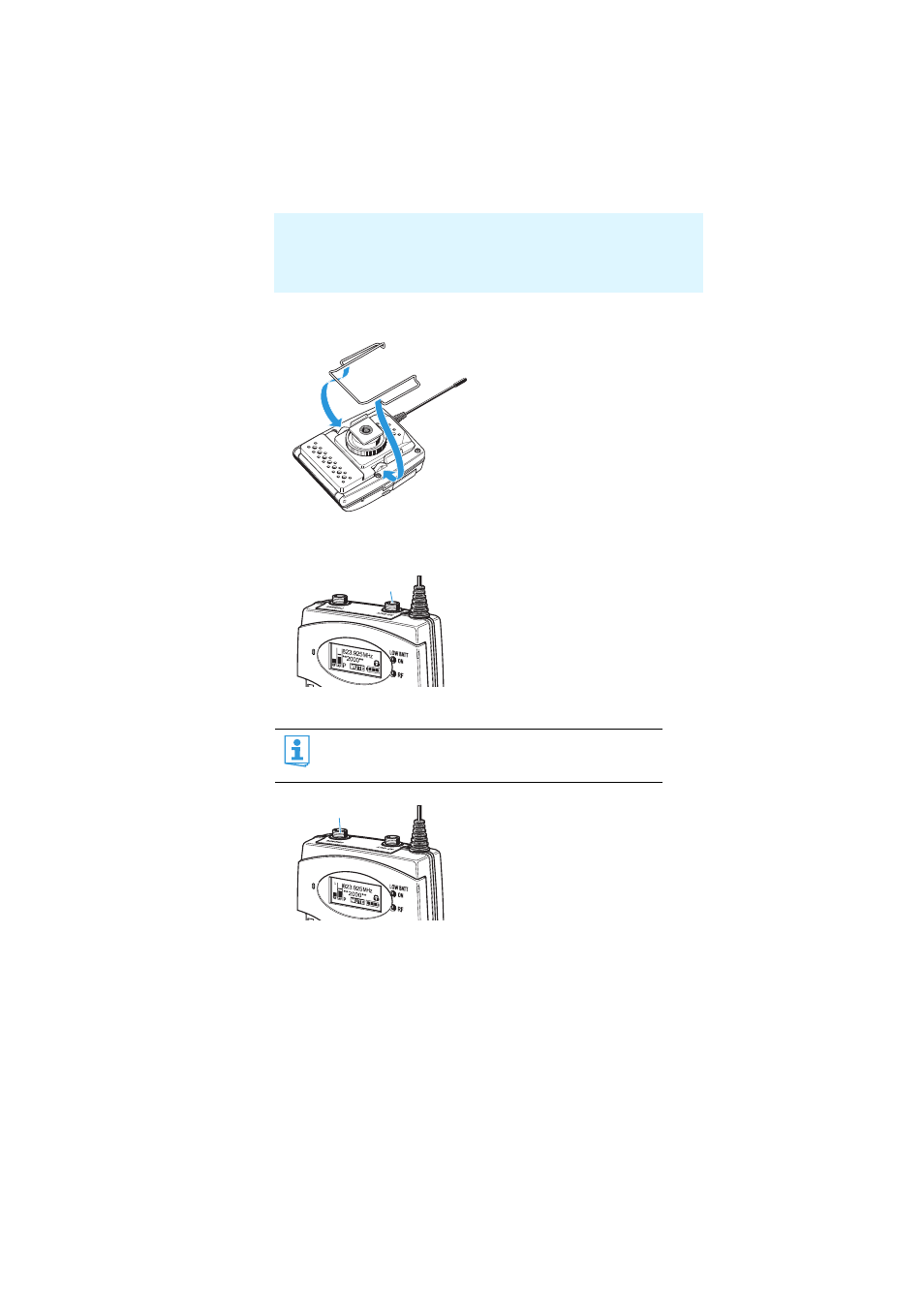

Putting the diversity receiver into operation
̈
Place the perforated plate
ƹ
onto the rear of the receiver.
̈
Reinsert the belt clip
Ƽ
.
̈
Use one of the supplied line cables to connect the line input of the
camera to the socket
̈
Via the operating menu of the diversity receiver, adjust the level of the
line output (
AF OUT
) to the input of the camera (see page 24).
̈
Connect a pair of headphones to the socket
̈
Adjust the volume at the headphone output (
PHONES
) – either via the
operating menu or using the rocker button (see page 21).
The ground connection of the line cable serves as the antenna for
the second diversity section. For details on the connector assign-
ment, refer to the diagram on page 37.
·
³
