Mounting the diversity receiver to a camera – Sennheiser EK 2000 User Manual
Page 11
10
Putting the diversity receiver into operation
Mounting the diversity receiver to a camera
Use the supplied CA 2 camera adapter to mount the receiver to a camera’s
flash mount.
̈

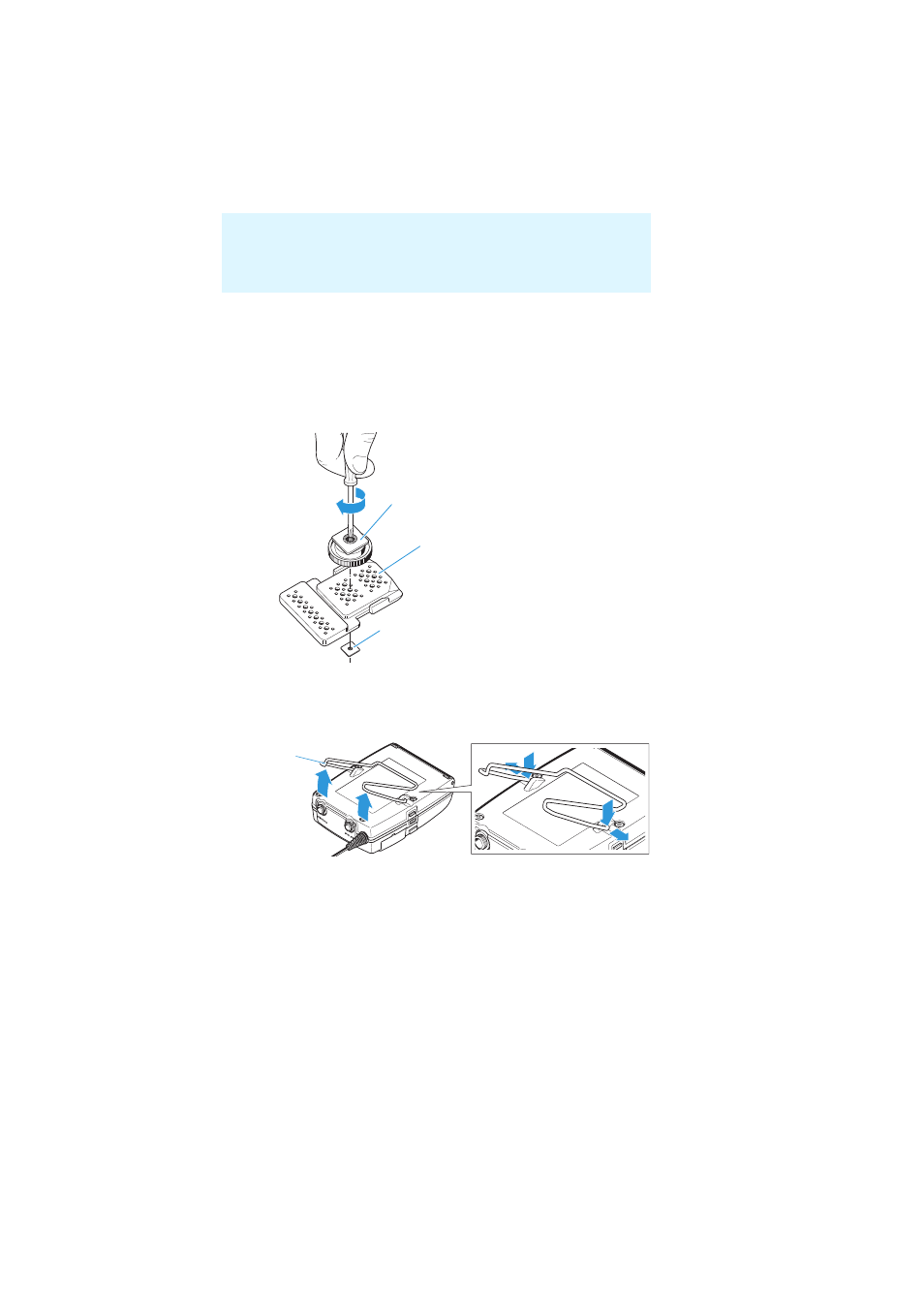

Determine where on the perforated plate
ƹ
the flash mount
adapter
ƺ
will need to be fastened so that the receiver can best be
attached to the camera.
̈
At this position, place a square nut
ƻ
under the perforated plate
ƹ
.
̈
Fasten the flash mount adapter
ƺ
to the perforated plate
ƹ
using the
square nut
ƻ
.
̈
Lift one side of the belt clip
Ƽ
as shown.
̈
Press down the belt clip
Ƽ
at one fixing point and pull it out of the
receiver housing.
̈
Repeat for the other side.
ƺ
ƻ
Ƽ
ƽ
