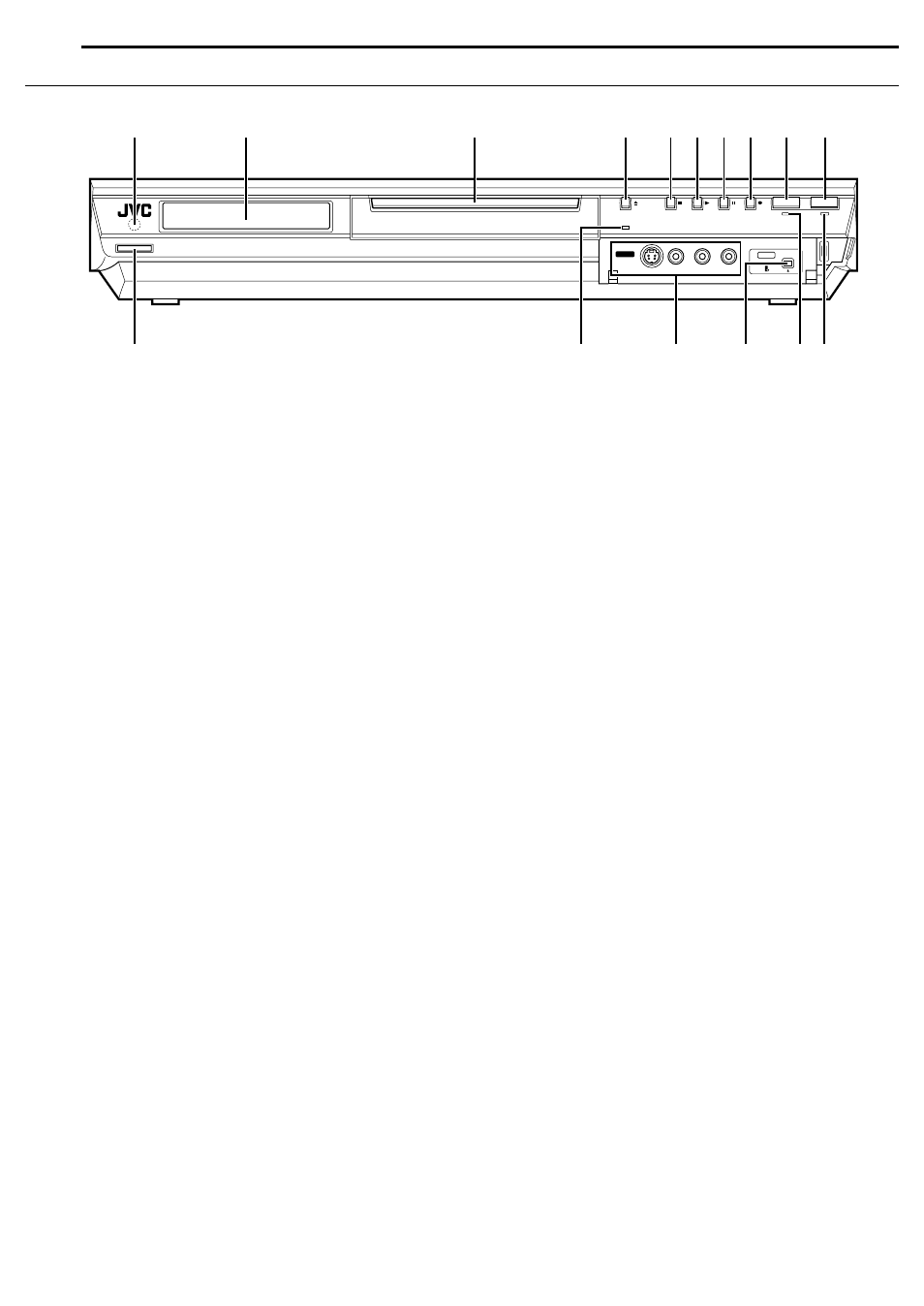

Front View
A Infrared Beam Receiving Window
B Front Display Panel
A pg. 12
C Disc Tray
D Open/Close Button (
M) A pg. 8
E Stop Button ( o) A pg. 24, 40
F Play Button ( I) A pg. 24, 40
G Pause Button ( W) A pg. 24, 40
H Record Button ( R) A pg. 35, 38
I HDD Button A pg. 38
● This button will not function during navigation mode or set up
mode.
J DVD Button A pg. 24
● This button will not function during navigation mode or set up
mode.
K Standby/On Button (STANDBY/ON A)
L Video Lamp (VIDEO) A pg. 36, 39
M S-video/Video/Audio Input Connector [S-VIDEO/VIDEO/
AUDIO ((MONO) L/R)] A pg. 62
N DV Input connector [DV IN (A*)] A pg. 60
*
A
(i.Link) refers to the IEEE1394-1995 industry specification and
extensions thereof. The
A
logo is used for products compliant with the
i.Link standard.
O HDD Lamp (HDD) A pg. 38
P DVD Lamp (DVD) A pg. 24
