9

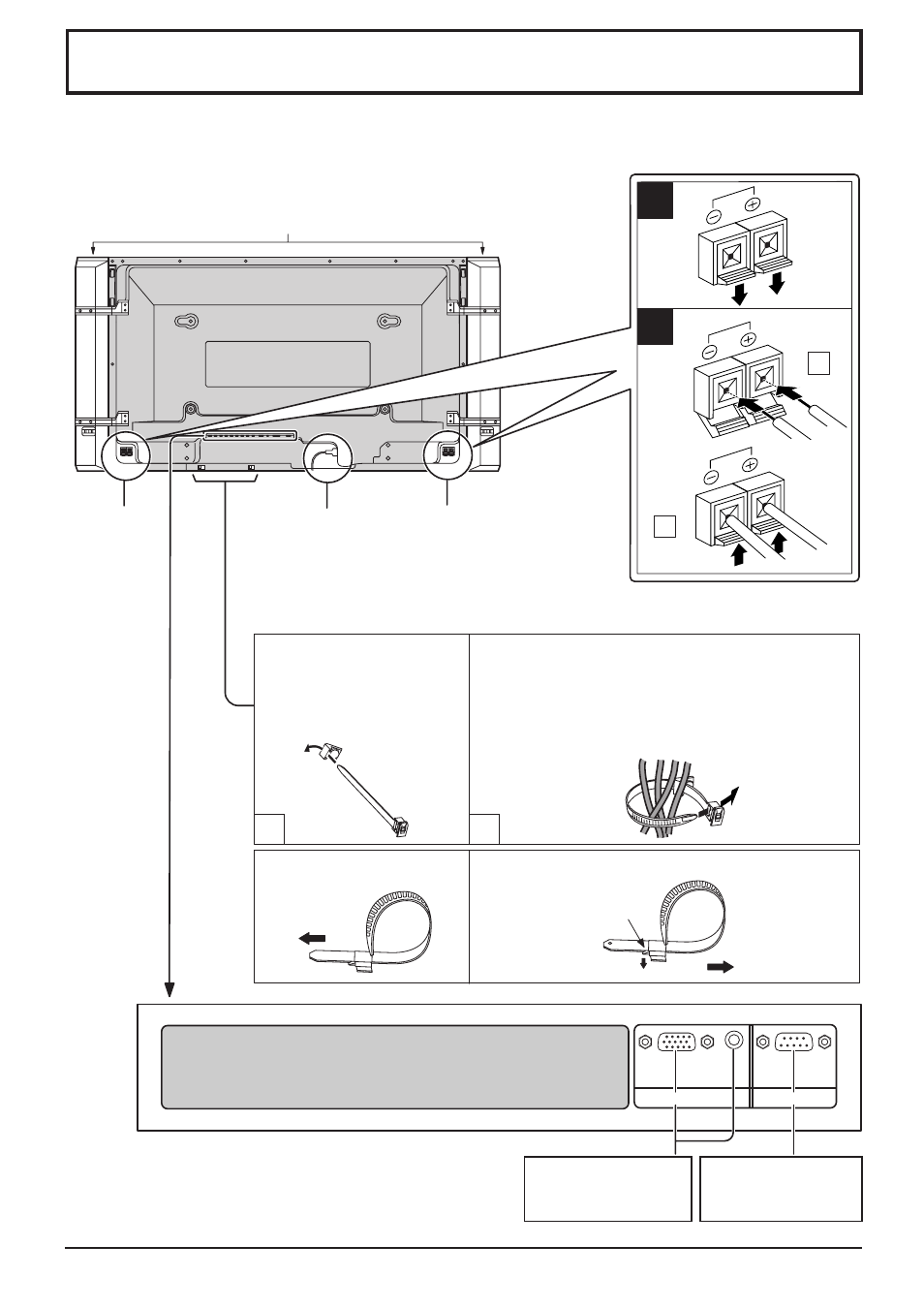

Connections

SERIAL

PC IN

AUDIO

To tighten:

To loosen:

Push
the catch

Pull

Pull

1

2

1

2

1

2

SPEAKERS
Terminals (R)

SPEAKERS
Terminals (L)

– Cable fixing bands

Secure any excess cables with bands as required.

When connecting the speakers, be sure to use only the optional accessory speakers.
Refer to the speaker’s Installation Manual for details on speaker installation.

Speakers (Optional accessories)

Pass the attached cable fixing
band through the clip as
shown in the figure.

To secure cables connected to Terminals, wrap the
cable fixing band around them then pass the pointed
end through the locking block, as shown in the figure.
While ensuring there is sufficient slack in cables
to minimize stress (especially in the power cord),
firmly bind all cables with the supplied fixing band.

From EXIT monitor
terminal on Computer
(see page 10)

From SERIAL
Terminal on Computer
(see page 11)

AC cord connection
(see page 14)
