32

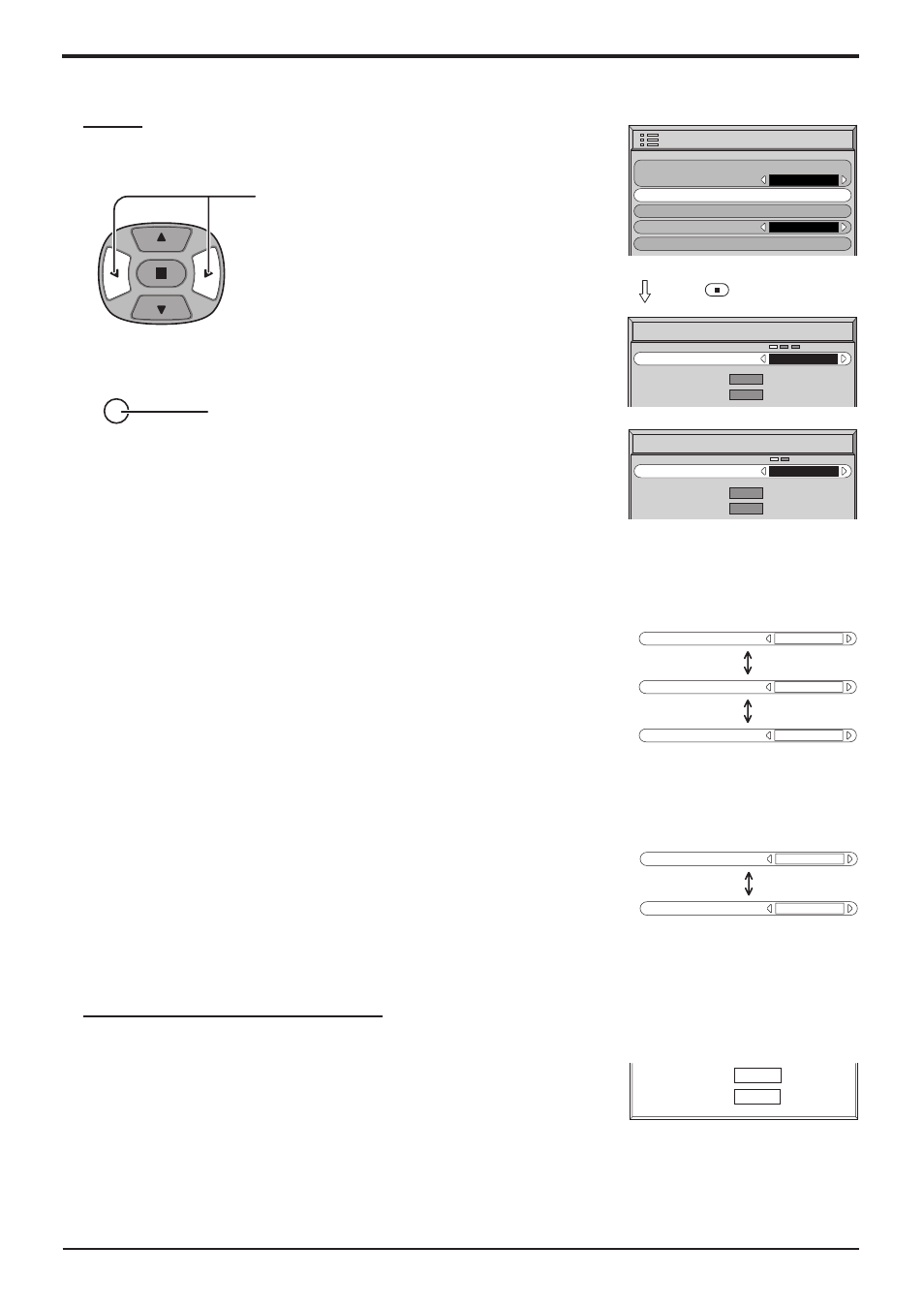

Select Signal from the “Setup” menu during RGB or PC input signal mode.
Press to adjust.
Sync H & V
Sync on VIDEO
Sync on G
Setting RGB sync signal:
Confirm that the input is set to RGB input (this setting is valid only for RGB input).
H & V: The H and V sync signals are input from the HD/VD connector.
on G: Uses a synchronized signal on the Video G signal, which is input
from the G connector.
on VIDEO: Compatible with the scart plug (Europe)
The composite video signal input from the VIDEO input terminal is
used by dividing the sync signals.
Setting PC sync signal:
Confirm that the input is set to PC input (this setting is valid only for PC input).
H & V: The H and V sync signals are input from the HD/VD connector.
on G: Uses a synchronized signal on the Video G signal, which is input from
the G connector.
Displays the H (Horizontal)/V (Vertical) frequencies.
This display is valid only for RGB input and PC input.
Display range:
Horizontal 15.5 - 110 kHz
Vertical 48 - 120 Hz
H-Freq. (kHz)/V-Freq. (Hz)
H-Freq. kHz
V-Freq. Hz 31.5
60.0
Setup for input signals
Sync
Signal [ RGB ]
Sync
H-Freq. kHz
V-Freq. Hz
H & V
31.5
60.0
Signal [ PC ]
Sync
H-Freq. kHz
V-Freq. Hz
H & V
31.5
60.0
Press to exit from adjust mode.
R
Set up TIMER
Setup
Signal
Screensaver
Component/RGB-in select
RGB
OSD Language English (UK)
Press
(ACTION) button
Sync H & V
Sync on G
