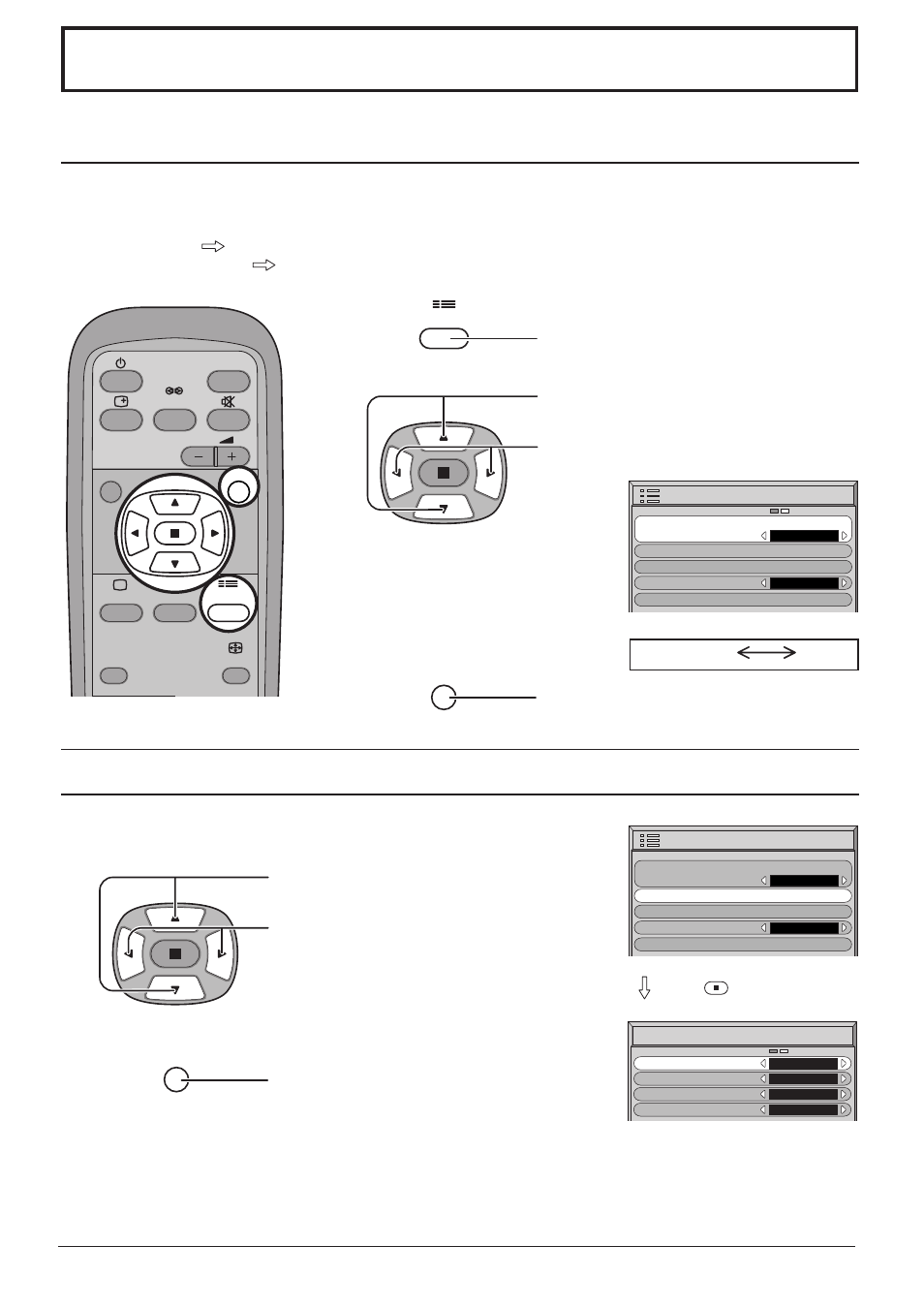

Setup for Input Signals
Component/RGB-in Select
Select the input signals to be connected by installing the Optional Video Input Card.
(Refer to the service manual for the optional Video Input Card.)
Select to match the signals from the source connected to the Component/RGB input terminals.
Y, P
B
, P
R
signals “Component”
R, G, B, HD, VD signals
“RGB”
INPUT
SURROUND
VOL
N R
PICTURE SOUND SET UP
ASPECT
POS. /SIZE
SET UP
1
2
Press to display the Setup menu screen.
Press to select the “Component/RGB-in
Select”.
Press to select the desired mode.
Press to exit from adjust mode.
3D Y/C Filter – For NTSC AV images
Select “Signal” from the “Setup” menu during AV(S Video) input signal
mode. (“Signal [AV]” menu is displayed.)
3D Y/C Filter (NTSC)
Colour system
3:2 Pulldown On
Auto
Off
Aspect Auto (4:3) 4 : 3
Signal [ AV ]
Press to select the “3D Y/C Filter (NTSC)”
Press to set On/Off.
R
Press to exit from adjust mode.
Press (ACTION) button
Note:
When On, this setting only affects NTSC input signals.
Set up TIMER
Setup
Signal
Screensaver
Component/RGB-in select
RGB
OSD Language English (UK)
Set up TIMER
Setup
Signal
Screensaver
Component/RGB-in select
RGB
OSD Language English (UK)
R
Component RGB
