30
Notes:
• You can connect to the TV with the AV COMPU LINK III or AV COMPU LINK EX terminal.
A TV with AV COMPU LINK RECEIVER/AMP terminal can not be used.
• When connecting the receiver and a TV with the AV COMPU LINK EX terminal by using a component video cable, you cannot use the
Automatic Selection of TV’s Input Mode (see page 31).
7 Video cable connection
• When connecting the DVD player and/or the VCR to the receiver using the composite video terminals, also connect this
receiver to the TV’s Video Input 2 terminals (composite video input) using composite video cables.
• When connecting the DVD player and/or the VCR to the receiver using the S-video terminals, also connect this receiver to
the TV’s Video Input 1 terminals (S-video input) using S-video cables.
• When connecting the DVD player and/or the VCR to the receiver using the component video terminals, also connect this
receiver to the TV’s Video Input 2 terminals (component video input) using component video cables.
To use the AV COMPU LINK remote control system, set the video input terminal type for the DVD player and the VCR
correctly (see “Selecting the Video Input Terminal—VIDEO IN DVD, VIDEO IN VCR” on page 16).
RX-5030VBK/RX-5032VSL
7 AV COMPU LINK connection
Note:
You can connect to the TV with the AV COMPU LINK EX or AV COMPU LINK III terminal.
A TV with AV COMPU LINK RECEIVER/AMP terminal can not be used.
7 Video cable connection
Connect the DVD player and/or the VCR to this receiver using the VIDEO (composite video) terminals, and connect this
receiver to the TV’s Video Input 2 terminals (composite video input) using composite video cables
RIGHT
AV
COMPU LINK
VHS
AV
COMPU LINK
AV
COMPU LINK EX
DVD
AV
COMPU LINK III
AV
COMPU LINK
AV
COMPU LINK
AV
COMPU LINK – III
AV
COMPU LINK
VHS
DVD
AV
COMPU LINK III
AV
COMPU LINK EX

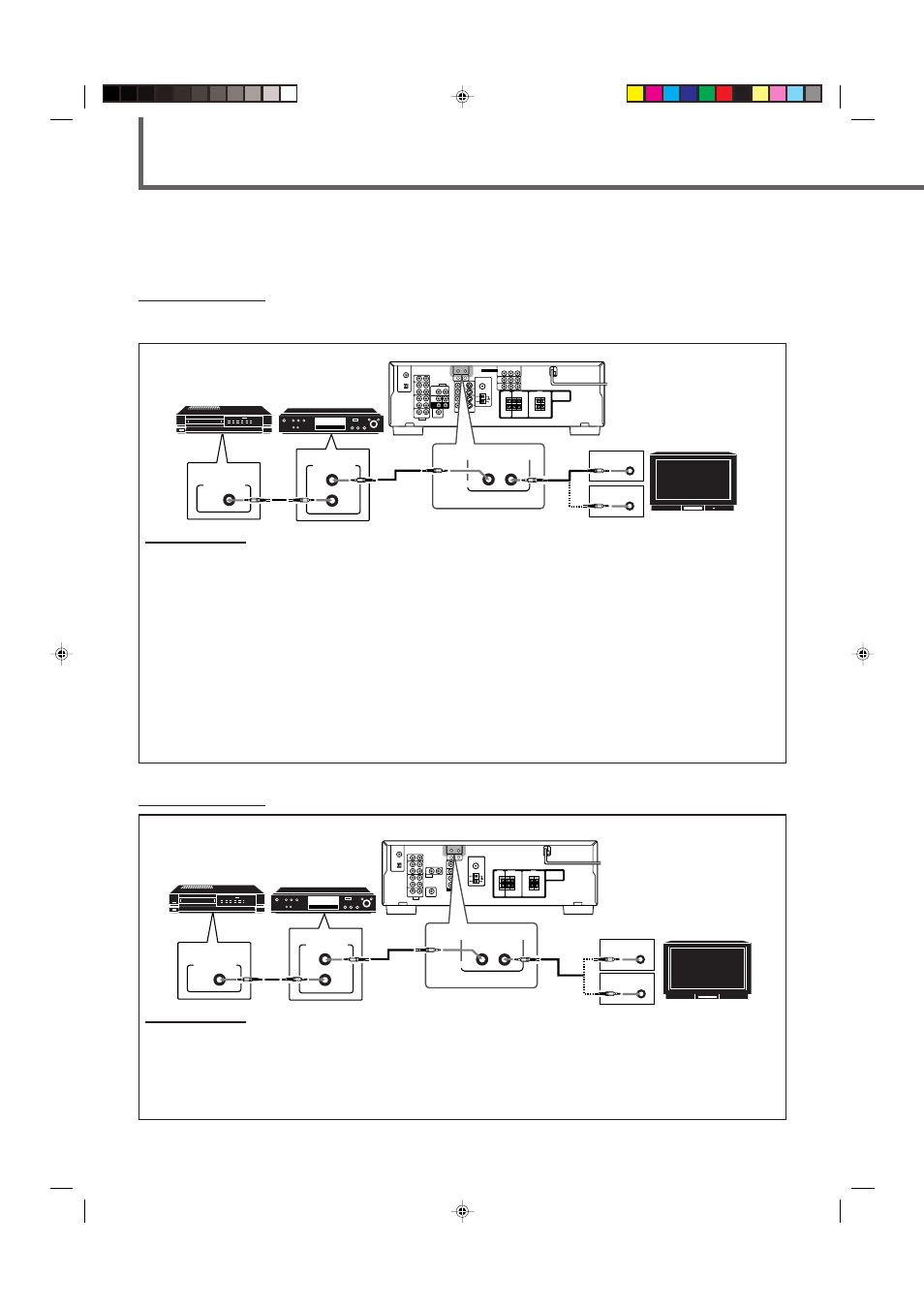

AV COMPU LINK Remote Control System
The AV COMPU LINK remote control system allows you to operate JVC’s video components (TV, VCR, and DVD player) through
the receiver.
To use this remote control system, you need to connect the video components you want to operate following the diagrams below
and the procedure on the next page.
RX-6030VBK/RX-6032VSL
This receiver is equipped with the AV COMPU LINK-III, which added a function to operate JVC’s video components through the
component video terminals.
7 AV COMPU LINK Connection
TV
VCR DVD player
Rear panel
TV
VCR DVD player
Rear panel
