11
TAPE/CDR*: Select the cassette deck (or the CD
recorder).
FM (front panel): Select an FM broadcast.
AM (front panel): Select an AM broadcast.
FM/AM* (remote control):
Select an FM or AM broadcast.
• Each time you press the button, the band
alternates between FM and AM.
RX-5030VBK/RX-5032VSL
On the front panel
From the remote control
DVD: Select the DVD player.
VCR: Select the VCR.
TV SOUND: Select the TV sound (or the CATV converter).
CD*: Select the CD player.
TAPE/CDR*: Select the cassette deck (or the CD recorder).
FM/AM*:
Select an FM or AM broadcast.
• Each time you press the button, the band
alternates between FM and AM.
Notes:
• When connecting a CD recorder to the TAPE/CDR jacks, change the
source name to CDR so that “CDR” appears on the display when
selected as the source. See “Changing the Source Name” on page
12.
• When you have connected some digital source components using
the digital terminals (see page 10), you need to select the digital
input terminals (see page 16).
• When you press one of the source selection buttons on the remote
control marked with an asterisk (*), the receiver automatically turns
on.
Turning On the Power
Press STANDBY/ON (or STANDBY/ON AUDIO on the
remote control).
The STANDBY lamp goes off. The name of the current source
(or station frequency) appears on the display.
To turn off the power (into standby mode)
Press STANDBY/ON
(or STANDBY/ON AUDIO on the
remote control) again.
The STANDBY lamp lights up.
Note:
A small amount of power is consumed in standby mode. To turn the
power off completely, unplug the AC power cord.
Selecting the Source to Play
Press one of the source selection buttons.
The selected source name appears on the display.
RX-6030VBK/RX-6032VSL
On the front panel
From the remote control
DVD MULTI: Select the DVD player for viewing a digital
video disc using the analog discrete output
mode (5.1 channel reproduction).
To use the DVD MULTI playback, see page 28.
DVD: Select the DVD player.
VCR: Select the VCR.
TV SOUND: Select the TV sound (or the CATV converter).
CD*: Select the CD player.

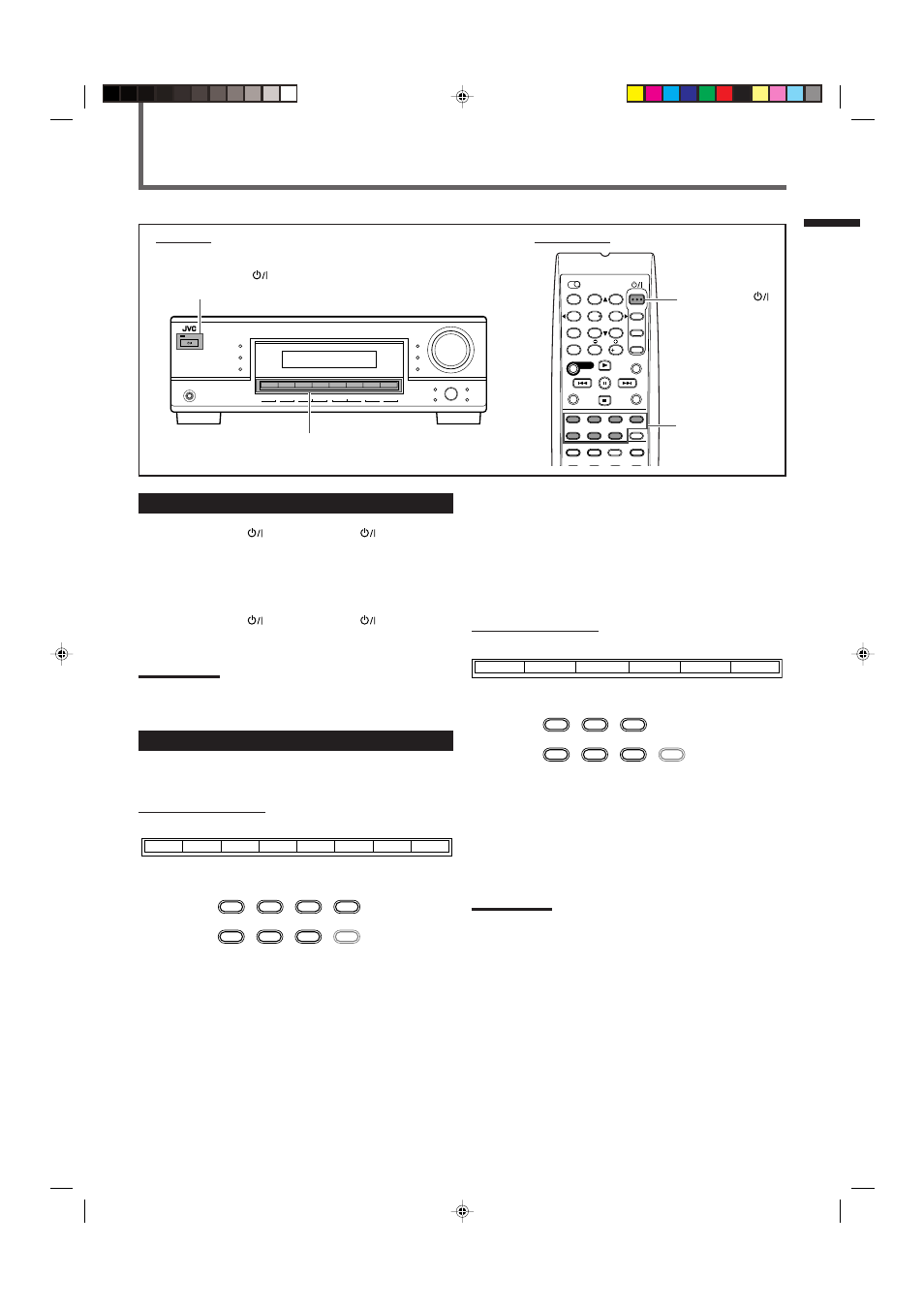

Basic Operations
STANDBY/ON
AUDIO
Source selection
buttons
Front panel Remote control
Source selection
buttons
STANDBY/ON
and STANDBY lamp
DIGITAL AUTO SPK ONE TOUCH OPERATION BASS BOOST PRO LOGIC DSP H.PHONE AUTO MUTING TUNED STEREO TA NEWS INFO VOLUME INPUT ATT EON RDS SLEEP
CH–
1 2 ANALOG L LINEAR PCM DIGITAL
C R S.WFR LFE LS RS S
PHONES D I G I T A L P R O L O G I C
D I G I T A L
S U R R O U N D
SURROUND
DSP
SPEAKERS
ON/OFF
SUBWOOFER OUT FM MODE MEMORY
ON/OFF
FM/AM TUNING
SURROUND/DSP OFF
DIMMER
INPUT DIGITAL
RX–6030V AUDIO/VIDEO CONTROL RECEIVER
INPUT ANALOG
INPUT ATT
FM/AM RESET
DVD MULTI DVD VCR CD FM AM TAPE/CDR TV SOUND
SOURCE NAME
SOURCE NAME
FM/AM TAPE/CDR CD TV SOUND VCR DVD
Getting Started/Basic Operations
1
4
7/P
10
2
5
8
0
3
6
9
10
TA/NEWS/INFO
DISPLAY MODE
A/V CONTROL
RECEIVER
TAPE/CDR CD DVD
FM/AM TV SOUND VCR
ANALOG
/DIGITAL
TAPE/CDR CD DVD DVD MULTI
FM/AM TV SOUND VCR
ANALOG
/DIGITAL
