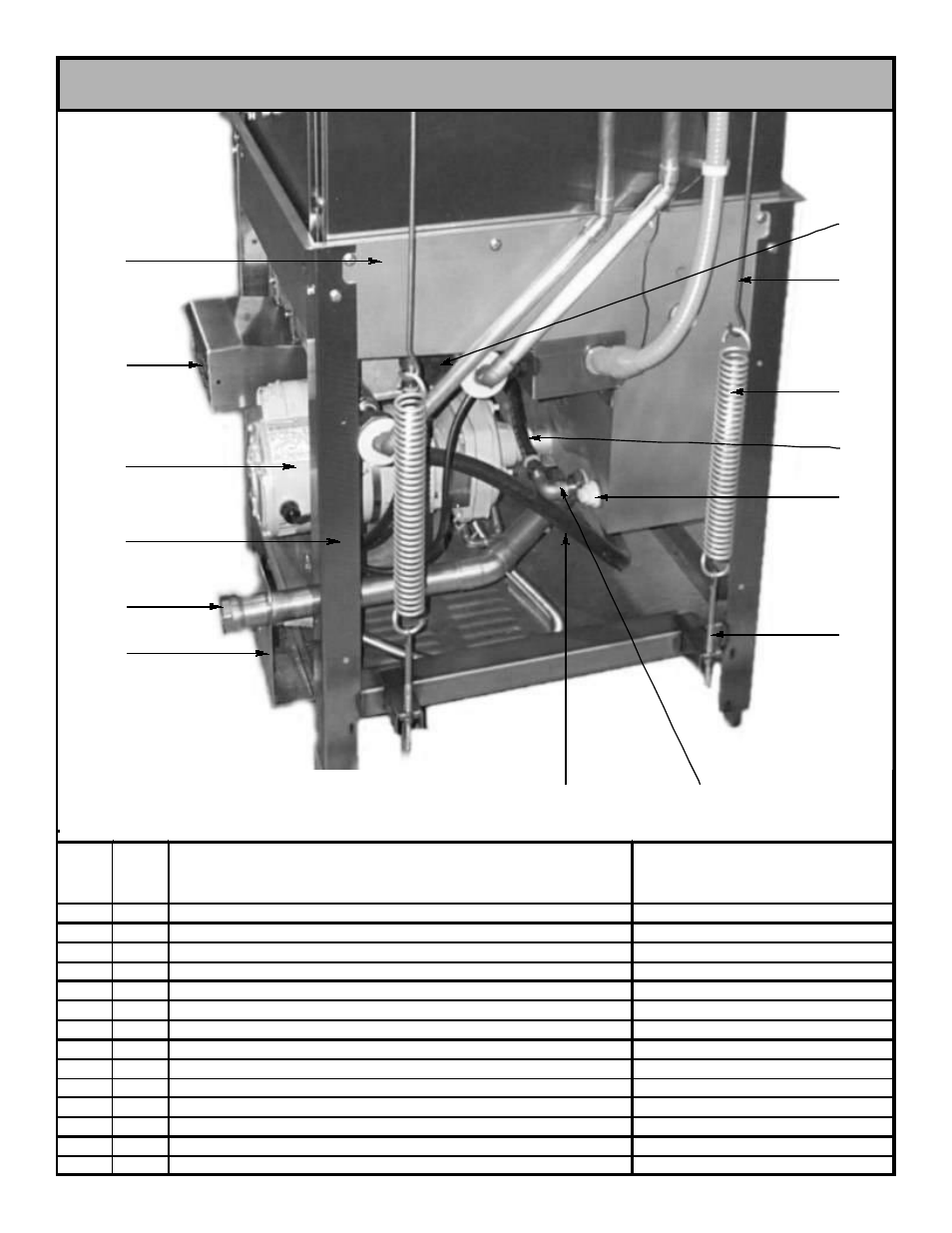

BACK OF TUB, & DRAIN ASSEMBLY
28
01
02
03
04
05
06
07 08
09
10
12
13
11
ITEM QTY DESCRIPTION MFG NO.
01 1 Tub Weldment 5700-002-18-77
02 1 Vent Flue Assembly 5700-002-19-45
03 1 Wash Pump & Motor Assembly 115-230/60/1 6105-121-99-78
04 1 Frame Weldment 5700-002-18-78
05 1 Plumbing, Drain Assembly 5700-002-21-29
06 1 Bracket, Drain Support 5700-002-20-58
07 1 Hose, 3/4" Recirculating Pump Suction 5700-002-17-79
08 2 Elbow, 90 Deg 1/2" Street Brass 4730-206-08-00
09 2 Bolt, Cantilever Hanger Eye 3/8"-16 5306-956-05-00
10 2 Plug, Bulk Head 4730-609-05-00
11 1 Hose, 1/2" Recirculating Pump Discharge 5700-002-17-71
12 2 Spring 5340-109-02-00
13 2 Rod, Spring 5700-001-28-18
14 1 Hose, 1/2" Heat Exchanger Inlet Assembly (not shown) 5700-002-17-73
14
