VIDEO PLAYBACK (cont.)
Connections
These are some basic types of connections. When making the connections, refer also to your VCR and TV
instruction manuals.

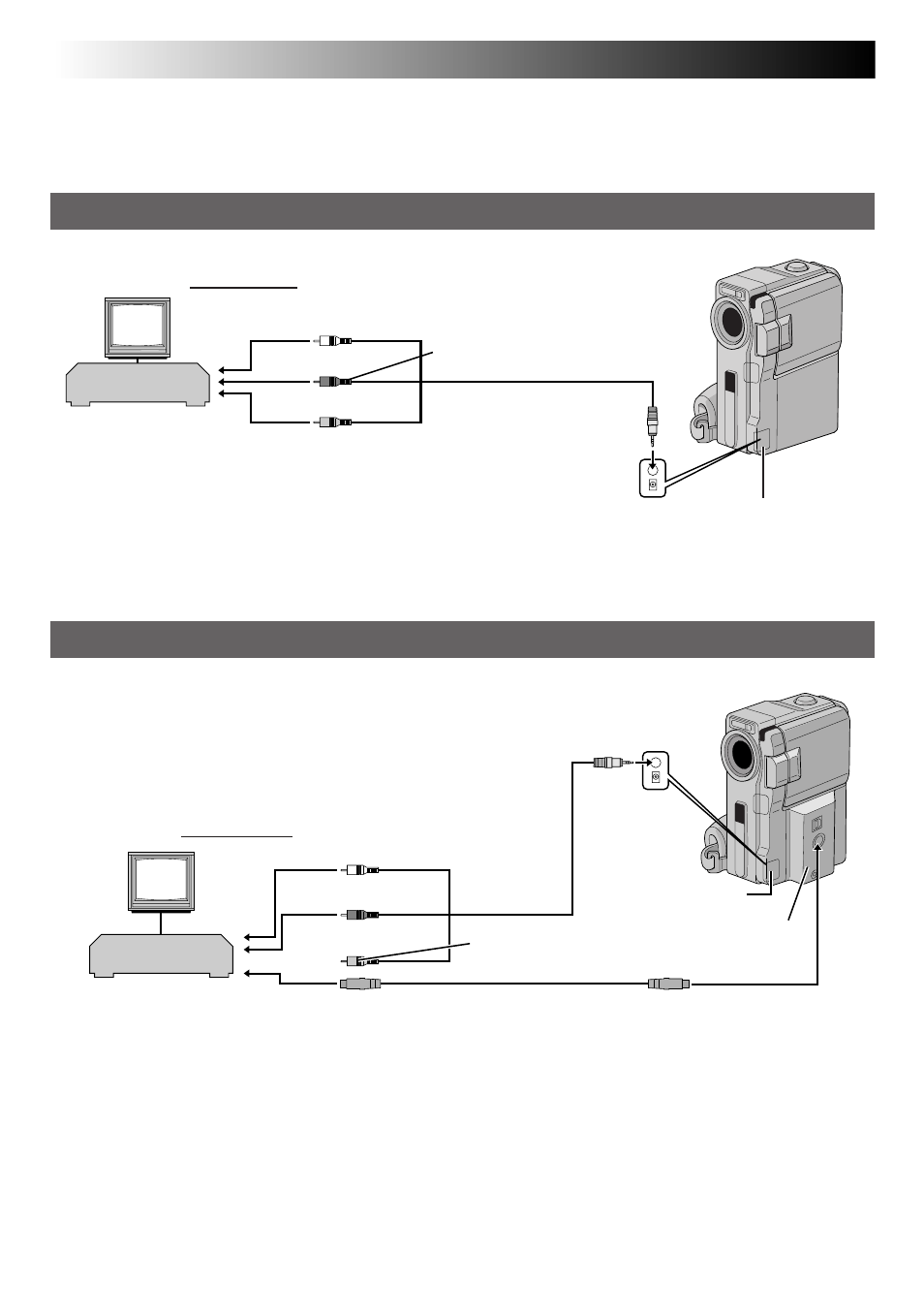

A. Connection to a TV or VCR equipped only with A/V input (RCA type) connectors
B. Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input connectors
White to AUDIO L IN**
To S-VIDEO IN
Red to AUDIO R IN**
Yellow: Not connected
To S-VIDEO
S-Video cable
(optional)
Audio/Video cable
[mini-plug to RCA plug]
(provided)
TV
* When connecting the cables, open this cover.
** The Audio cable is not required for watching still images only.
*** AV IN/OUT:GR-DVX78, AV OUT:GR-DVX49/DVX48
To TV or VCR
* When connecting the cables, open this cover.
** The Audio cable is not required for watching still images only.
*** AV IN/OUT:GR-DVX78, AV OUT:GR-DVX49/DVX48
**** Refer to “Jack Box Attachment” (
੬ pg. 23).
Jack box****
To AV IN/OUT***
or AV OUT***
Connector cover*
VCR
TV
Yellow to VIDEO IN
Audio/Video cable
[mini-plug to RCA plug]
(provided)
Red to
AUDIO R IN**
White to AUDIO L IN** To
AV IN/OUT*** or
AV OUT***
Connector cover*
To TV or VCR
VCR
