8
Camera Body
Controls, Connectors and Indicators
1 MONITOR terminal (RCA pin)
For connecting a monitor when determin-
ing camera angle, etc. (High impedance)
2 Camera head
3 Horizontal LOCK screw
When adjusting the camera angles
horizontal rotation, this screw is loosened
for adjustment and tightened to maintain
the angle.
4 Camera clamp
Fix the camera body to the ceiling mount
by fastening the camera clamping screw
of the ceiling mount to this clamp.
5 Operation buttons
LEFT/RIGHT/UP/DOWN
Used to move the cursor on the SETUP
MENU screens and for changing set
values.
AWC
Press for about 1 second to activate the
one-push auto white balance. Even if the
color temperature changes later on, the
white balance does not adjust to the
change.
6 SET button
Press to display and close the setup
screen.
MONITOR
LOCK
LEFT RIGHT SET UP
NOT USED
NOT USED
L/L
ON
INT
OFF
TERMINATION
AWC
DOWN
1
2
3
4 5
6
7

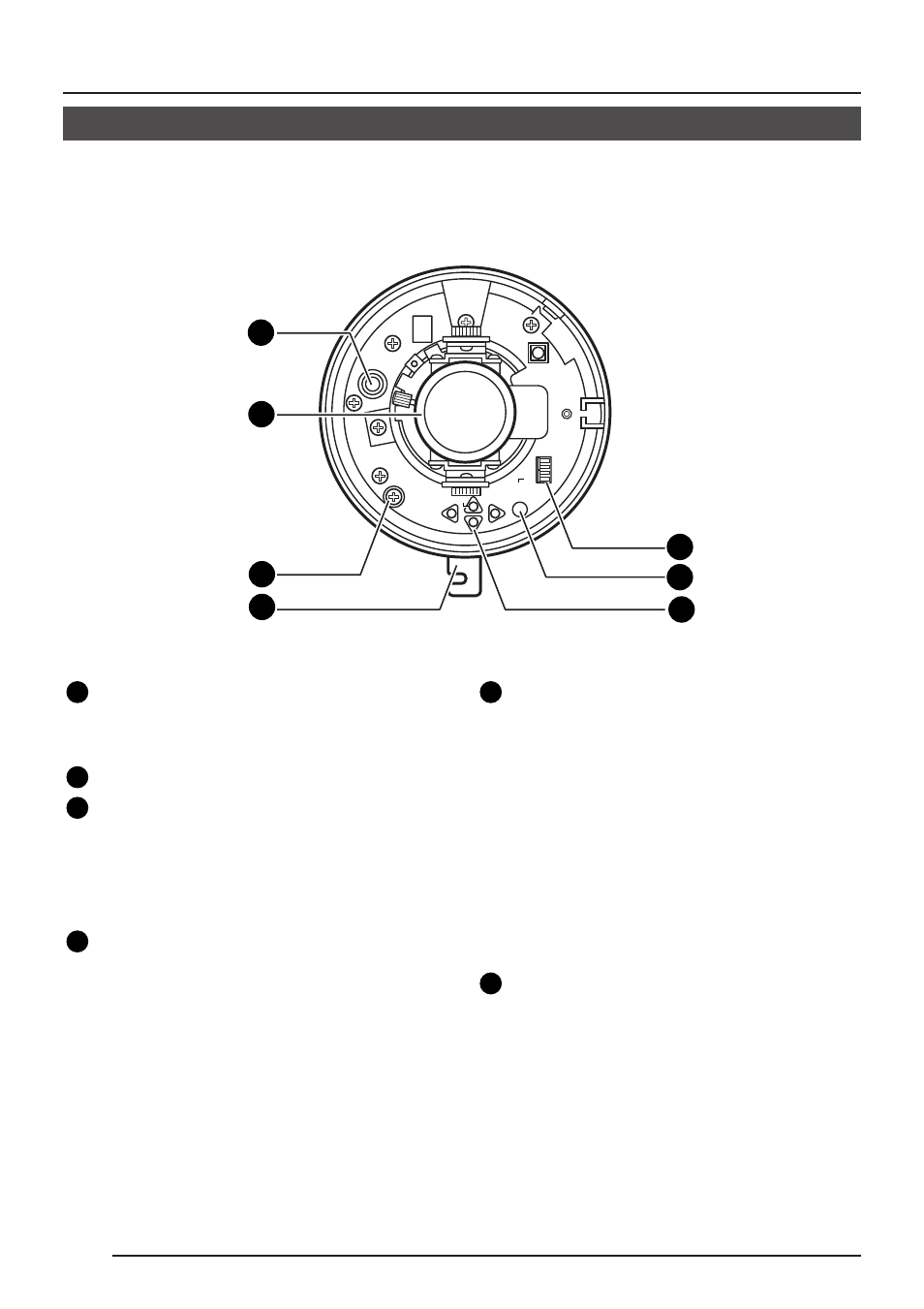

Ⅲ Body Surface
View when the dome cover is removed.
