• Turn OFF the power supply to all equipment to be used before making connections.
• Read the Instruction Manual for each piece of equipment to be used before making
connections.
• The control signal cable cannot be used for loop connection.
TX+ A
TX– B
RX+ C
RX– D
TX+ A
TX– B
RX+ C
RX– D
TX+ A
TX– B
RX+ C
RX– D
RX+ A
RX– B
TX+ C
TX– D
RM-P2580

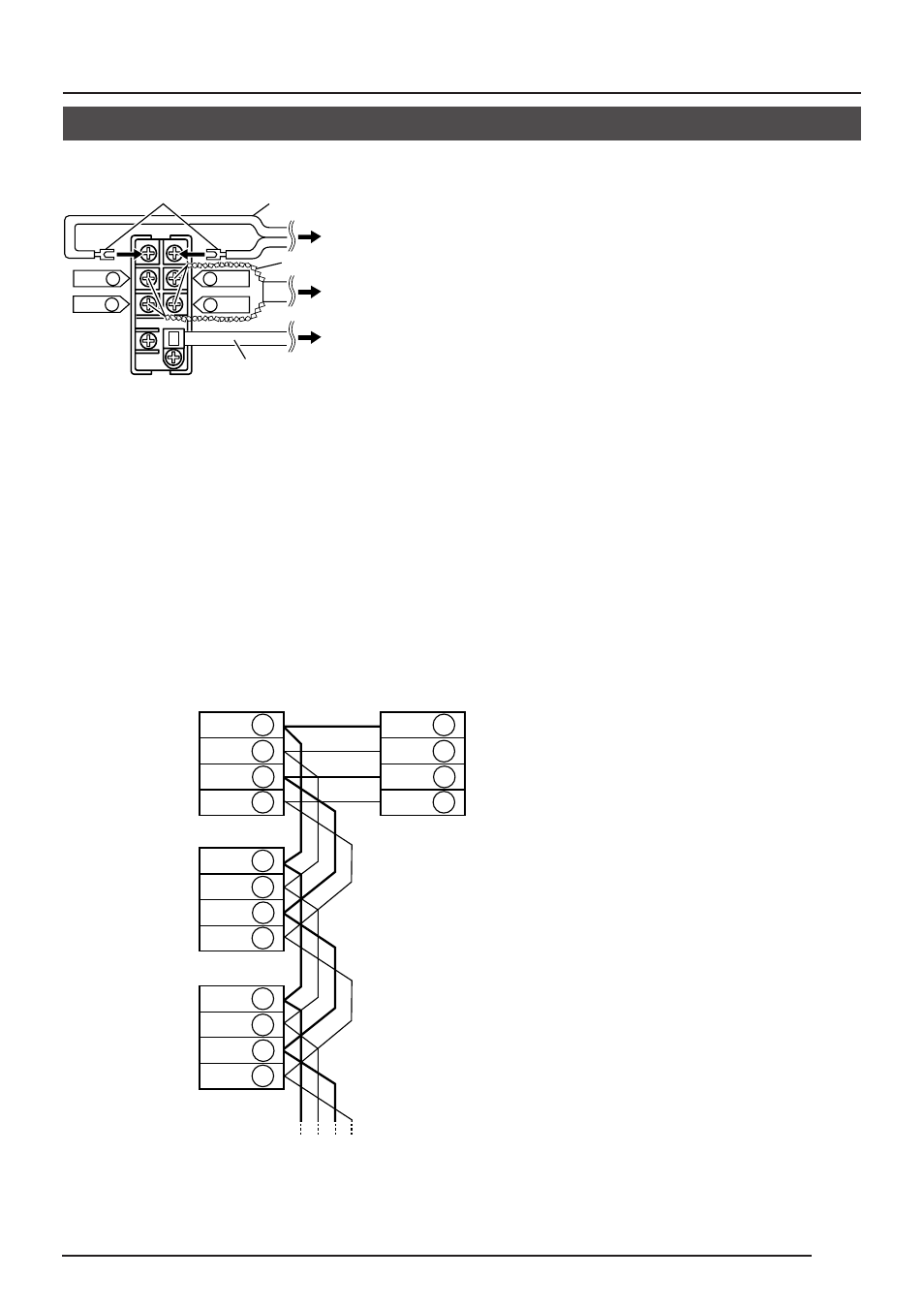

Connecting the control signal cable
(Use a twisted-pair cable for connection.
੬ See page 16.)
Connect:
Camera TX+ to RM-P2580 RX+
Camera TX– to RM-P2580 RX–
Camera RX+ to RM-P2580 TX+
Camera RX– to RM-P2580 TX–
The A B C D marks indicated on both the camera
terminals and the RM-P2580 terminals facilitate correct
connections. Connect the terminals with identical
marks.
Camera 1 terminal board
Camera 2 terminal board
Camera 3 terminal board
RX+ C
RX– D
A TX+
B TX–
Terminal board
Lug plates
DC 12 V or AC 24 V
power cable
To DC 12 V or AC 24 V power supply
Control signal cable
To Remote Control Unit (RM-P2580)
To Remote Control Unit (RM-P2580)
Video
signal cable
