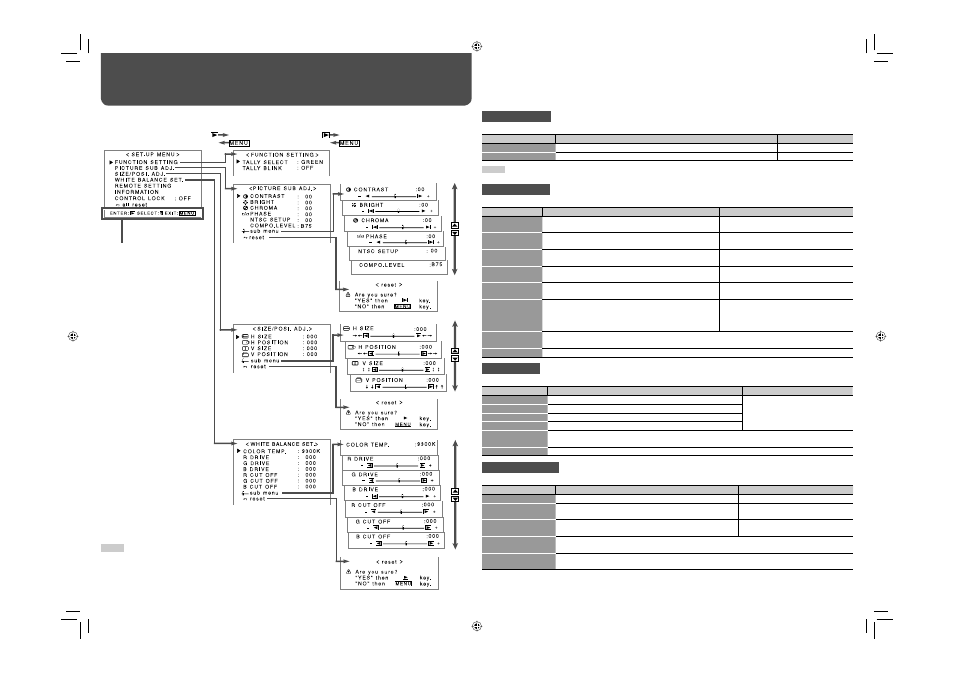

12 Menu Configuration —SET-UP MENU
FUNCTION SETTING
Setting for the tally lamp
Item To do Setting value
TALLY SELECT Select the color of the tally lamp on the upper front panel. GREEN, RED
TALLY BLINK Select the blinking time of the tally lamp till it gets lighting. OFF, 5sec., 8sec.
NOTE
The tally lamp is controlled using MAKE/TRIG. terminal of REMOTE terminals ( ☞ “External Control” on page 14).
PICTURE SUB ADJ.
Adjusts the standard level for the picture adjustment and selects the set-up level for the input video signal.
Item To do Setting value
CONTRAST* 1 Adjust the standard level for the contrast adjusted with
CONTRAST knob on the front panel. –20 – 00 – +20
BRIGHT* 1 Adjust the standard level for the brightness adjusted with
BRIGHT knob on the front panel. –20 – 00 – +20
CHROMA* 1 Adjust the standard level for the chroma adjusted with
CHROMA knob on the front panel. –20 – 00 – +20
PHASE* 1 Adjust the standard level for the phase adjusted with
PHASE knob on the front panel. –20 – 00 – +20
NTSC SETUP* 1 Select the set-up level of the input NTSC signal. 00 (compliant with 0% set-up signal), 7.5
(compliant with 7.5% set-up signal)
COMPO. LEVEL Select the level of the analog component signal. SMPTE (compliant with M2VTR signals),
B75 (compliant with BetacamVTR 7.5%
set-up signal), B00 (compliant with
BetacamVTR 0% set-up signal)
sub menu Display the sub menu which enables you to adjust the items in “PICTURE SUB ADJ.” while viewing
the actual picture.
reset Restore the default settings for all the items in “PICTURE SUB ADJ.”
SIZE/POSI. ADJ.
Adjusts the size and position of the picture.
Item To do Setting value
H SIZE* 2 Adjust the horizontal picture size.
Varies depending on the other
settings. H POSITION* 2 Adjust the horizontal picture position.
V SIZE* 2 Adjust the vertical picture size.
V POSITION* 2 Adjust the vertical picture position.
sub menu Display the sub menu which enables you to adjust the items of “SIZE/POSI. ADJ.” while viewing
the actual picture.
reset Restore the default settings for all the items in “SIZE/POSI. ADJ.”
WHITE BALANCE SET.
Selects the color temperature and adjusts the drive level and cutoff point of each color (R/G/B).
Item To do Setting value
COLOR TEMP. Select the color temperature. 9300K, 6500K, USER
R DRIVE, G DRIVE,
B DRIVE*
3
Adjust the drive level of each color (red, green, and blue). MIN – 000 – MAX (in 256 grades)
R CUT OFF, G CUT
OFF, B CUT OFF*
3
Adjust the cutoff point of each color (red, green, and blue). MIN – 000 – MAX (in 256 grades)
sub menu Display the sub menu which enables you to adjust the items in “WHITE BALANCE SET.” while
viewing the actual picture.
reset Restore the default settings for the drive levels and cutoff points of the selected color
temperature.
* 1 Memorized for each input.
* 2 Memorized for each signal format.
* 3 Memorized for each color temperature (9300K, 6500K, USER).
For the operation procedure, see page 7.
Operation guide
Shows the buttons for
each operation.
NOTE
• The menu automatically disappears in about 30 seconds after the last menu
operation.
• Some items may not appear on the menu depending on the input or the input
signal. These items are not available.
