6

XA4200, XA4300

®

Inputs, RCA Output, Remote Level Control

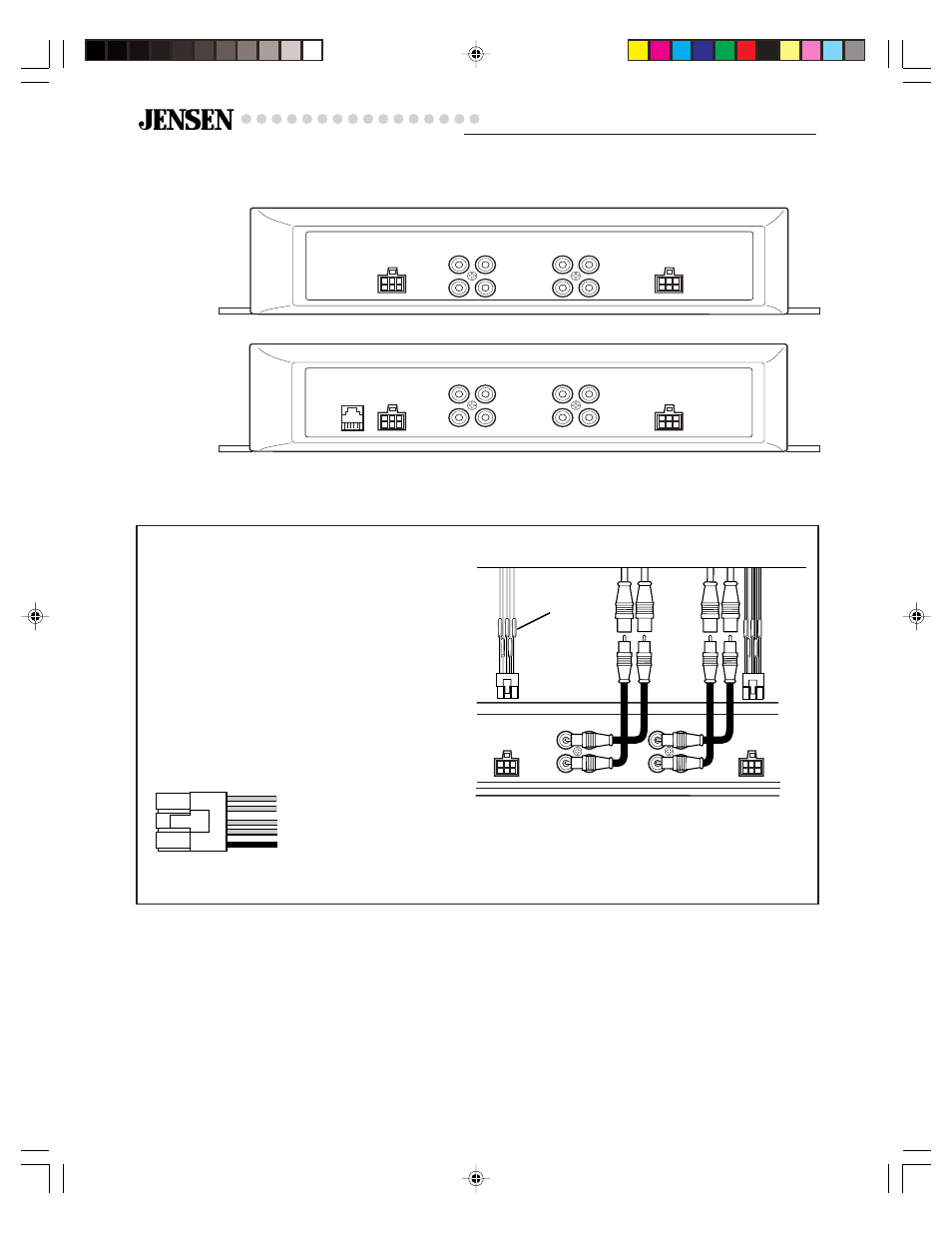

Input Wiring

Low Level Input (RCA Input)

Low level (RCA) input is preferred for best
performance. Most trunk/hatchback installations
will require a 15-20 foot RCA cable. While pick-
up trucks and under-seat mounting will require
a 6-10 foot RCA cable. Connect an RCA cable
from your receiver to the RCA input on your
amplifier.

High Level Input

High level input should be used when an RCA
output is not available from the receiver.
Connect the speaker outputs from the receiver
to the high level input connector.

Important
Only connect the low (RCA) or high level input.
Do not use both at the same time.

LR

RR

LR

RR

INPUT

OUTPUT

LF

RF

LF

RF

REAR

HI-LEVEL

FRONT

HI-LEVEL

INPUT

OUTPUT

LR

RR

LR

RR

INPUT

OUTPUT

LF

RF

LF

RF

REAR

HI-LEVEL

FRONT

HI-LEVEL

INPUT

OUTPUT

Splice

(as necessary)

Hi Level

Low Level

Hi Level

Radio

XA4200

XA4300

LR

RR

LR

RR

INPUT

OUTPUT

LF

RF

LF

RF

REAR

HI-LEVEL

FRONT

HI-LEVEL

REMOTE

BASS

INPUT

OUTPUT

White = Left (+)
White/Black = Left (–)
Gray = Right (+)
Gray/Black = Right (–)
Black (ground)

5910 XA4CH_E.p65

01/23/01, 12:24 PM

6
