Adjust the crossover to accommodate your
chosen installation method.
• LPF–(low pass filter) Select
this filter when the amplifier will
be driving woofers or
subwoofers.
• FULL–Crossover is not active,
amplifier is in “full range”
mode.
• HPF–(high pass filter) Select
this filter when the amplifier will
be driving full range/separate
speakers, and you want to limit
the “bass” going to these
speakers.

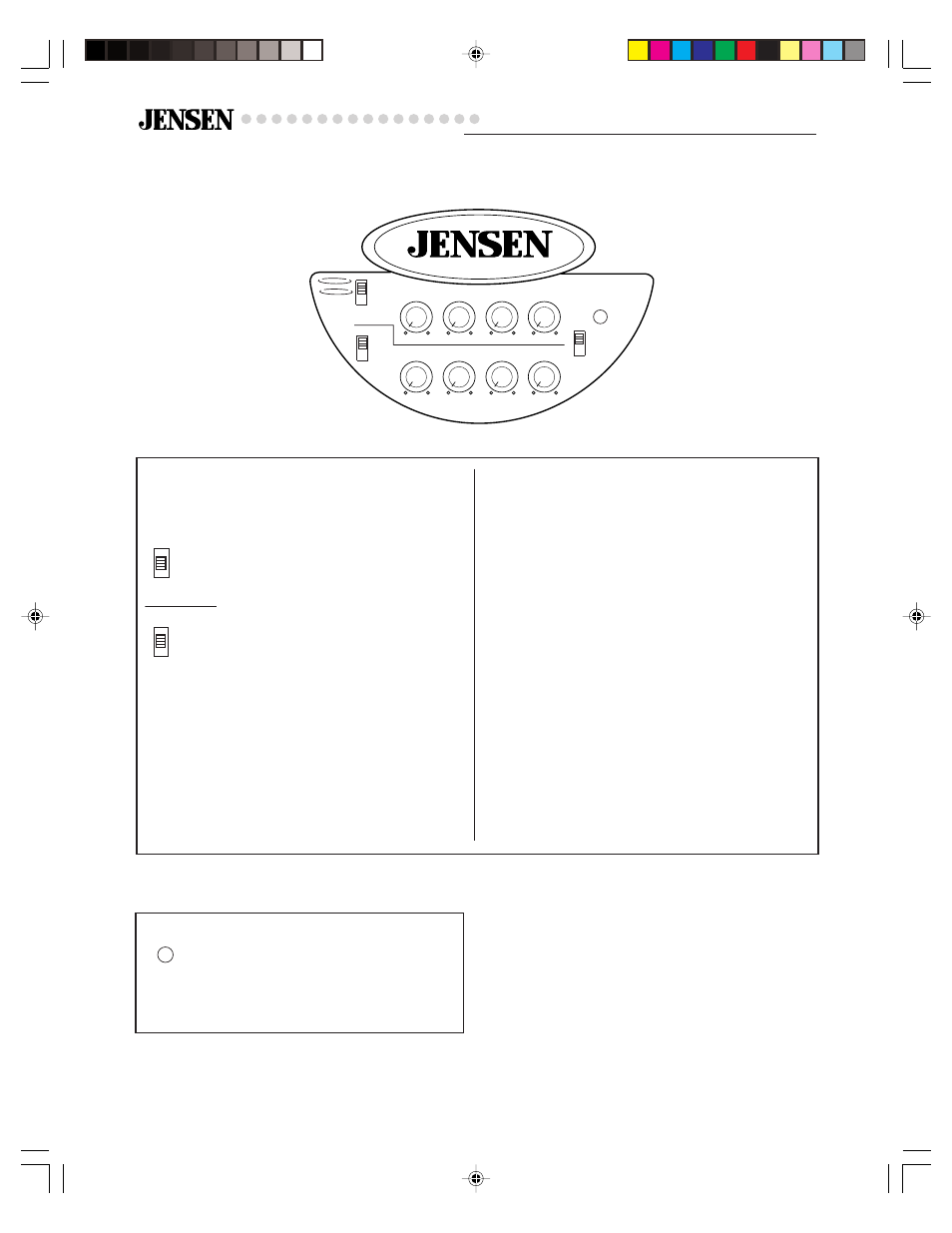

Crossover (X-OVER)
Indicators and Controls
A dual status LED indicator illuminates
red or green to indicate the status of
the amplifier.
Power / Protect Light
Green – Power applied, ON
Red – Protection circuit activated, STANDBY
Tri-mode/Three channel operation
An amplifier is usually configured for tri-mode
operation when you want to use one amplifier to
drive a pair of front speakers and subwoofer(s).
In other words, when you want drive a complete
system with one amp. Your Jensen amplifier is
capable of tri-mode operation.
Important
Tri-mode operation requires using “passive
crossovers”. These crossovers are available at
your local retailer or install shop. Failure to
install these filters may damage your amplifier
and/or your speakers.
