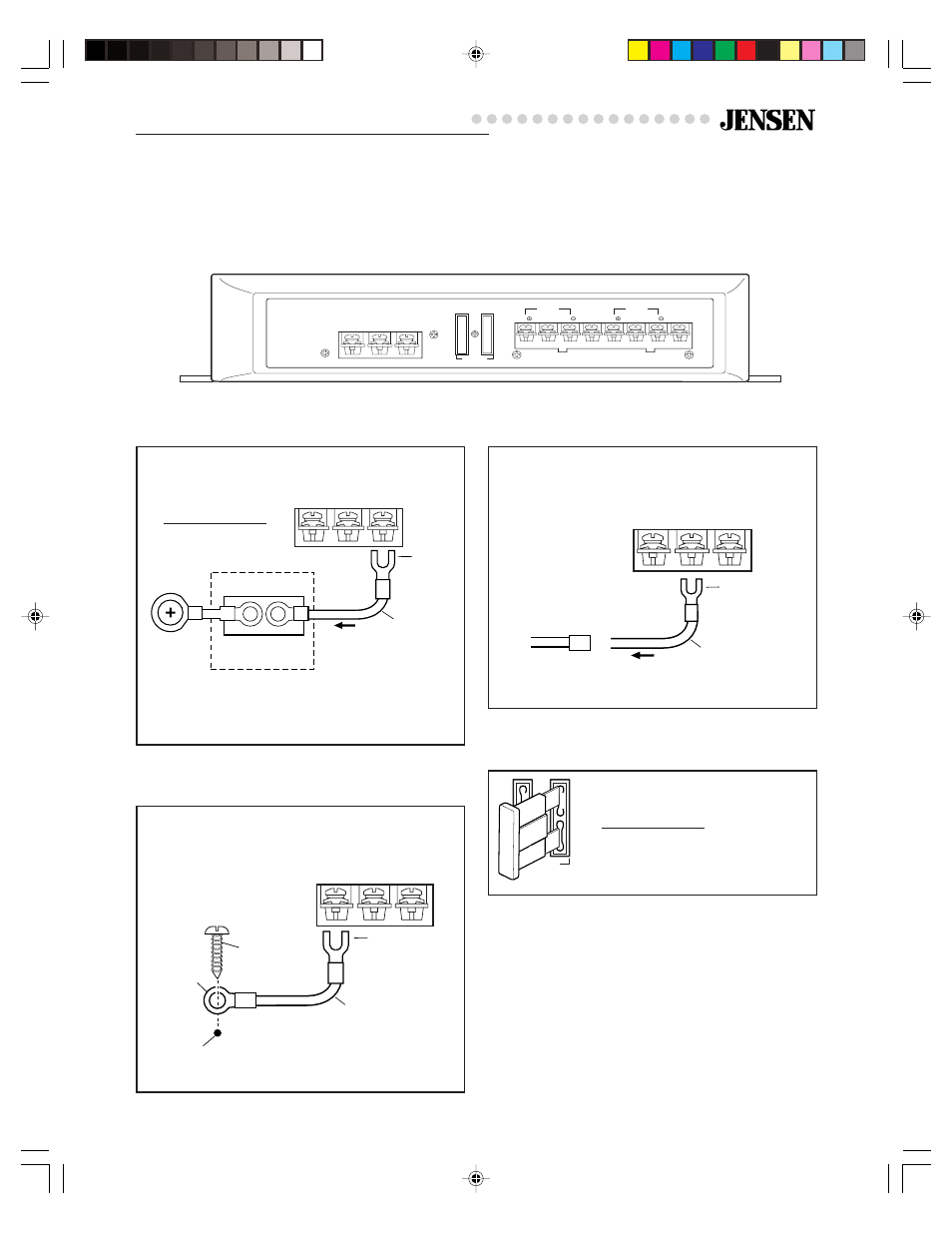

Wiring
Power
Remote Terminal (REM)
Power Terminal (+12V)
Connect directly to the vehicle battery+
terminal with 8 gauge wire (minimum).
Ground Terminal (GND)
Connect to a good chassis ground. The ground
connection should be to clean, unpainted metal
to provide a good electrical connection.
Connect the power antenna/amplifier turn-on
lead from the receiver to the AMPLIFIER
REMOTE terminal.
Use only blade-type fuses.
Fuses
Spade
Connector
8 Gauge
Wire
To Battery+
Terminal
Fuse or
Circuit Breaker
Battery
Terminal
Adapter
Install as close
to the battery
as possible
REM
GND
+ 12V
Drill 1/8" hole
in chassis
sheet metal
Sheet Metal
Screw
Spade
Connector
8 Gauge
Wire
REM
GND
+ 12V
To Receiver
Power
Antenna Lead
Spade
Connector
18 Gauge
Wire
REM
GND
+ 12V
FUSE
FUSE
RF
RF
LF
LF
–
–
+
+
BRIDGE
BRIDGE
REM
GND
+ 12V
RR
RR
LR
LR
Note:
This amplifier will only work with 12-volt systems.
Fuse:
XA4200
50 AMP
XA4300
60 AMP
Fuse:
XA4200
25 AMP
XA4300
30 AMP
