4 channel, 3 channel, 2 channel – Jensen XA4200 User Manual
Page 11: 2ch/3ch/4ch, High inputs
®
XA4200, XA4300
11

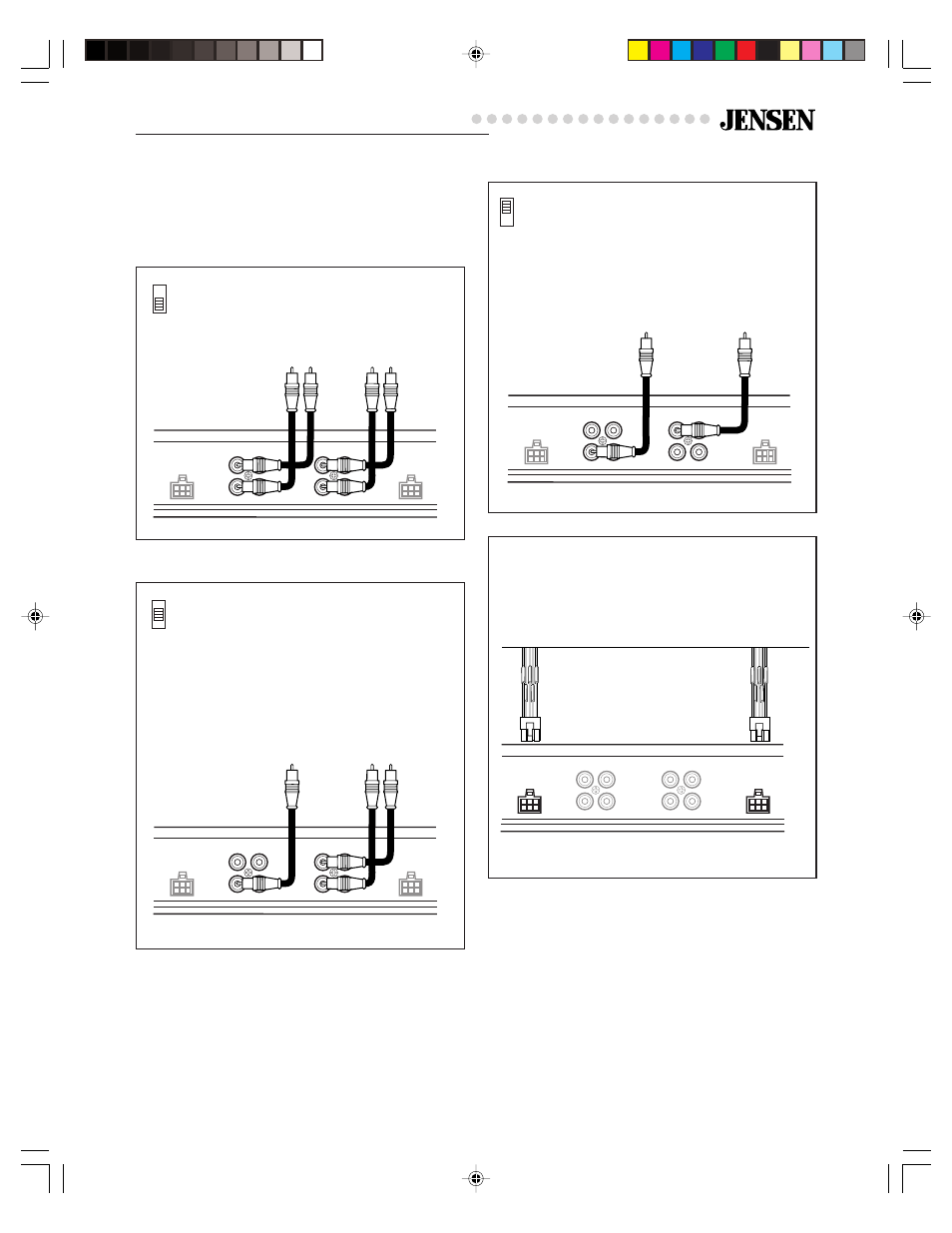

When the input selector is set to
4 CH, the amplifier will operate as
a standard 4 channel amp with all
RCA inputs connected.
4 Channel
2CH
4CH
3CH
LR
RR
INPUT
OUTPUT
LF
RF
REAR
HI-LEVEL
FRONT
HI-LEVEL
INPUT
OUTPUT
When the input selector is set to
3 CH, the amplifier is configured for
stereo/mono operation. The front
channels of the amplifier operate in
stereo mode. The rear channels of
the amplifier are internally bridged
for mono operation. In 3 CH the
following RCA inputs will be used:
3 Channel
2CH
4CH
3CH
RR
INPUT
OUTPUT
LF
RF
REAR
HI-LEVEL
FRONT
HI-LEVEL
INPUT
OUTPUT
When the input selector is set to
2 CH, the amplifier is configured for
bridged stereo operation. The
amplifier will need a two channel
input even though there are four
inputs. In the 2 CH the following
inputs will be used:
2 Channel
2CH
4CH
3CH
RR
INPUT
OUTPUT
LF
REAR
HI-LEVEL
FRONT
HI-LEVEL
INPUT
OUTPUT
2CH/3CH/4CH
The XA4200/XA4300 can be configured for three
different input modes: 4 channel, 3 channel or
2 channel.
Note
Although the above illustrations indicate the
low level input being used, the same
connections would apply to the high level
input.
INPUT
OUTPUT
REAR
HI-LEVEL
FRONT
HI-LEVEL
INPUT
OUTPUT
High Inputs
