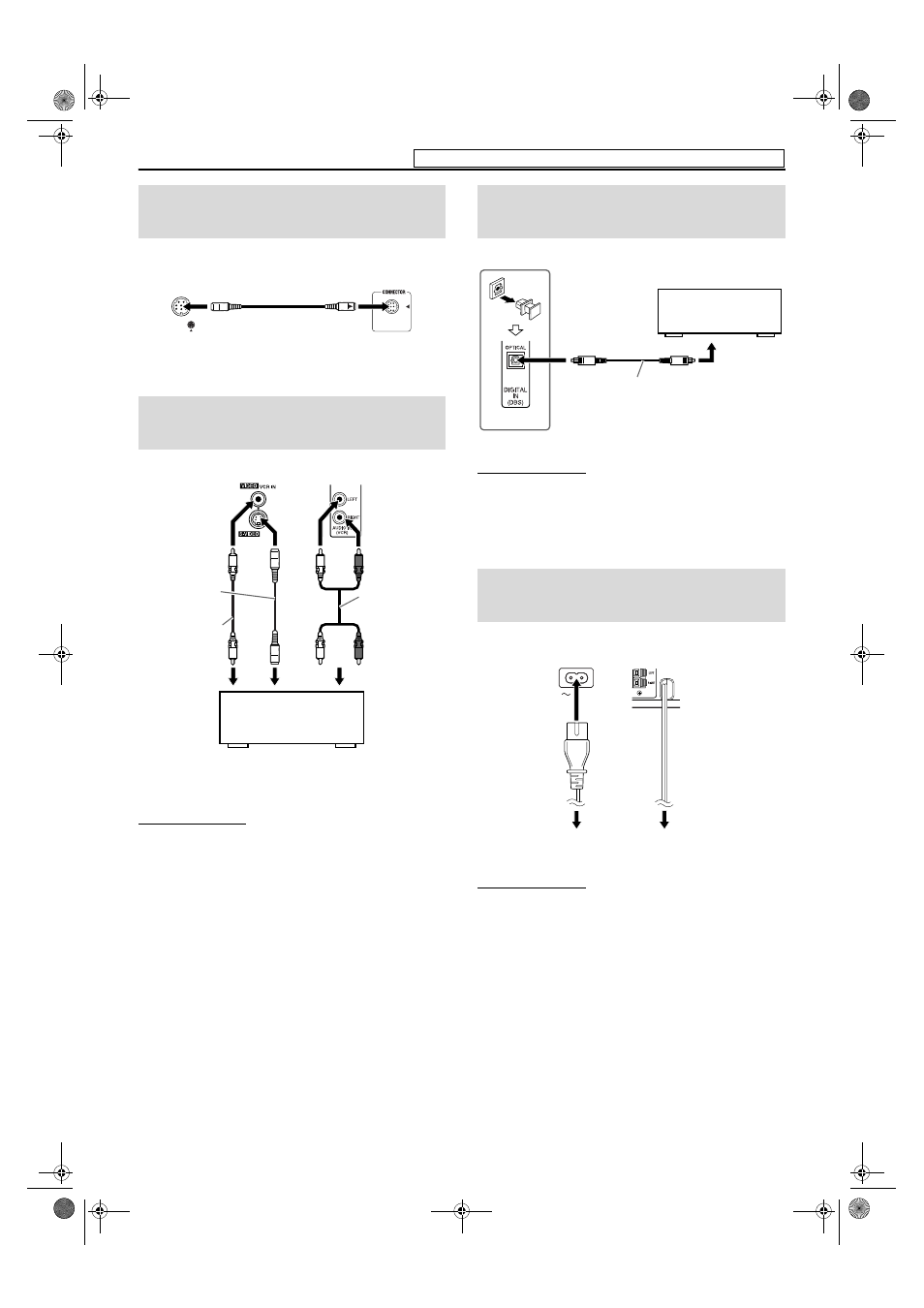

Connections
11
You can enjoy the sound of an analog component.
NOTE
• The signals input to the VIDEO jack of the VCR IN jacks will be
output only from the VIDEO jack of the VIDEO OUT jacks, not from
the S-VIDEO jack of the VIDEO OUT jacks.
• If you connect a sound-enhancing device such as a graphic equalizer
between the source components and this system, the sound output
through this system may be distorted.
You can enjoy the sound of a digital component.
* DBS = Direct Broadcasting Satellite
NOTE
When playing a video component such as a DBS tuner;
• To listen to the sound, select “DBS D” as the source to play.
( A pg. 15)
• To see the picture, connect the video output jack of the component to
the video input jack of the TV directly, and select the correct input
mode on the TV.
Make sure that all other connections have been completed.
CAUTION
• Disconnect the power cord before cleaning or moving the system.
• Do not pull on the power cord to unplug the cord. When unplugging
the cord, always grasp and pull the plug so as not to damage the cord.
• (Except for the countries of Middle East) If the AC outlets do not match
the AC plugs, use the supplied AC plug adapters.
Connecting the powered
subwoofer
Connecting to an analog
component
FROM
XV-THC3
XV-THS55
XV-THS58
XV-THS66
Powered
subwoofer
System cord
(supplied)
Center unit
Align the 5 marks. Align the 5 marks.
RCA pin plug
cord
(not supplied)
1 To composite video output
2 To S-video output
3 To audio output
1 2 3
Center unit
VCR ( 1 3 or 2 3 )
TV ( 3 )
Cassette recorder ( 3 )
Composite
video cord
(not supplied)
S-video cord
(not supplied)
or
Connecting to a digital
component
Connecting the power
cord
Digital optical cord
(not supplied)
To digital optical
output
DBS * tuner
MD player
Center unit
AC IN
Center unit Powered
subwoofer
Power cord
(Supplied)
Power cord
Plug into AC outlets.
Do not connect the power cord until all other connections have been made.
