Connections
9
CAUTION
• When you connect speakers other than the supplied ones, use
speakers of the same speaker impedance (SPEAKER IMPEDANCE)
indicated near the speaker terminals on the rear of the powered
subwoofer.
• DO NOT connect more than one speaker to one speaker terminal.
Precautions for daily use
• When moving the speakers, do not pull the speaker cords;
otherwise, the speakers may fall over, causing damage or injury.
• When holding a speaker, always grasp the lower portion.
• Do not lean against the speakers, as the speakers could fall down
or break, possibly causing an injury. Especially be careful that
children do not lean against them.
• Do not reproduce sounds at so high a volume that they are
distorted; otherwise, the speakers may be damaged by internal
heat buildup.

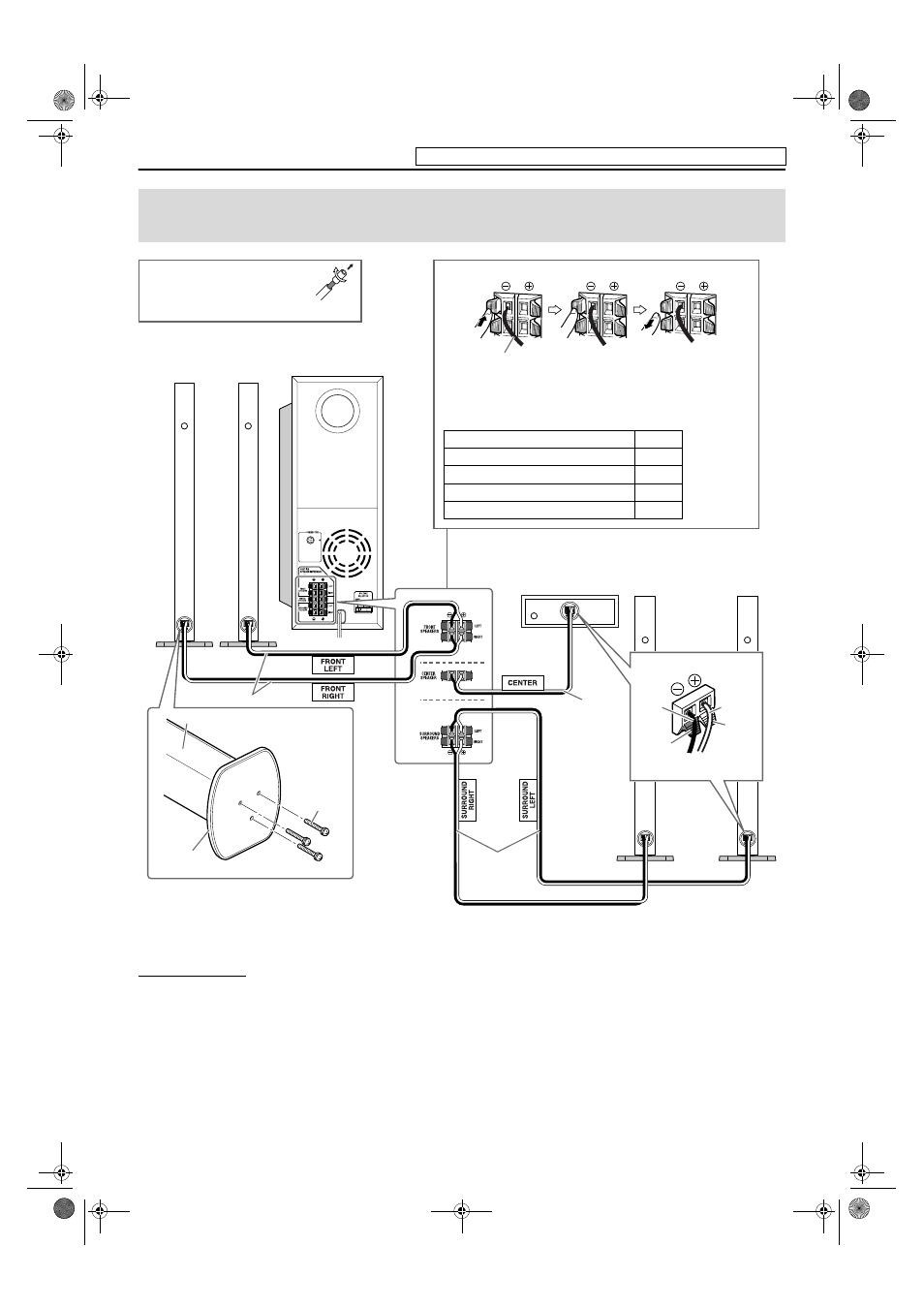

Connecting the satellite (front, center, surround)
speakers
4 Ω 16Ω
• Connect the black cords to the black (r) terminals.
• Connect the white cords to the (q) terminals referring to the table
below:
Speaker cord (supplied)
FRONT SPEAKERS (LEFT) White
FRONT SPEAKERS (RIGHT) Red
CENTER SPEAKER Green
SURROUND SPEAKERS (LEFT) Blue
SURROUND SPEAKERS (RIGHT) Gray
Before connecting the
speaker cords;
Twist and pull the insulation coat
off and remove.
Powered subwoofer
SP-PWS77
Center speaker
SP-THS77C
White
Black
Black
Red
Surround speakers
SP-THS77S
4 m
10 m
4 m
Front speakers
SP-THS77F
Speaker (rear side)
Screw M4 x
40 mm
(supplied)
Base plate
Do not connect the power cord until all other connections have been made.
