Chapter 5---Electronics
5-16 Model 250 Service Manual
6. Pull the black card extractor handles back to disconnect the Video
Processor PCB connector and pull the PCB out of the Electronics Module.
7. Reverse the procedure to install the Video Processor PCB.
5.5 Raster Timing Generator PCB
Raster Timing Generator PCB - Main Functions
! Generates an internal sync pulse
! Detects and selects sync pulses
! Generates a phase locked sync
! Generates blanking pulse
! Provides horizontal and vertical phase adjustments
! Detects interlaced and generates odd field pulse
! Selects horizontal frequency band
! Generates horizontal line count and vertical count
! Provides IIC interface
! Generates clamp pulse
! Detects changes in source
! Generates HVPS_SYNC signal
! Enables horizontal deflection (/H_ENA) circuitry

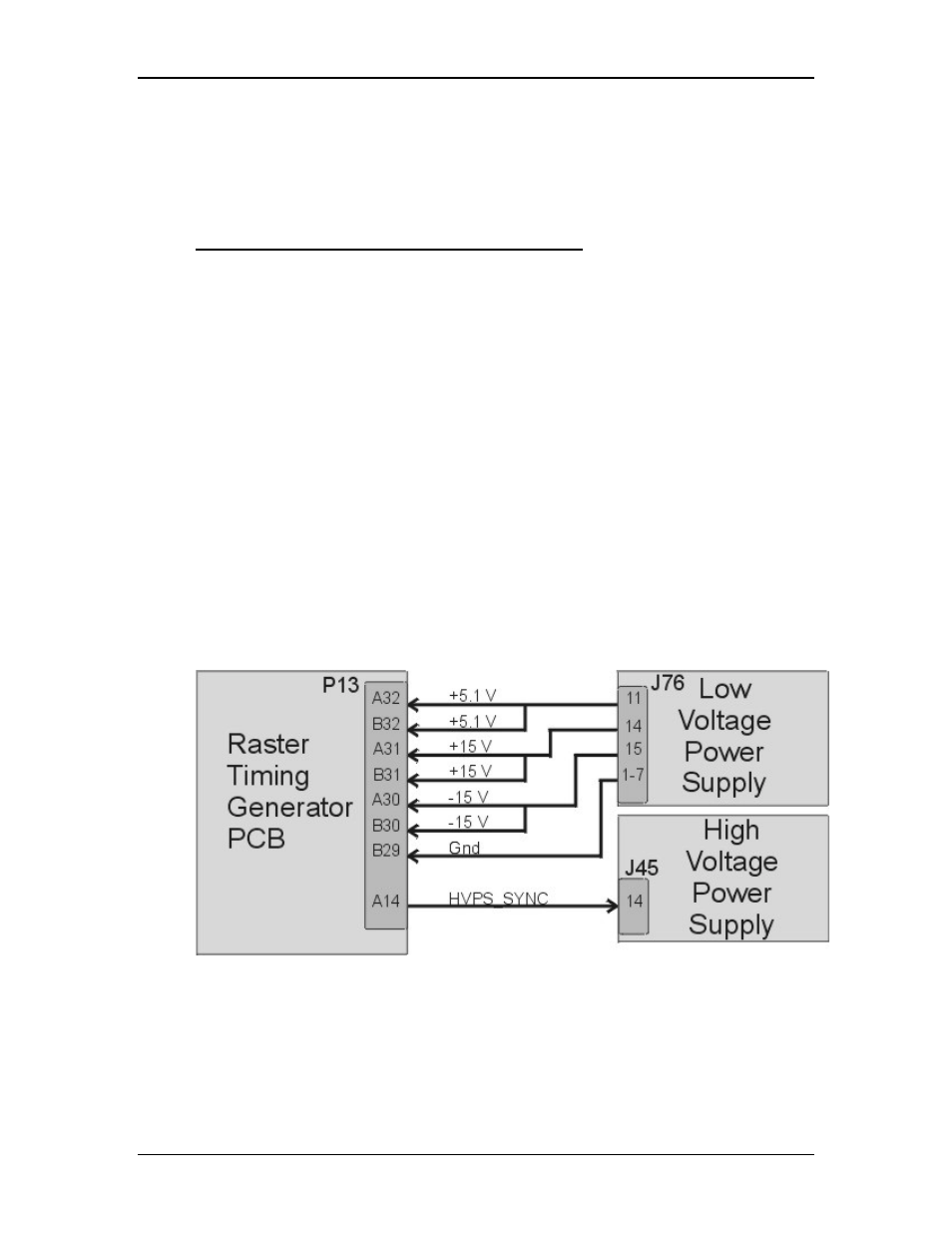

Figure 5-10 Raster Timing Generator I/O diagram for Power Supplies.
