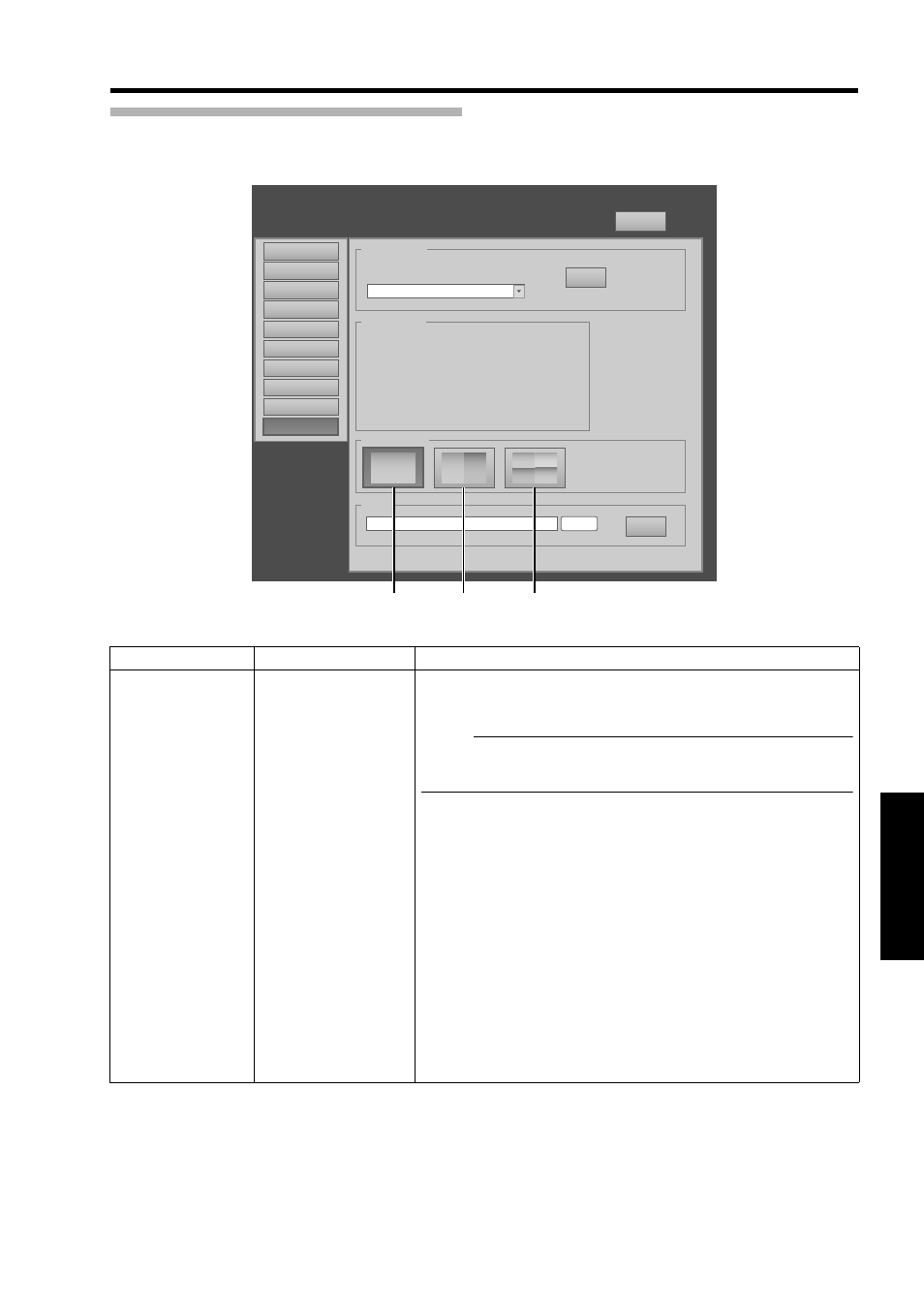

(10) Admin.Signal Menu
This menu is for configuring settings such as display format, and for rewriting EDID.
ⅷ indicates the factory default.
Logout
host PJ-1
user: advanced
Display Mode
1 1
3
3
1 2
4
Main
Setting
Convergence
Lens
Option
Admin.Network
Admin.Option
Admin.Signal
Admin.E-Mail
EDID
SET Browse
Force Signal
SET
OFF
OFF
DVI Rate(Hz) Pixel H Pixel V Link
1 60.00 2048 2400 Dual
2
3 60.00 2048 2400 Dual
4
Signal Status
Single Double Cross
Item Setting Value Description
Force Signal Q OFF
4096 ן2400, None,
Dual
4096
ן2400, None,
Single
2048
ן2400,
2Stripe, Dual
2048
ן2400,
2Stripe, Single
2048
ן1200,
Cross, Dual
2048 ן1200,
Cross, Single
1024 ן2400,
4Stripe, Dual
1024 ן2400,
4Stripe, Single
For forcibly configuring the output signal. Make use of this setting
when there is no display due to configuration changes at the input
source.
NOTE:
● Some portions of the image may not be displayed and the image
may become noisy.
OFF : Turns off the display by force.
4096
ן2400, None, Dual
: Displays a normal screen using dual link.
4096 ן2400, None, Single
: Displays a normal screen using single link.
2048 ן2400, 2Stripe, Dual
: Displays a 2 stripes screen using dual link.
2048
ן2400, 2Stripe, Single
: Displays a 2 stripes screen using single link.
2048 ן1200, Cross, Dual
: Displays a cross screen using dual link.
2048 ן1200, Cross, Single
: Displays a cross screen using single link.
1024
ן2400, 4Stripe, Dual
: Displays a 4 stripes screen using dual link.
1024 ן2400, 4Stripe, Single
: Displays a 4 stripes screen using single link.
