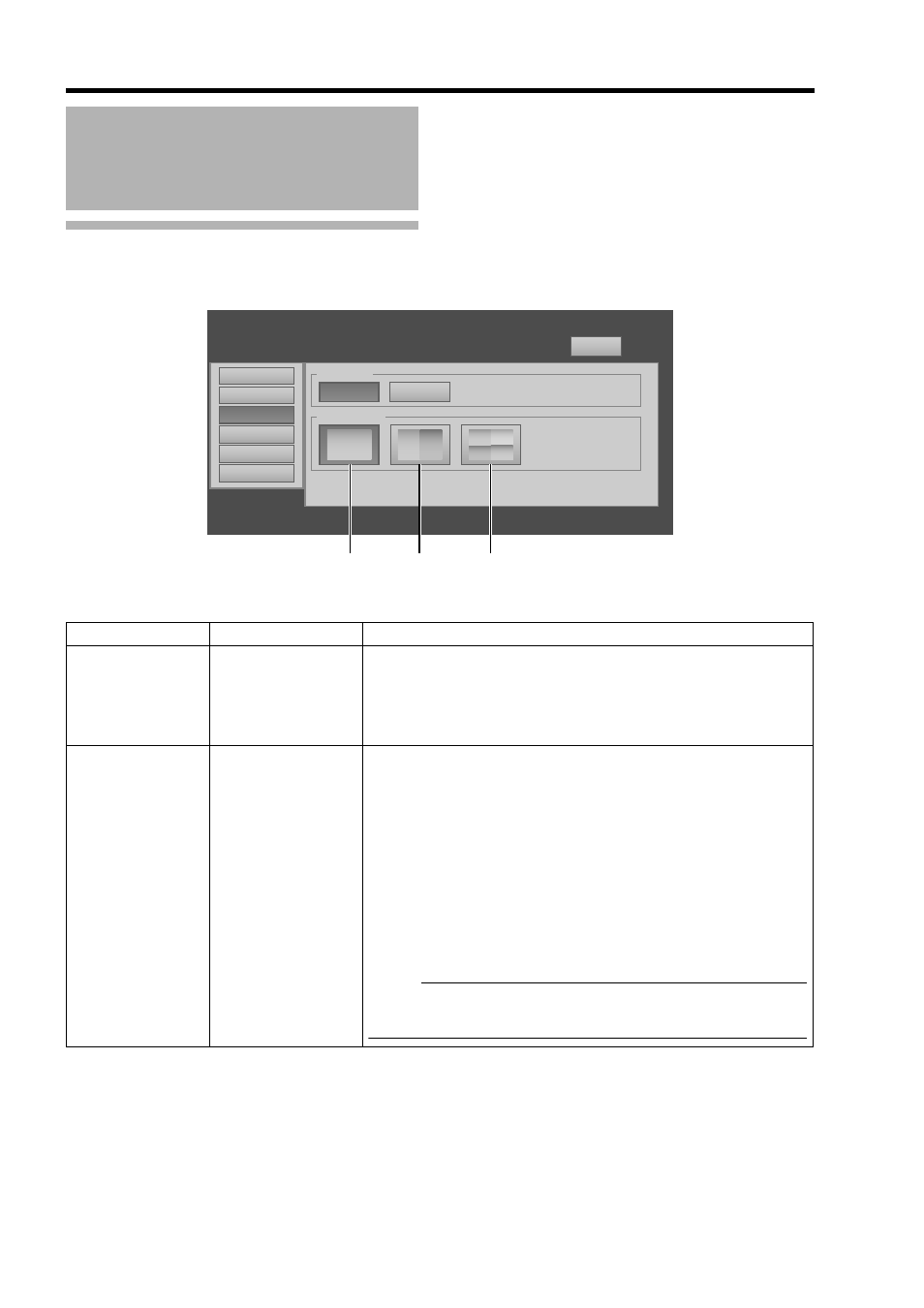

Operation and Settings
(3) Setting Menu
This menu is used for specifying the input level of the terminal and the display mode.
ⅷ indicates the factory default.
User Settings Menu
(Cont’d)
Setting
Convergence
Lens
Option
Logout
host PJ-1
user: root
Input Level Main
0-255(PC)
Display Mode
16-235
1 1
3
3
1 2
4
Single Double Cross
Item Setting Value Description
Input Level Q 0-255(PC)
16-235
For specifying the input level of the video signals.
0-255(PC) : Set to this value under normal circumstances.
(Signal level 0 to 255)
16-235 : For specifying when the signal level is between 16
and 235.
Display Mode Q Single
Double
Cross
For specifying the display mode of the projection screen.
Single : Displays input signals on a single screen.
Double : Displays two different input signals on two screens.
The left screen displays images of the DVI 1 terminal,
and the right screen displays images of the DVI 3
terminal.
Cross : Displays four different input signals on four screens.
The top left screen displays images of the DVI 1
terminal, the top right screen displays images of the DVI
2 terminal, the bottom left screen displays images of the
DVI 3 terminal, while the bottom right screen displays
images of the DVI 4 terminal.
NOTE:
● Please refer to AConnecting Video Signals of the ComputerB for
details. ( A Page 20 to 23)
