24
Network Settings
Connect this projector, the computer for controlling this
projector, and the switching hub using LAN cables,
followed by configuring the network.

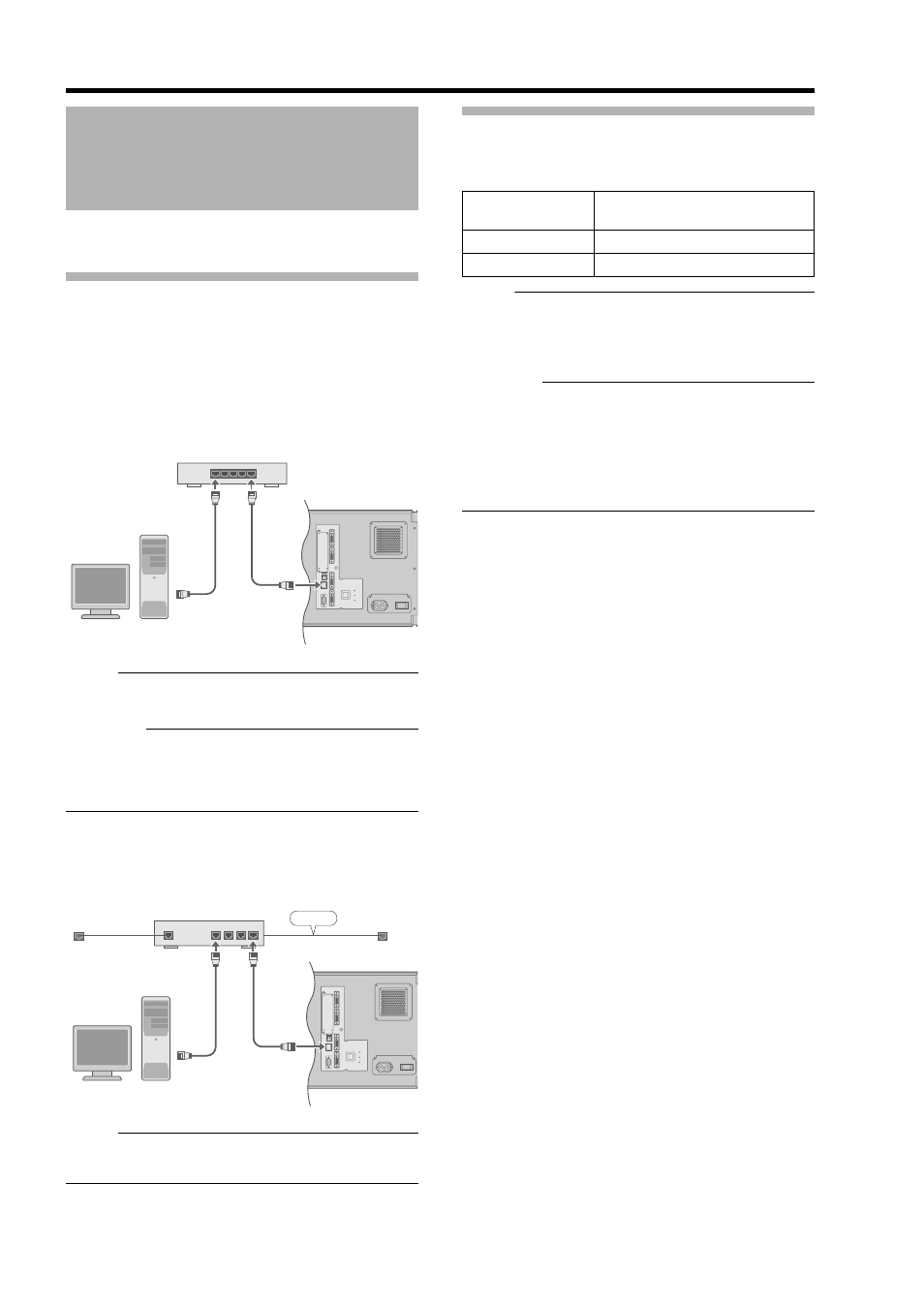

Connection Example
Ⅵ When assigning a static IP address
You can acquire the IP address from the controlling
computer simply by configuring a network that consists of
this projector, the controlling computer, and switching
hub. Please refer to technical books on networks for
details.
NOTE:
● Make use of Cat. 5 (equivalent or higher) straight
100Base-TX LAN cables.
CAUTION:
● When connecting this projector and the controlling
computer for this projector using other network, be
sure to consult the network administrator of the
network in use or refer to technical books on networks.
Ⅵ When assigning IP address from the DHCP
server
NOTE:
● Make use of Cat. 5 (equivalent or higher) 100Base-TX
LAN cables.
Specifications of PC for
Controlling this Projector
NOTE:
● Make use of Internet Explorer Ver. 6.0.
● Windowsா is either registered trademark or trademark
of Microsoft Corporation in the United States and/or
other countries.
CAUTION:
● The PC specifications above are reference values for
the application software to run smoothly, and are not
intended to guarantee their operation.
Note that the applications may not run smoothly
depending on the condition of use of the respective
users even when the system requirements are
satisfied.
Connection Using a LAN
Cable
OPERATE I/ B
DVI 3
USB
LAN
RS-232C
STANDBY/ON
CONTROL
LAMP
WARNING DVI 4
DVI 1
DVI 2
Switching Hub
To Network
Terminal
To LAN
Terminal
LAN1 WAN LAN2 LAN3 LAN4
OPERATE I/ B
DVI 3
USB
LAN
RS-232C
STANDBY/ON
CONTROL
LAMP
WARNING DVI 4
DVI 1
DVI 2
Router
(DHCP Server)
LAN
To Network
Terminal
To LAN
Terminal
OS Windows XP Professional SP2/
Windows XP Home Edition SP2
CPU Pentium3 1 GHz or higher
Memory 256 MB and above
