6

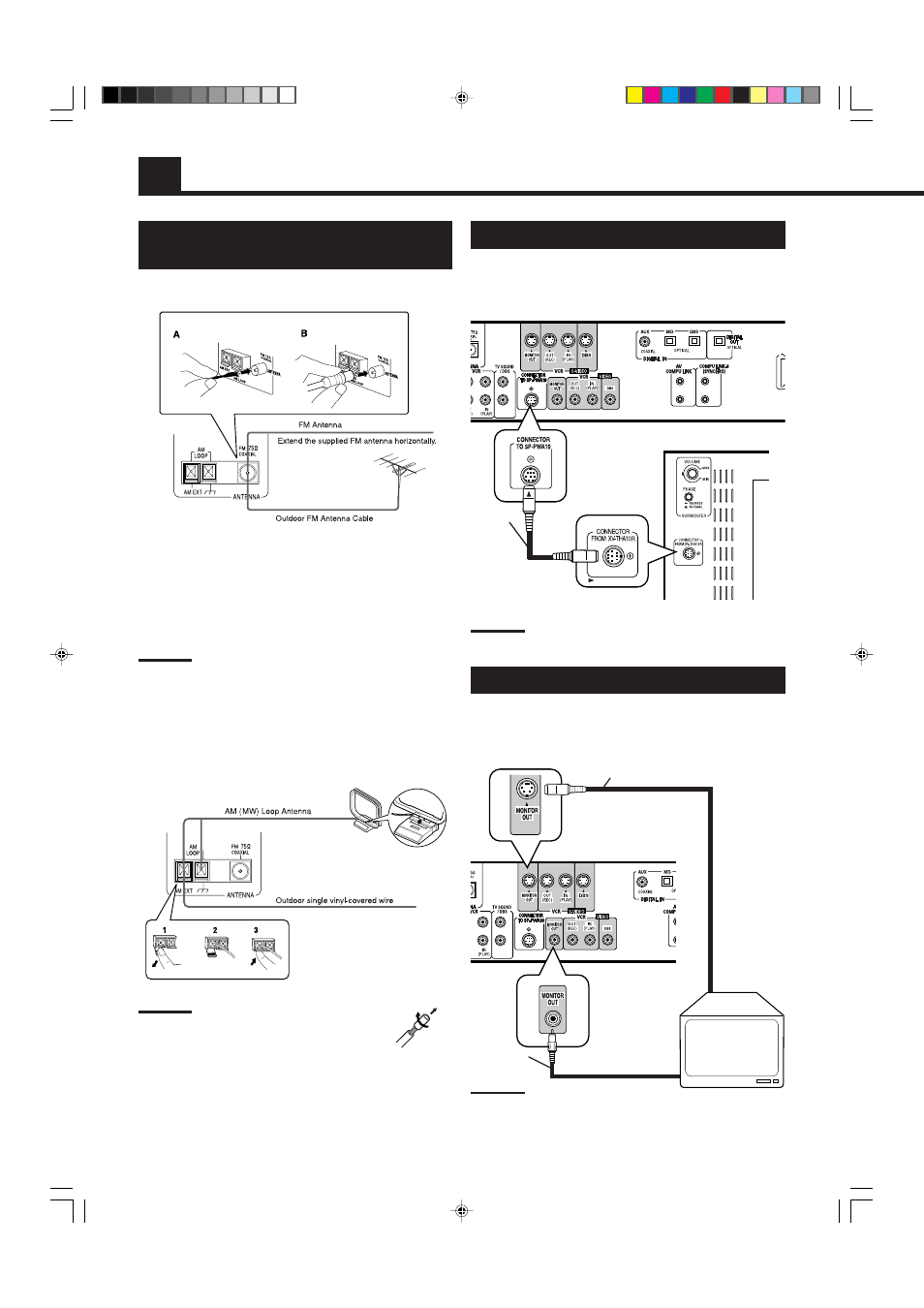

Connections
Connecting the FM and AM (MW)
antennas
FM antenna connections ———————————
A. Using the supplied FM antenna
The FM antenna provided can be connected to the FM 75
Ω
COAXIAL terminal as temporary measure.
B. Using the standard type connector (Not supplied)
A standard type connector should be connected to the FM 75
Ω
COAXIAL terminal.
Note:
• If reception is poor, connect the outdoor antenna.
Before attaching the 75
Ω
coaxial cable (the kind with a round
wire going to an outdoor antenna), disconnect the supplied FM
antenna.
AM (MW) antenna connections —————————
Turn the loop until you have the best reception.
Notes:
• If the AM (MW) loop antenna wire is covered with
vinyl, remove the vinyl by twisting it as shown
in the diagram.
• Make sure the antenna conductors do not touch any other
terminals, connecting cords and power cord. This could cause
poor reception.
• If reception is poor, connect an outdoor single vinyl-covered wire
to the AM EXT terminal. (Keep the AM (MW) loop antenna
connected.)
To connect the powered sub-woofer
Use the supplied system cable to connect the powered sub-woofer
(SP-PWA10).
Center unit (XV-THA10R)
Powered sub woofer (SP-PWA10)
Connecting the TV
Connect the TV to view video images from the center unit.
Notes:
• When connecting the TV to the TV SOUND/DBS jacks, DO NOT
connect the TV’S-video output to these video input terminals.
• Do not connect the unit to an NTSC television. Connect it to a
PAL television.
Center unit (XV-THA10R)
S-video cable (not supplied)
Connect to the TV if it has an S-video input (for
higher image quality). Connect the cables with
the
£ mark facing down.
System
cable
(supplied)
Video cable
(supplied)
To composite
video input
To S-video
input
Ensure that the £
mark on the plug
faces to the right.
Ensure that the
£ mark on
the plug faces
upwards.
CAUTION:
• Use the system cable provided for attaching the center unit and
the sub woofer.
