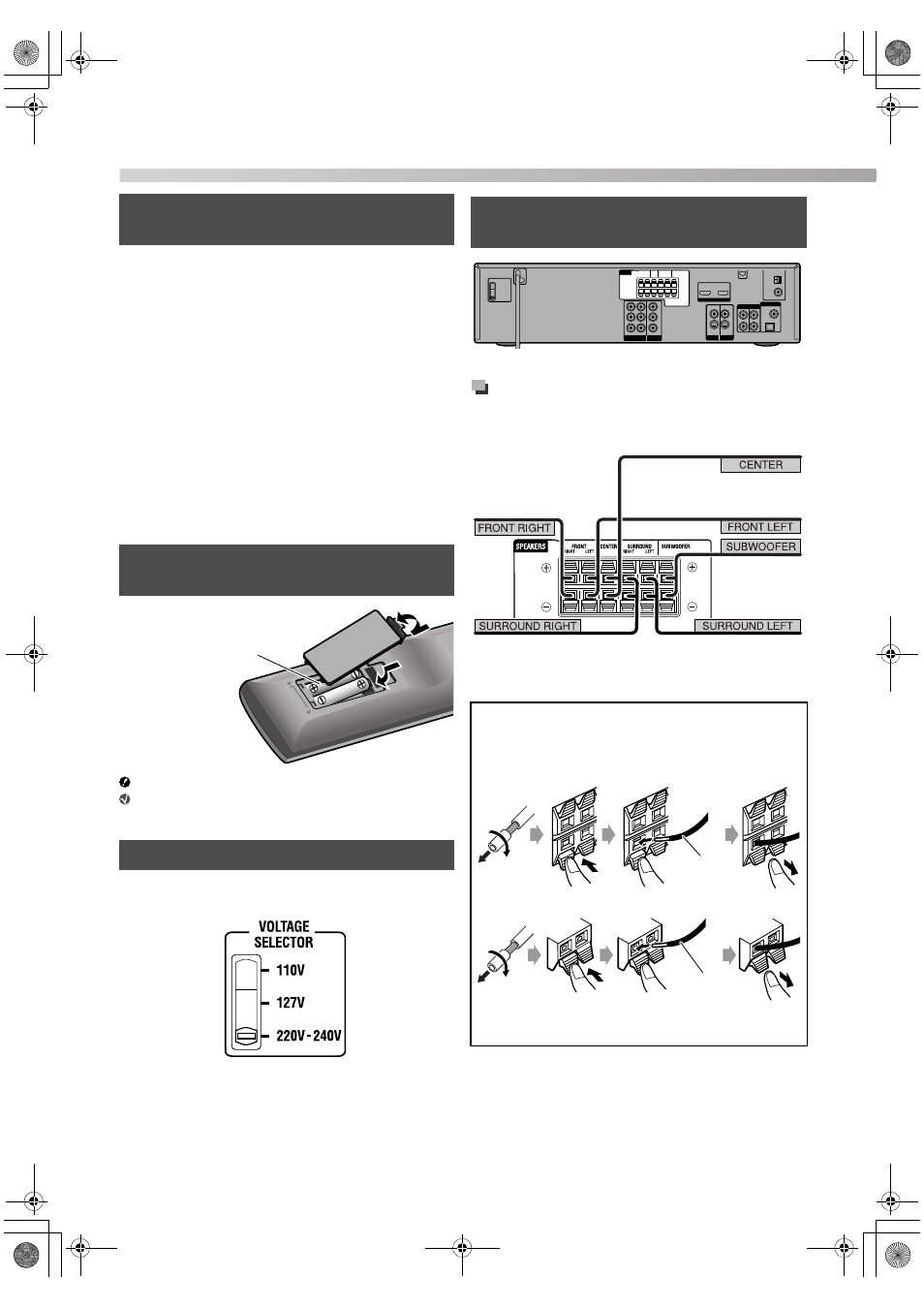

5

If anything is missing, contact your dealer immediately.
• Remote control (x 1)
• Batteries (x 2)
• FM antenna (x 1)
• AM loop antenna (x 1)
• Composite video cord (x 1)
• AC plug adapter (x 1)
• Docking station for iPod (x 1)
• Speaker cords

– TH-D70: 4 m (x 4), 10 m (x 2)
– TH-D50: 3 m (x 4), 8 m (x 2)

• Feet

– TH-D70: For surround speakers (x 8)
– TH-D50: For front and surround speakers (x 16)

• Screws (TH-D70 only): M5 x 115 mm (x 6), M4 x 25 mm

(x 4)

Do not expose batteries to heat or flame.
If the range or effectiveness of the remote control
decreases, replace both batteries.

Before plugging in, set the correct voltage for your area with
the voltage selector switch on the rear of the center unit.

Connecting the speakers and the
subwoofer to the System

Checking the supplied

accessories

Putting batteries into the remote

control

Setting the voltage selector

R03 (UM-4)/AAA (24F) type
dry-cell batteries (supplied)

Ex.: When setting to “220V-240V”

Connecting the speakers and

subwoofer

Connecting the speaker cords
Connect the speaker cords both to the center unit and to
each speaker.

On the center unit:

On the speaker:

• Connect the black cords to the r terminals.
• Connect the white cords to the q terminals.

Center unit

To front right speaker
(SP-THD7F/SP-THD5F)

To center speaker

(SP-THD7C/SP-THD5C)

To front left speaker

(SP-THD7F/SP-THD5F)

To subwoofer

(SP-THD7W/

SP-THD5W)

To surround left speaker
(SP-THD7S/SP-THD5S)

To surround right speaker
(SP-THD7S/SP-THD5S)

Speaker cord

Speaker cord

Getting started

TH-D70D50[UJ].book Page 5 Friday, June 1, 2007 1:42 PM
