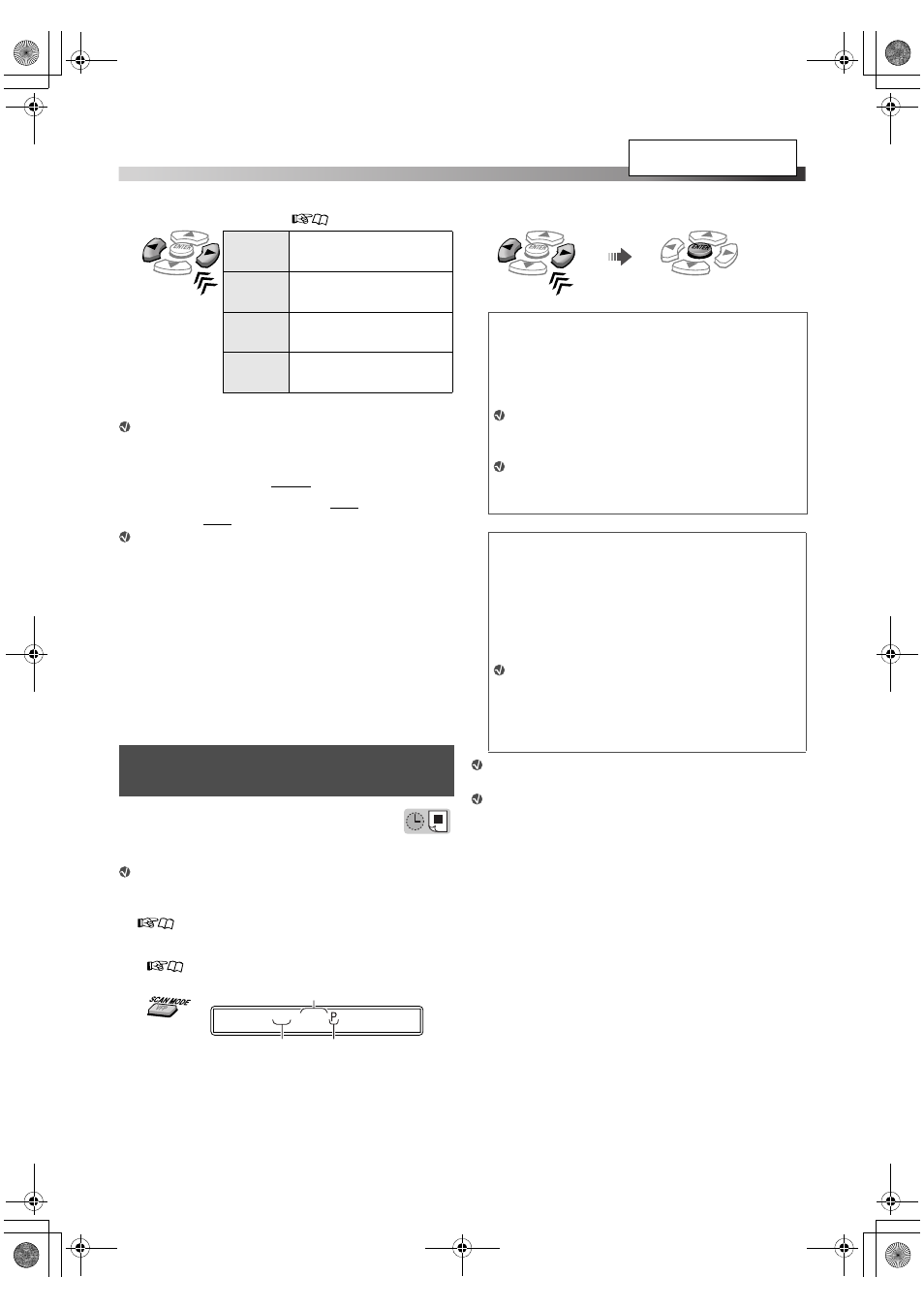

15

4

Select an appropriate audio input according to
the audio connection. (

9)

You can select the following settings for each source
(underlined items are the initial settings for each
source):
– “VIDEO1”: 5.1CH*

2

, COAX*

3

and OPT*

3

– “VIDEO2”: 2CH, COAX*

3

and OPT*

3

– “VIDEO”: 2CH and OPT
If your System is the TH-D70, make the audio input
setting for both “VIDEO1” and “VIDEO2.”

*

1

“AIN.1:” or “AIN.2:” appears for TH-D70, and “AIN.” for
TH-D50.

*

2

TH-D70 only: When the speaker position mode is set to
“S.SPK F,” “5.1CH” cannot be selected.

*

3

TH-D70 only: It is not possible to select the same audio
input setting for “VIDEO1” and “VIDEO2.” For example,
when “COAX” is assigned to “VIDEO1,” it cannot be
selected for “VIDEO2.”

Select the color system and scanning mode for
the sources “DVD” and “USB” according to the
type of TV and to connection method.

To use the progressive scanning mode, connect a
TV supporting progressive video signals to the HDMI
MONITOR OUT terminal or COMPONENT jacks.
(

8)

1

Select “DVD” or “USB” as the source.
(

12)

2

3

Select an appropriate color system and
scanning mode, then confirm the selection.

You can get better picture quality in the progressive
scanning than in the interlaced scanning.
When the color system or scanning mode does not
correspond to that of the TV, the picture is not
displayed normally.

Selecting the color system and

scanning mode

2CH

For connection via the
AUDIO IN jacks

5.1CH

For connection via the
AUDIO MULTI IN jacks

COAX

For connection via the
COAXIAL jack

OPT

For connection via the
OPTICAL terminal

NT

4 8 0

«

Hold

Scanning mode
I: Interlaced
P: Progressive

Color system

NT: NTSC

PAL: PAL

The number of scanning lines

• When connecting the TV via the HDMI MONITOR

OUT terminal, the following items are selectable:
AUTO, NT 480P, NT 720P, NT 1080I, PAL 576P,
PAL 720P and PAL 1080I
– Normally select “AUTO.”

When “AUTO” is selected, the System
automatically emits the video signal to get the
best picture quality on your TV.
The HD indicator lights when the System is
emitting “720P” (NT/PAL) or “1080I” (NT/PAL)
video signals.

• When connecting the TV via COMPONENT jacks,

S-VIDEO or VIDEO jack, the following items are
selectable:
NT 480I, NT 480P, PAL 576I and PAL 576P
– When connecting the TV via the S-VIDEO or

VIDEO jack, selecting a progressive scanning
mode does not affect the picture.

If another TV is connected through the HDMI
MONITOR OUT terminal, you cannot change
the color system and scanning mode for the TV
connected through the COMPONENT jacks, S-
VIDEO or VIDEO jack.

Select

Confirm

Sound and monitor settings

See page 13 for button
locations.

TH-D70D50[UJ].book Page 15 Friday, June 1, 2007 1:42 PM
