DISTORTION ADJ.
Compensates the picture
distortion, tilt, and the color
heterogeneity caused by the
geomagnetic influence.
Ⅵ PARALLELOGRAM
Compensates the parallelogram picture distortion.
• –20 O 00 O +20
–: Moves the upper side of the picture to the right, and the
lower side to the left.
+: Moves the upper side of the picture to the left, and the
lower side to the right.
Ⅵ TRAPEZOID
Compensates the trapezoid picture distortion.
• –20 O 00 O +20
–: Enlarges the upper side of the picture.
+: Reduces the upper side of the picture.
Ⅵ ROTATION
Compensates a picture tilt.
• –31 O 00 O +31
–: Turns the picture clockwise.
+: Turns the picture counterclockwise.
Ⅵ PURITY
According to the location of the monitor, there may be
the color heterogeneity around the rim of the screen
caused by the geomagnetic influence.
You can avoid this color heterogeneity with this
function decreasing the geomagnetic influence.
• –31 O 00 O +31

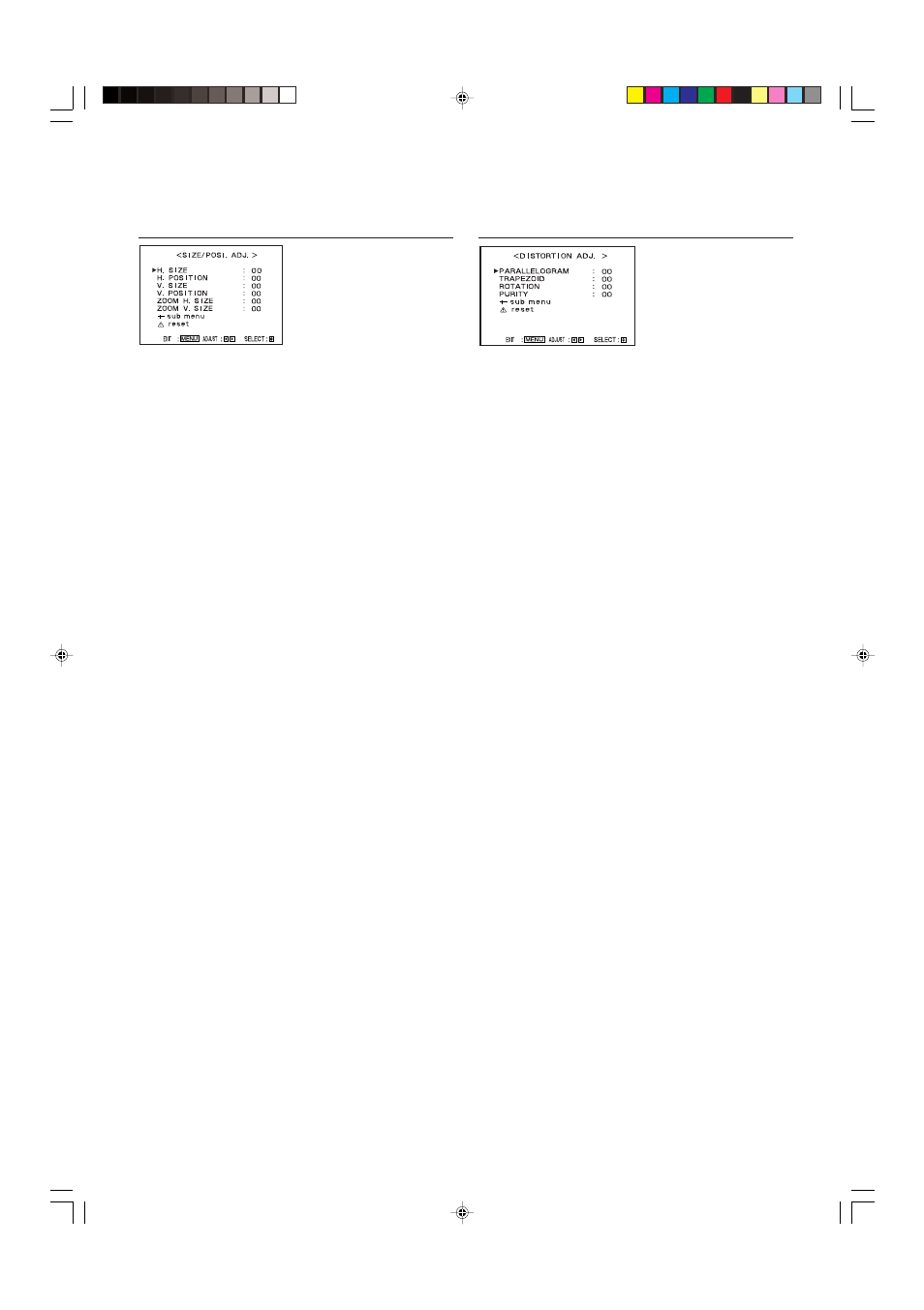

SIZE/POSI. ADJ.
Adjusts the size or position
of the picture.
• Can also be used to adjust
the zoomed picture size.
Ⅵ H. SIZE
Adjusts the horizontal screen size.
• –20 O 00 O +20 (*)
–: Reduces the screen size horizontally.
+: Enlarges the screen size horizontally.
* You can adjust this item with in the range between 00 and +20
during the under-scan mode.
Ⅵ H. POSITION
Adjusts the horizontal screen position.
• –20 O 00 O +20
–: Moves the screen to the left.
+: Moves the screen to the right.
Ⅵ V. SIZE
Adjusts the vertical screen size.
• –20 O 00 O +20
–: Reduces the screen size vertically.
+: Enlarges the screen size vertically.
Ⅵ V. POSITION
Adjusts the vertical screen position.
• –10 O 00 O +10
–: Moves the screen down.
+: Moves the screen up.
Ⅵ ZOOM H. SIZE
• – 20 O 00
Ⅵ ZOOM V. SIZE
• –20 O 00 O +20
NOTE:
ZOOM H. SIZE and ZOOM V. SIZE are displayed only when the
ZOOM function is operated. ZOOM H. SIZE adjusts the screen
size horizontally, and ZOOM V. SIZE adjusts it vertically when the
ZOOM is operated.
