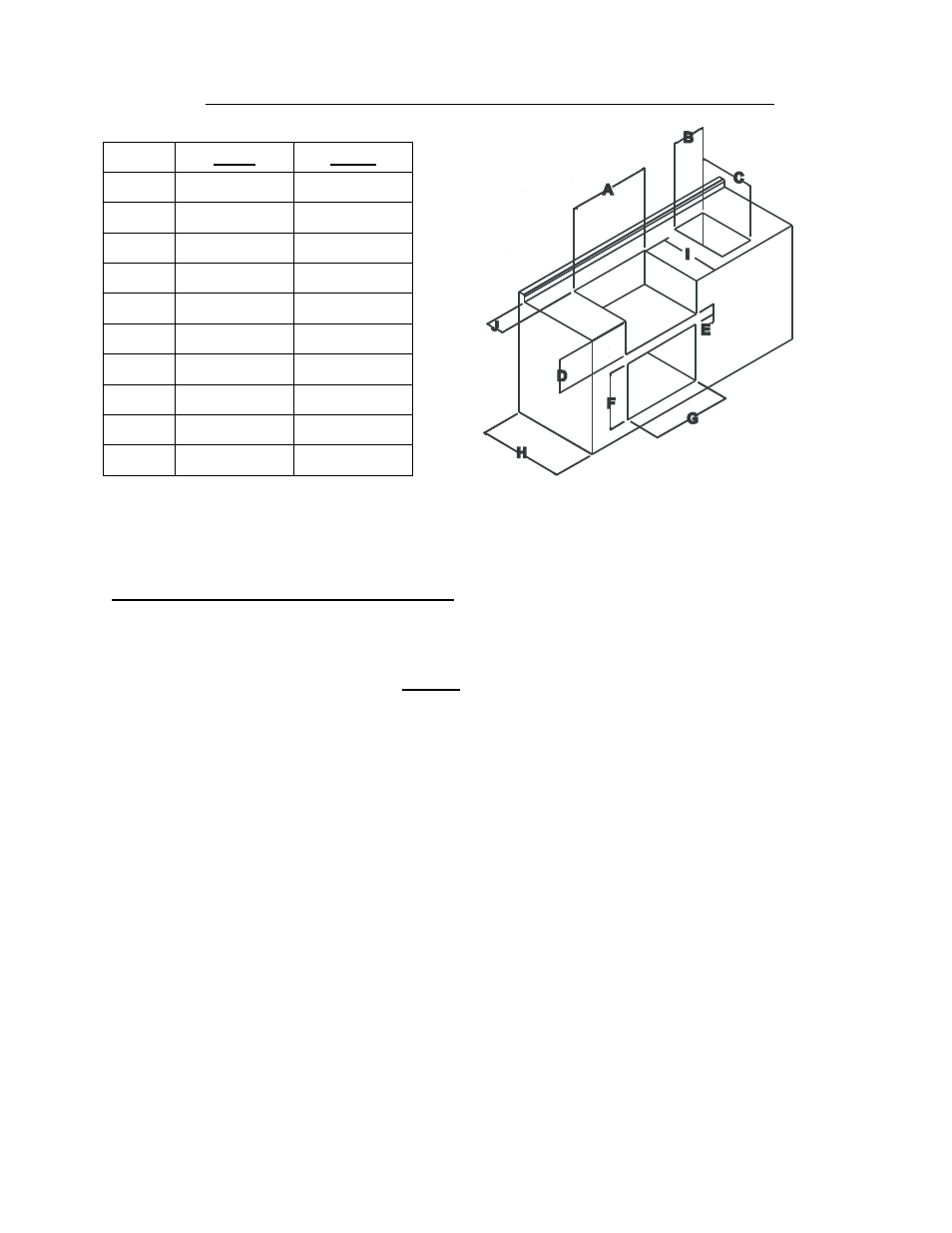

INSTALLING 700BI / 50BI INTO A NON COMBUSTIBLE ISLAND. 8
N S ARE IN INCHES:
BI
ALL DIME SION
700 850 BI
A .25 .25 32 39
B 5” 9.25” 9.2
C 7” 17” 1
D 5” 25” 10.2 10.
E ” 3” 3
F 17.25” 17.25”
G 24.25” 24.25”
H 24” min. 24” min.
I 18.25” 18.25”
J 5.5” min 5.5” min
Note: All measurements are FINISHED cut out dimensions. Consult your dealer if you have any
questions about this!
Electrical Requirements For Outdoor Kitchens
1. A receptacle box is required on the face of the grill island structure to plug the rotisserie motor into. It is
ideal to locate this box just to the right of the grill cut out in the face of the cabinet.
3. A second receptacle box is required INSIDE the grill cabinet in order to PLUG in the interior grill lights
used on SOME models. Please consult your dealer to see if your grill model is equiped for lights and
requires this additional electrical receptacle box.
9
