ENGLISH
9

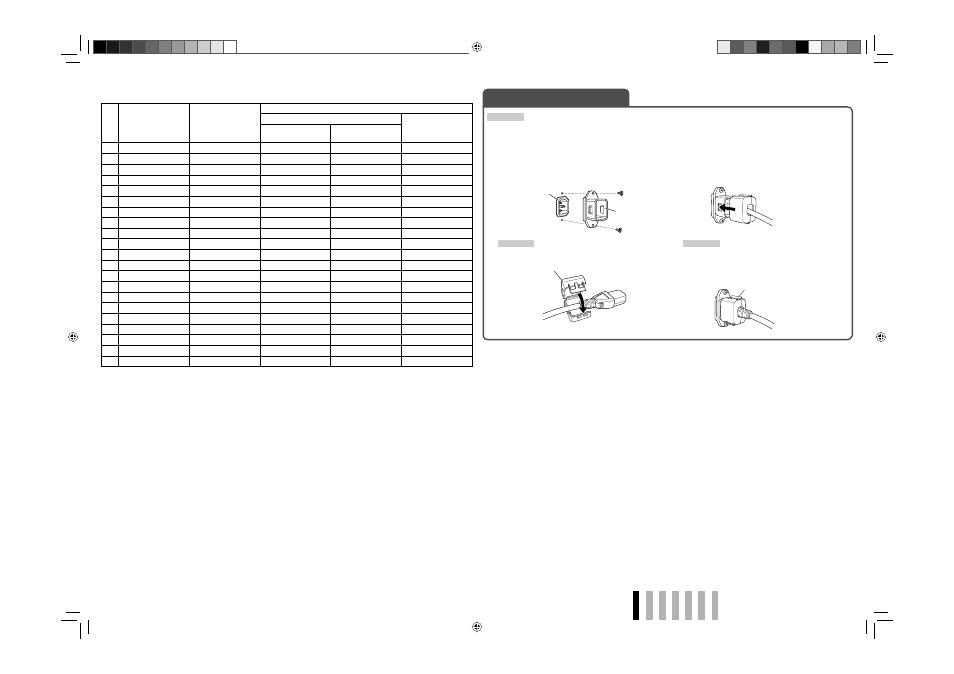

Attaching the Power Cord Holder
CAUTION
Depending on the type of external batteries, the cover may not be attached to the case.
• The provided power cord holder prevents accidental disconnection of the AC power cord from the AC IN
terminal.
• The power cord holder consists of two parts, a case and a cover.
1
CAUTION
Use only the provided screws.
2
3
CAUTION
Make sure the plug will not be pulled out after the
cover is attached to the case.
• To detach the cover, release the tab.
7 Available signals
No. Signal name
Signal format shown
in the status display
( ☞ page 7)
Input terminal
VIDEO/COMPONENT
E. AUDIO HD/
SD SDI* 1 VBS
(Composite)
Y/P B /P R
(Analog component)
1 NTSC* 2 NTSC √ — —
2 PAL PAL √ — —
3 B/W50 NTSC √ — —
4 B/W60* 2 PAL √ — —
5 480/59.94i* 2 480/60i — √ √
6 576/50i 576/50i — √ √
7 480/59.94p 480/60p — √ —
8 576/50p 576/50p — √ —
9 720/60p 720/60p — √ √
10 720/59.94p 720/60p — √ √
11 720/50p 720/50p — √ √
12 1080/60i 1080/60i — √ √
13 1080/59.94i 1080/60i — √ √
14 1035/60i 1080/60i — √* 3 √* 3
15 1035/59.94i 1080/60i — √* 4 √* 4
16 1080/50i 1080/50i — √ √
17 1080/30psF 1080/60i — √* 3 √* 3
18 1080/25psF 1080/50i — √* 5 √* 5
19 1080/29.97psF 1080/60i — √ √
20 1080/24psF 1080/24psf — √ √
21 1080/23.97psF 1080/24psf — √ √
√: Acceptable
—: Not acceptable
* 1 Compatible with EMBEDDED AUDIO signals
* 2 When the number of vertical scanning lines of the incoming signal is 483, the picture is displayed with 480 lines.
* 3 The signal is recognized as 1080/60i.
* 4 The signal is recognized as 1080/59.94i.
* 5 The signal is recognized as 1080/50i.
• Analog component signals are compatible with Y on sync signals.
AC IN terminal
Cover
Tab
Case
