18 Specifications (cont.)
VESA mounting holes
(8-M4, depth: 10 mm)

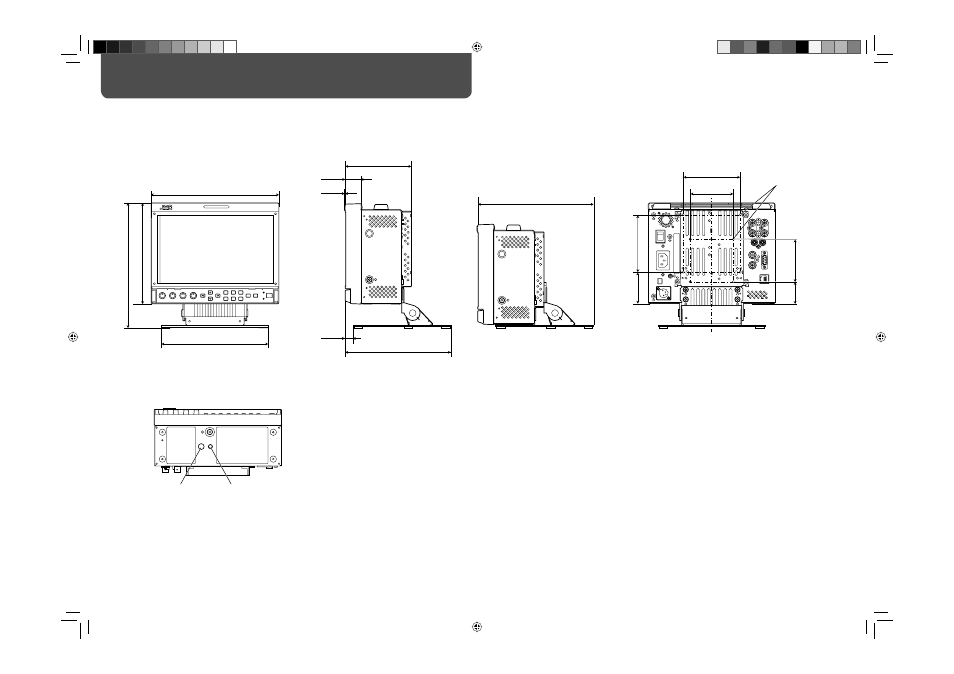

7 Dimensions
Unit: mm
222.4
218*/181**
* at the higher position
** at the lower position
176
186
116
202
100
75
37.5
• When the stand is attached to the
higher position.
• When the stand is attached to the
lower position.
27.5
1.5
13
75
100
55
tapped hole (1/4 ˝ ) tapped hole (3/8 ˝ )
185
