How To Attach The Core Filter
Attach the core filter(s) to the provided AC Adapter’s
cord, S-Video/Audio/Video/Editing cable and USB
cable. The core filter reduces interference.

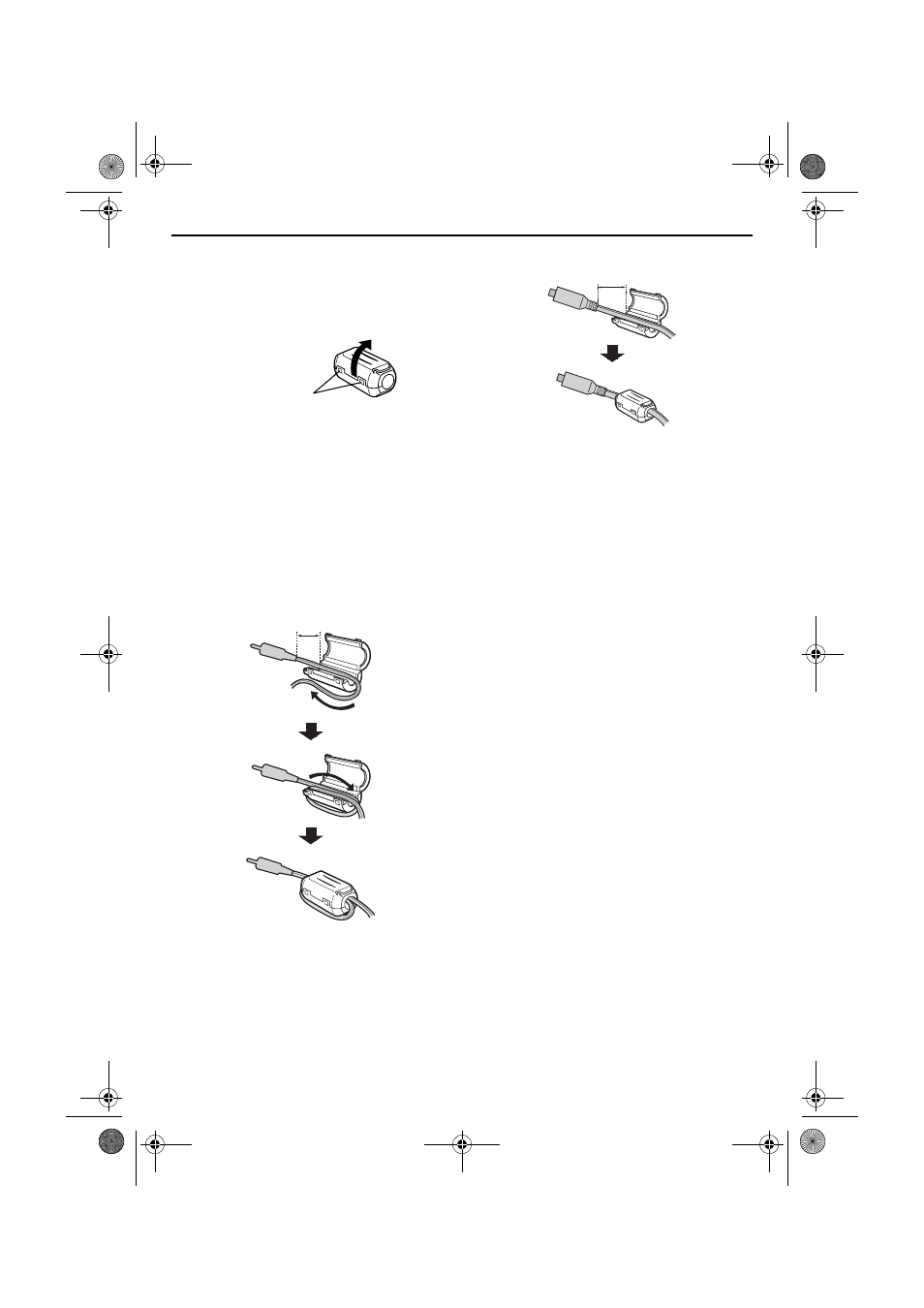

1
Release the stoppers on both ends of the core
filter.
2
Run the cable through the core filter, leaving
approx. 3 cm of cable between the cable plug
and the core filter. If using the AC Adapter’s cord
or USB cable, be sure to wind the cable once
around the outside of the core filter as shown in
the illustration.
● Wind the cable so that it is not slack.
3
Close the core filter until it clicks shut.
NOTES:
● Take care not to damage the cable.
● When connecting cables, attach the end with the
core filter to the camcorder.
For the AC Adapter’s cord and USB cable
For the S-Video/Audio/Video/Editing cable
Stopper
3 cm
Wind once
3 cm
