Page 15
Installation Instructions
OUZXMAG,0001BEF
–19–13NOV03–1/3

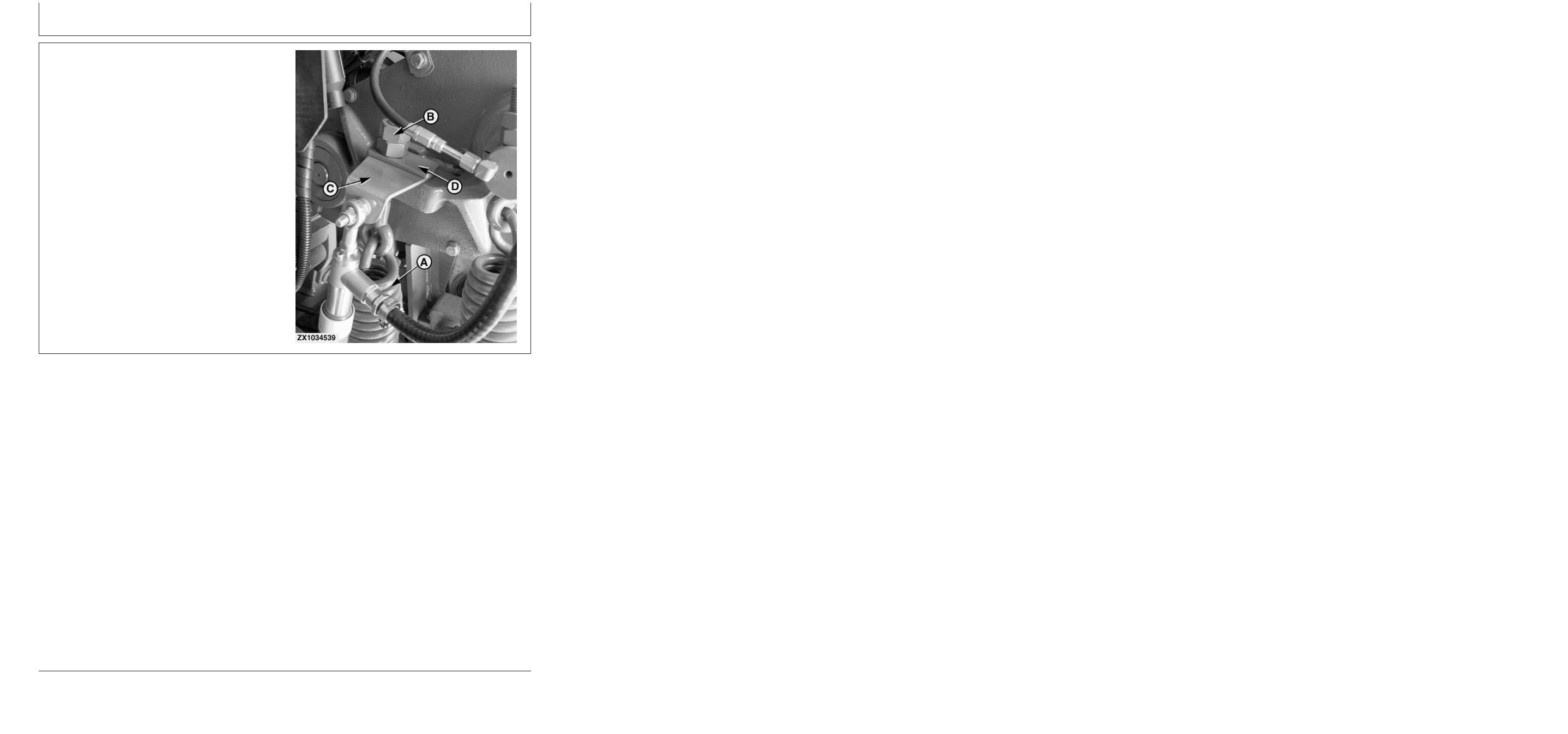

Install Feed Roll Potentiometer AZ63280
ZX1034539
–UN–16NOV03
A—Feed roll spring
B—Eye-bolt
C—Plate Z72204
D—Holder AZ57754
Install Upper Plate Z72204 and Holder AZ57754
1. Remove right-hand feed roll spring (A) by loosening
eye-bolt (B).
2. Install plate Z72204 (C) and holder AZ57754 (D) in the
free holes.
3. Put the eye-bolt (B) back in place and tighten the
spring to its original setting.
Continued on next page
Z103757 (13DEC06)
13
Installation Instructions
011507
PN=15
