B

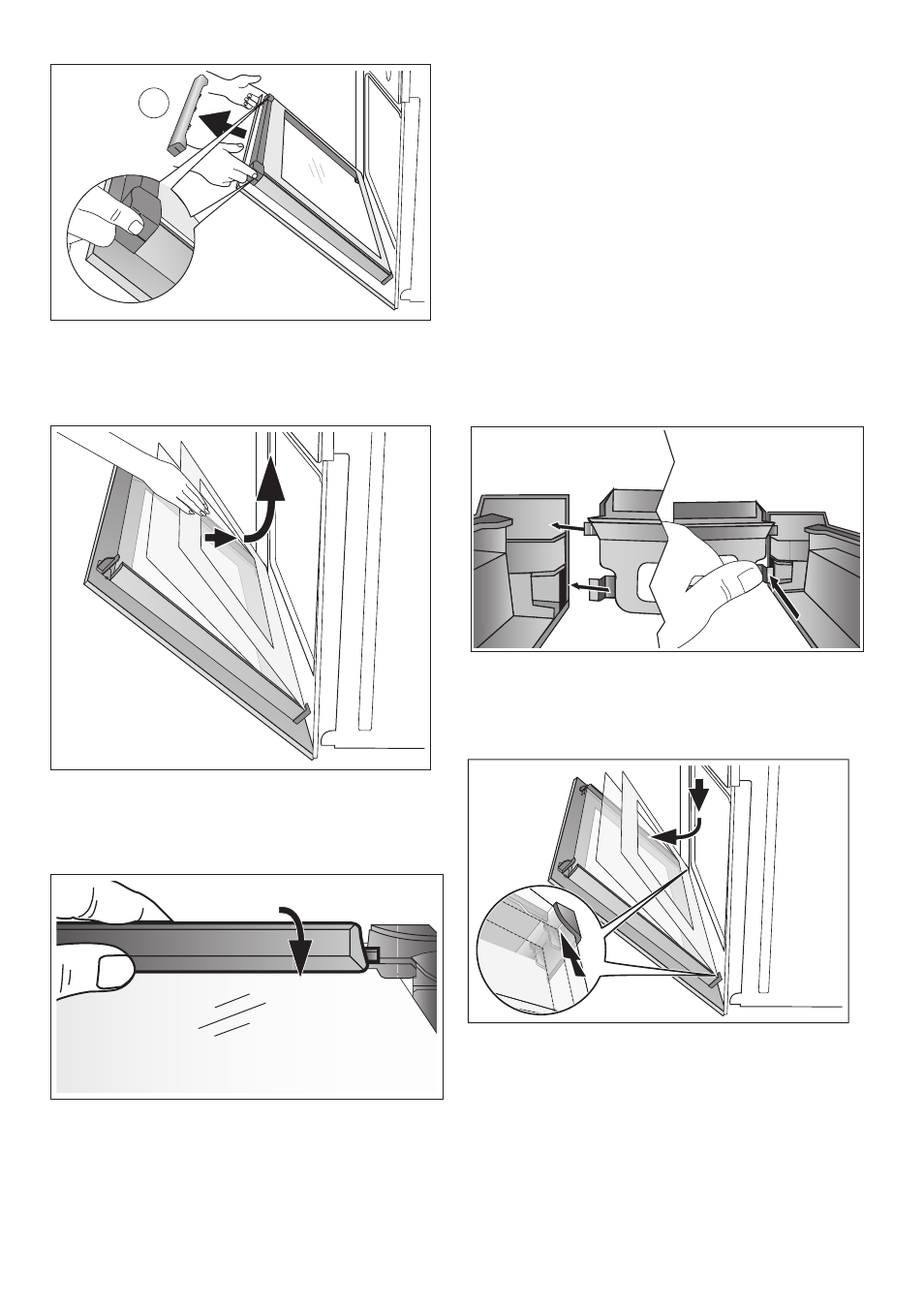

5. Hold the upper edge of the door glass
and take it out of the guide by pulling it
upwards.
6. Tip the water collecting channel towards
the door glass and lift upwards to
remove from the guide.
Cleaning the door glass and the
water collecting channel
Clean the door glass panels and the water
collecting channel thoroughly with a solution
of water and washing-up liquid. Then dry
them carefully.
Inserting door glass panels and
the water collecting channel
1. Insert the snap-in hook of the water
collecting channel sideways into the
guide. Apply some pressure from above
to snap in hook on the other side.
2. From above, insert the door glass at an
angle into the door profile at the bottom
edge of the door and lower it.
3. Take hold of the door trim (B) at each
side, position it on the inside edge of the
door and push the door trim (B) onto
the upper edge of the door.
27
